QUANTUM™ HD COMPRESSOR CONTROL PANEL
Page 104
MAINTENANCE

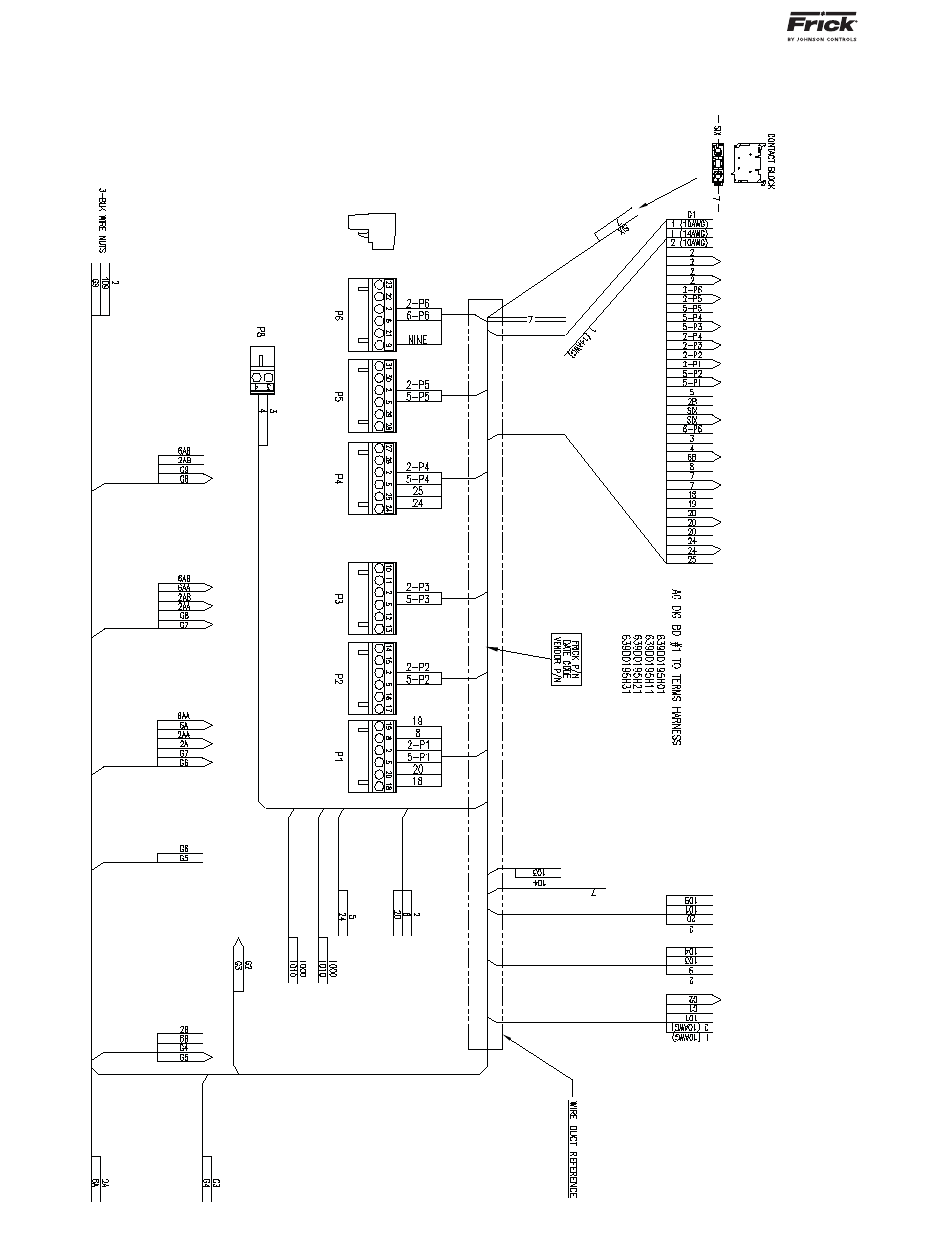

HD A. C. POWER HARNESS (DIGITAL BOARD 2)
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
