Battery

Revision A
Installation: Battery
To install the battery, follow this procedure.
1. Press the TEST button on the battery. The number of charge level
indicator LEDs that illuminate indicates the approximate charge
remaining in the battery.
Illuminated LEDs
Four
Three
Two
One steady
One flashing
2. Open the battery door by gently pulling on the battery door pull tab.
3. If a battery is present, gently pull the battery strap to remove the
existing battery.

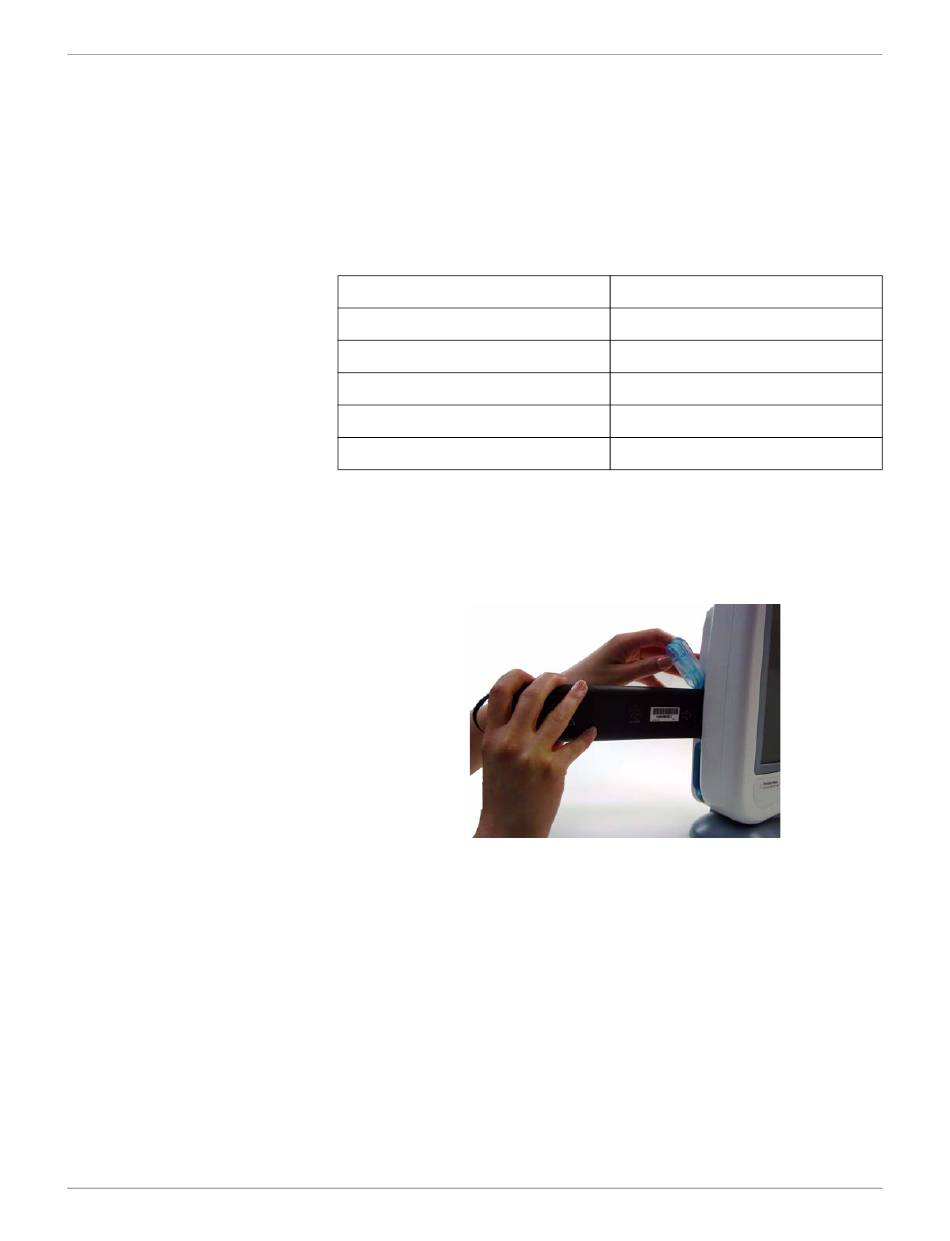

4. Insert the battery.
a. Insert the connector end of the battery into the battery slot.
Verify the connector ends are facing the back of the monitor and
the Test LEDs on the battery are facing the front of the monitor.
b. Push the battery firmly into the slot.
5. Gently push the battery door closed until it "snaps" into position. The
battery door will not close if the battery is not fully inserted into the
battery slot.
6. Confirm that the battery gauge displays.
7. Verify the green or amber battery Charging Status indicator is
illuminated, if on AC power.
Transport Pro
2012659-042
Percentage of Full Charge Capacity
75 to 100 percent
50 to 74.9 percent
25 to 49.9 percent
10 to 24.9 percent
Less than 10 percent
