Back Plastic Assembly

8-6
Disassembly: Back Plastic Replacement

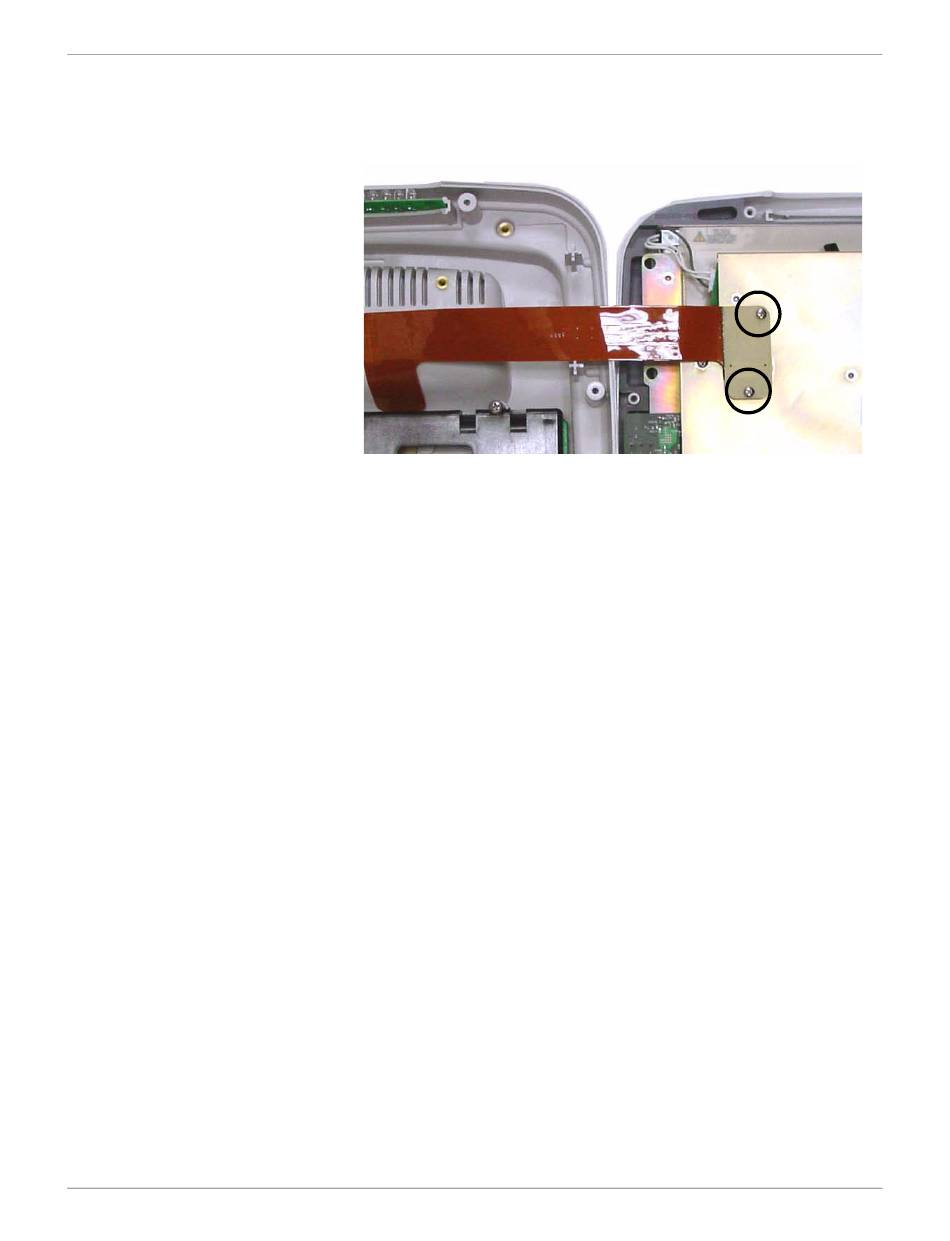

10. Remove the two screws to disconnect the flex circuit cable from the
main processor PCB shield.
To assemble the back plastic, follow this procedure.
1. Reconnect the flex circuit cable to the main processor PCB shield
with the two screws (PN 402440-002).
2. Reconnect the battery harness to the main processor PCB.
3. Reconnect the alarm light cable harness to the alarm light PCB.
4. Reposition the alarm light cover.
5. Secure the back plastic to the front plastic with the six screws (PN
402440-002).
6. Attach the TRAM chute to the foot with the screw (PN 2000546-005).
7. Insert the TRAM module into the TRAM chute.
8. Insert the batteries in the monitor.
