Disassembly: FRU Replacement
keypad PCB.

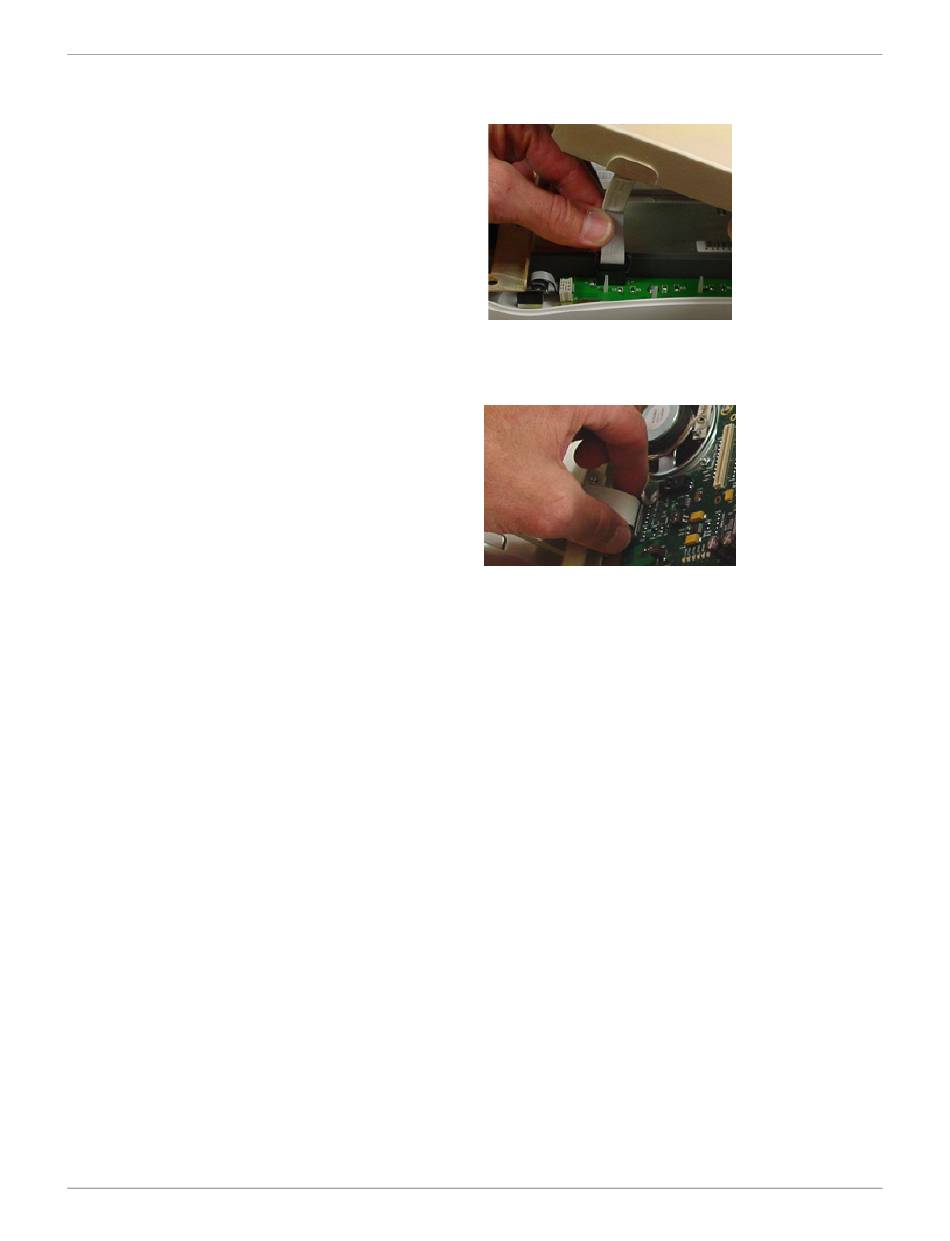

d. Pull out the display friction connector from the main processor
PCB. Do not pull on the ribbon cable.
e. Remove the main processor PCB and set it aside.
f. Place the new display face-down with the TRIM KNOB control
hanging over the edge of the work surface.
3. Remove the two screws from the shipping bracket on the new
display. Discard the bracket and screws.
4. Reinstall the main processor PCB. Be sure to reconnect the backlight
friction, keypad PCB and display friction connectors to the main
processor PCB.
5. Secure the main processor PCB to the display assembly with the four
screws (PN 2000540-007).
6. Assemble the back plastic. See
Transport Pro
2012659-042
"Back Plastic Assembly"
631A
632A
on page 8-6.
