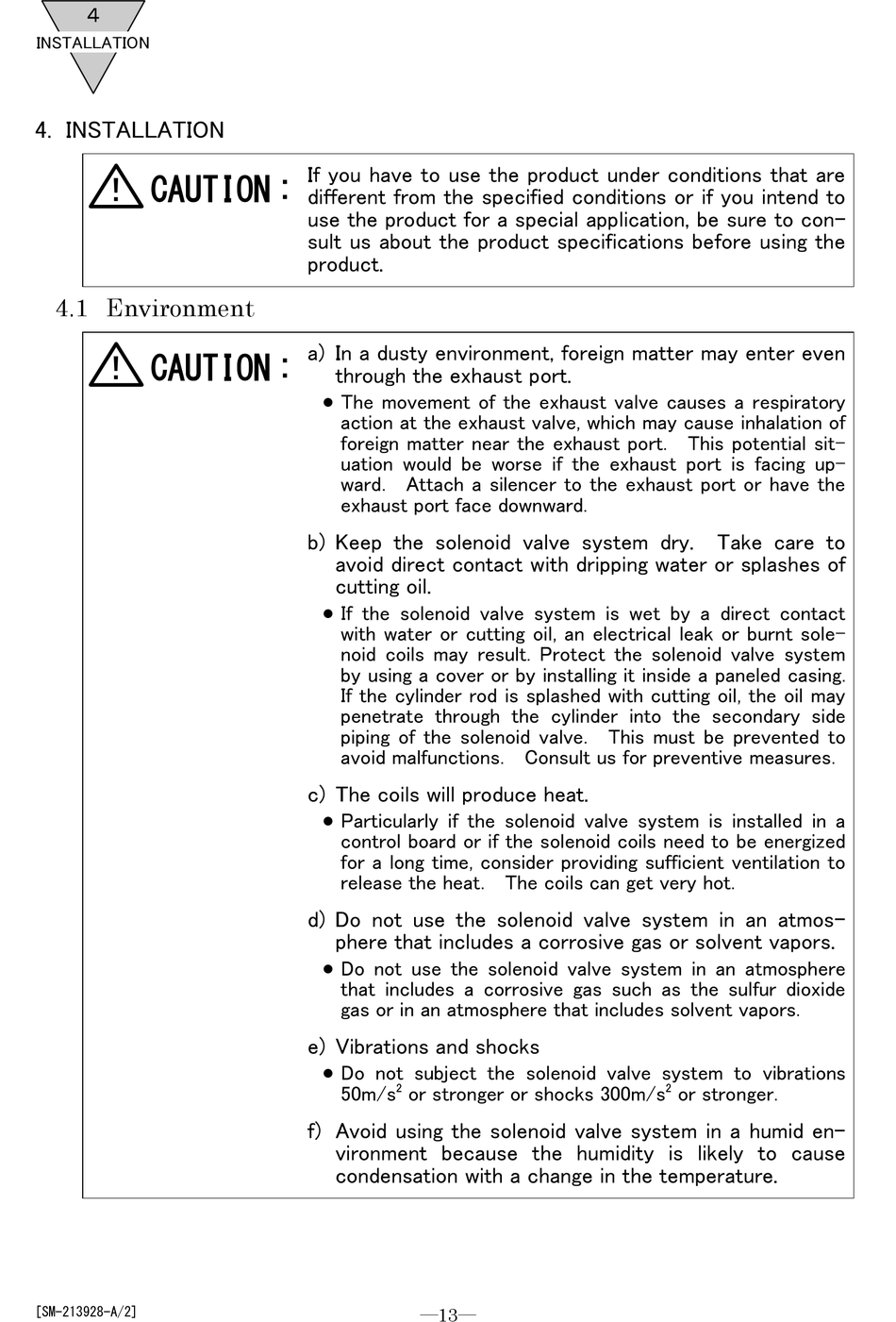

INSTALLATION

4.  INSTALLATION

CAUTION  :
4.1 Environment

CAUTION  :
[SM-213928-A/2]
If you have to use the product under conditions that are
different from the specified conditions or if you intend to
use the product for a special application, be sure to con-
sult us about the product specifications before using the
product.
a)  In a dusty environment, foreign matter may enter even
through the exhaust port.
The movement of the exhaust valve causes a respiratory
action at the exhaust valve, which may cause inhalation of
foreign matter near the exhaust port.    This potential sit-
uation  would  be  worse  if  the  exhaust  port  is  facing  up-
ward.    Attach a silencer to the exhaust port or have the
exhaust port face downward.
b)  Keep  the  solenoid  valve  system  dry.    Take  care  to
avoid direct contact with dripping water or splashes of
cutting oil.
If  the  solenoid  valve  system  is  wet  by  a  direct  contact
with water or cutting oil, an electrical leak or burnt sole-
noid  coils  may  result.  Protect  the  solenoid  valve  system
by using a cover or by installing it inside a paneled casing.
If the cylinder rod is splashed with cutting oil, the oil may
penetrate  through  the  cylinder  into  the  secondary  side
piping  of  the  solenoid  valve.    This  must  be  prevented  to
avoid malfunctions.    Consult us for preventive measures.
c)  The coils will produce heat.
Particularly  if  the  solenoid  valve  system  is  installed  in  a
control board or if the solenoid coils need to be energized
for a long time, consider providing sufficient ventilation to
release the heat.    The coils can get very hot.
d)  Do  not  use  the  solenoid  valve  system  in  an  atmos-
phere that includes a corrosive gas or solvent vapors.
Do  not  use  the  solenoid  valve  system  in  an  atmosphere
that  includes  a  corrosive  gas  such  as  the  sulfur  dioxide
gas or in an atmosphere that includes solvent vapors.
e)  Vibrations and shocks
Do  not  subject  the  solenoid  valve  system  to  vibrations
2
50m/s
 or stronger or shocks 300m/s
f)  Avoid using the solenoid valve system in a humid en-
vironment  because  the  humidity  is  likely  to  cause
condensation with a change in the temperature.
―13―
2
 or stronger.
