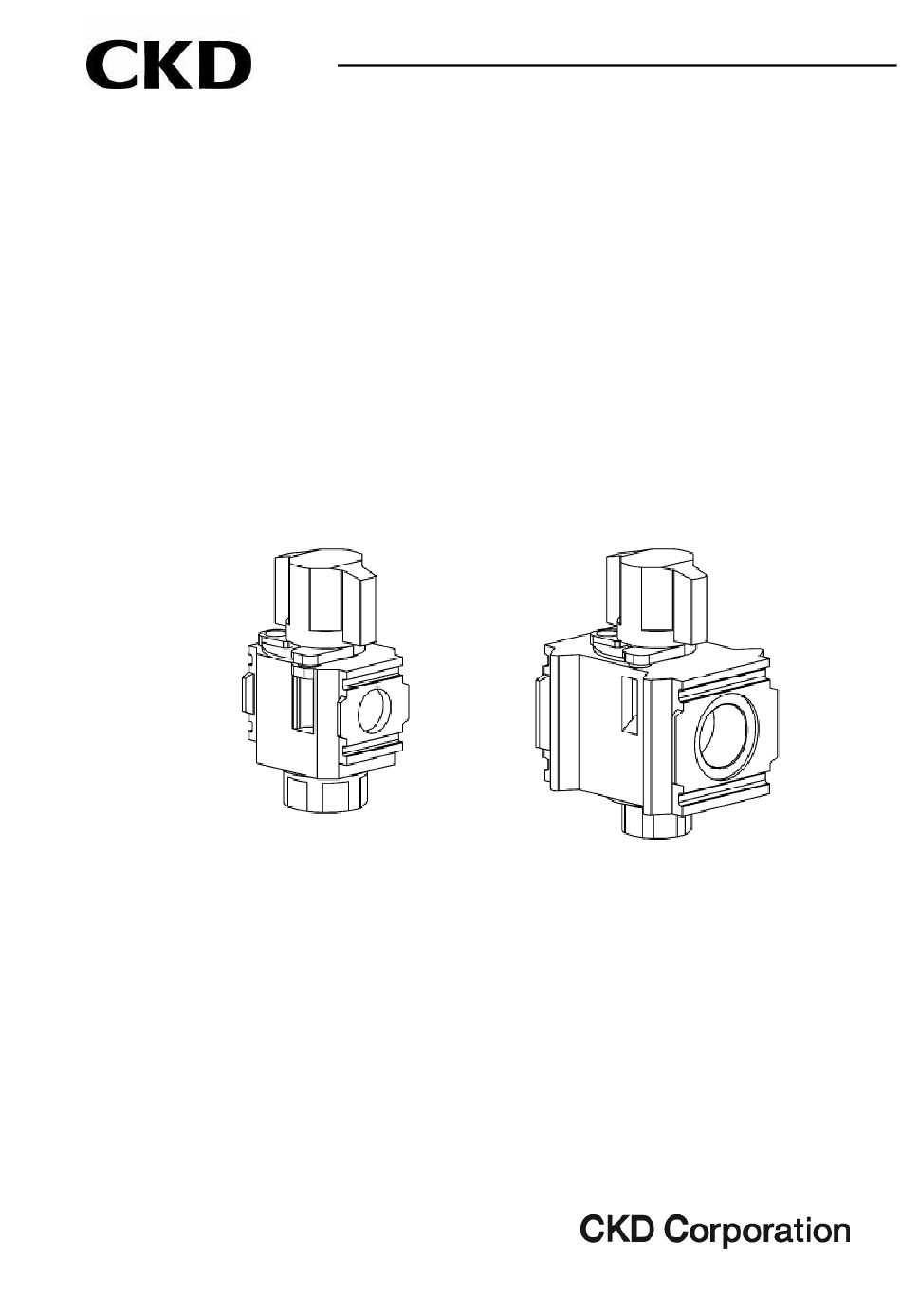

ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ

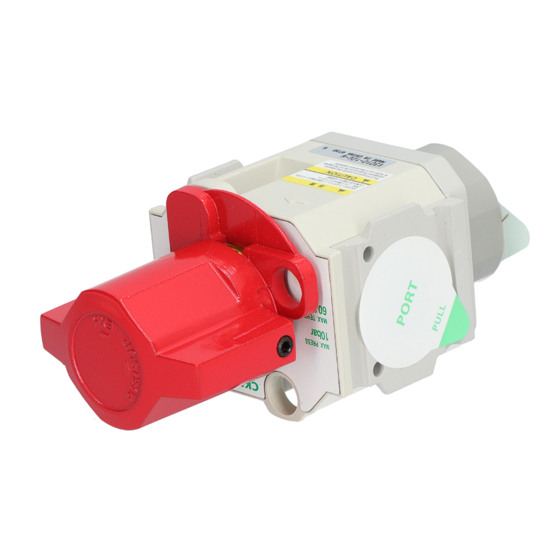

Shut-off valve with lock hole
Shut-off valve with lock hole
Shut-off valve with lock hole
Shut-off valve with lock hole
● Please read this instruction manual carefully before using
this product, particularly the section describing safety．
● Retain this instruction manual with the product for
further consultation whenever necessary．
V3010-W
V3010-W
V3010-W
V3010-W
V6010-W
V6010-W
V6010-W
V6010-W
SM-50696-A
SM-50696-A
SM-50696-A
SM-50696-A
Ver. 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CKD V3010-W
Summary of Contents for CKD V3010-W
- Page 1 SM-50696-A ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ Shut-off valve with lock hole Shut-off valve with lock hole Shut-off valve with lock hole Shut-off valve with lock hole V3010-W V3010-W V3010-W V3010-W V6010-W V6010-W V6010-W V6010-W ● Please read this instruction manual carefully before using this product, particularly the section describing safety．...
-
Page 2: Safety Precautions
２．Use this product within its specifications. ２．Use this product within its specifications. Consult with CKD for details when using the product beyond the unique specification range, outdoors, or in the following conditions or environment: Additionally, the product must not be modified or machined. - Page 3 If any failure for which CKD CORPORATION is recognized to be responsible occurs within the above warranty period, a substitute or necessary replacement parts shall be provided free of charge, or the product shall be repaired free of charge at the plant of CKD CORPORATION. However, the guarantee excludes following cases: ①...
- Page 4 SM-50696-A SM-50696-A SM-50696-A SM-50696-A INDEX Shut-off valve with lock hole V3010-W V6010-W 1.Unpacking 2.Installation 2.1 Installation environment 2.2 Installation 2.3 Piping 3.Proper operation 4.Maintenance 4.1 Inspection 4.2 Disassembly and assembly 5.Troubleshooting 6.Repair parts 7.Product specifications and designation 7.1 Product specifications 7.2 Product designation...
- Page 5 SM-50696-A SM-50696-A SM-50696-A SM-50696-A １．Unpacking １．Unpacking １．Unpacking １．Unpacking To prevent foreign matter from entering the product, unpack ! CAUTION the product just before piping starts. ■ Make sure that the model number indicated on the product matches with what you have ordered. ■...
- Page 6 SM-50696-A SM-50696-A SM-50696-A SM-50696-A ２．３ Piping 1) EXH port is exclusively for mounting a silencer. ! WARNING Tightening torque shall be 3N・m or less. (Force when tightening with fingers.) When removing the silencer, hold the bottom plug with a tool and remove the silencer. 1) Flush the air piping to be used sufficiently before connecting the regulator.
- Page 7 SM-50696-A SM-50696-A SM-50696-A SM-50696-A ■ When connecting the piping, tighten with proper tightening torque. Observe this item to avoid air leakage and thread breakdown. Tighten the thread first by hand, then with a tool. Port size Tightening torque N･m Rc1/4 6～8 Rc3/8 13～15 Rc1/2...
- Page 8 SM-50696-A SM-50696-A SM-50696-A SM-50696-A 1) Confirm the circuit and the working fluid. ! CAUTION Flowing fluids that contain solid particles or those outside of specification may cause the product to malfunction. To prevent solid particles from entering, connect a filter to the primary side of the product. 2) If this product is to be installed on the primary side of a regulator or a filter regulator, the reverse regulator (R※100) or the reverse filter regulator (W※100) must be selected.
- Page 9 SM-50696-A SM-50696-A SM-50696-A SM-50696-A 3）Key lock The body and knob of this product comprises a hole for a lock to fix the knob at the EXH position. This lock can prevent mishandled pneumatic pressure to flow, preventing second disaster. This product accords with the provisions of OSHA(US Occupational Safety and Health Agency). ４．Maintenance ４．Maintenance ４．Maintenance...
-
Page 10: Troubleshooting
６．Repair Parts ６．Repair Parts ■V3010-W Knob Body Spool assembly Name Model Part Spool assembly Bottom spring Spool assembly V3000-SPOOL Bottom spring O ring Bottom plug Bottom plug V3000-W-PLUG assembly O ring Bottom plug ■Please contact CKD for V6010-W - 9 -... - Page 11 SM-50696-A SM-50696-A SM-50696-A SM-50696-A 7．Product specifications and designation 7．Product specifications and designation 7．Product specifications and designation 7．Product specifications and designation ７．１ Product specifications - 10 -...
- Page 12 SM-50696-A SM-50696-A SM-50696-A SM-50696-A ７．２ Product designation - 11 -...
- Page 13 SM-50696-A SM-50696-A SM-50696-A SM-50696-A ７．３ Internal structure and parts list - 12 -...
