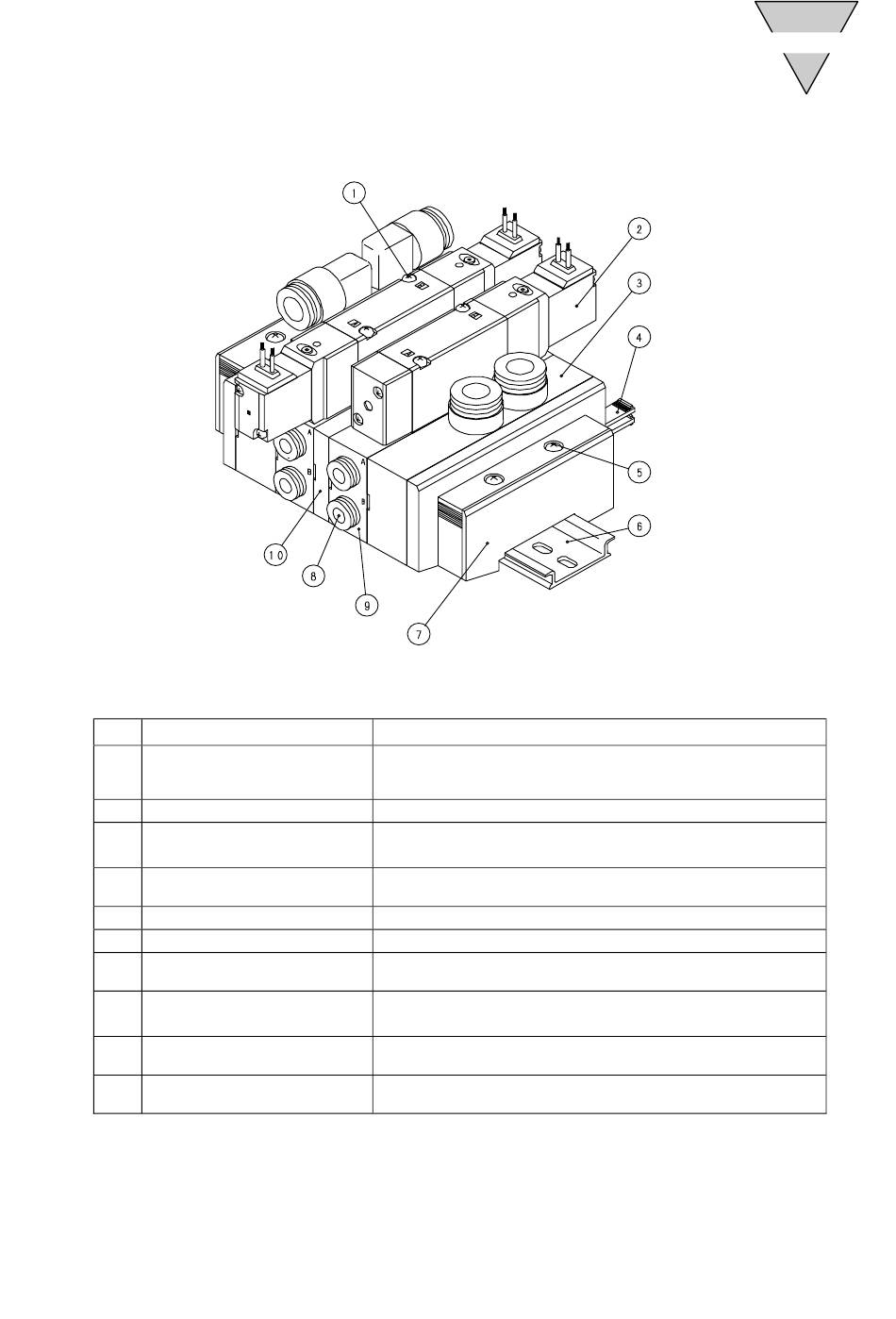

1.  PART NAME AND DESCRIPTION
No.
Valve unit mounting screw
Valve unit
Air supply or
exhaust block
Connecting key
Mounting screw
DIN rail
End block
Riping adapter
(one-touch joint)
Valve block
Partition block
Part Name
Tow mounting screws are provided for each valve unit.
They are used for mounting the valve unit to one of the
various types of bases.
A block with a supply port and an exhaust port.
The key is pushed in after the connection of the blocks
in order to secure the connection.
DIN rail on the manifold.
It has a function of common supply/exhaust flow plug-
ging.
Port P is the supply port : Port R and PR is the ex-
haust port : Port A and B is the output port.
A block of assembled solenoid valve unit and valve
block.
Shuts off the supply and exhaust as required and is
used for different pressure circuits or the like.
Description
−10−
PRODUCT
[SM-213928-A/2]
