OPERATION

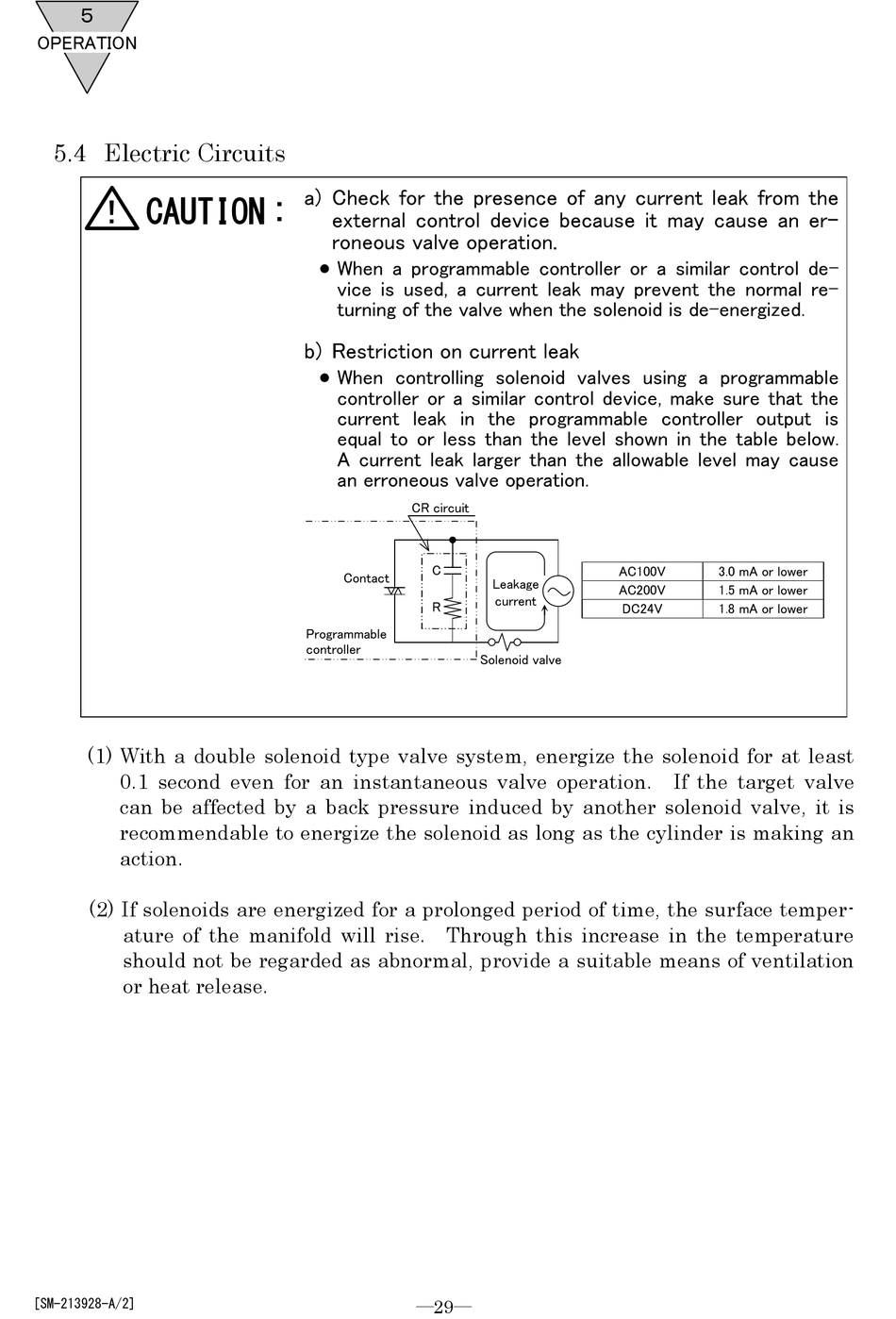

5.4 Electric Circuits


CAUTION  :
(1) With a double solenoid type valve system, energize the solenoid for at least
0.1 second even for an instantaneous valve operation. If the target valve
can be affected by a back pressure induced by another solenoid valve, it is
recommendable to energize the solenoid as long as the cylinder is making an
action.
(2) If solenoids are energized for a prolonged period of time, the surface temper-
ature of the manifold will rise. Through this increase in the temperature
should not be regarded as abnormal, provide a suitable means of ventilation
or heat release.
[SM-213928-A/2]
a)  Check  for  the  presence  of  any  current  leak  from  the
external  control  device  because  it  may  cause  an  er-
roneous valve operation.
When  a  programmable  controller  or  a  similar  control  de-
vice  is  used,  a  current  leak  may  prevent  the  normal  re-
turning of the valve when the solenoid is de-energized.
b)  Restriction on current leak
When  controlling  solenoid  valves  using  a  programmable
controller  or  a  similar  control device,  make  sure  that  the
current  leak  in  the  programmable  controller  output  is
equal  to  or  less  than  the  level  shown  in  the  table  below.
A  current  leak  larger  than  the  allowable  level  may  cause
an erroneous valve operation.
CR circuit
C
Contact
R
Programmable
controller
―29―
AC100V
Leakage
AC200V
current
DC24V
Solenoid valve
3.0 mA or lower
1.5 mA or lower
1.8 mA or lower
