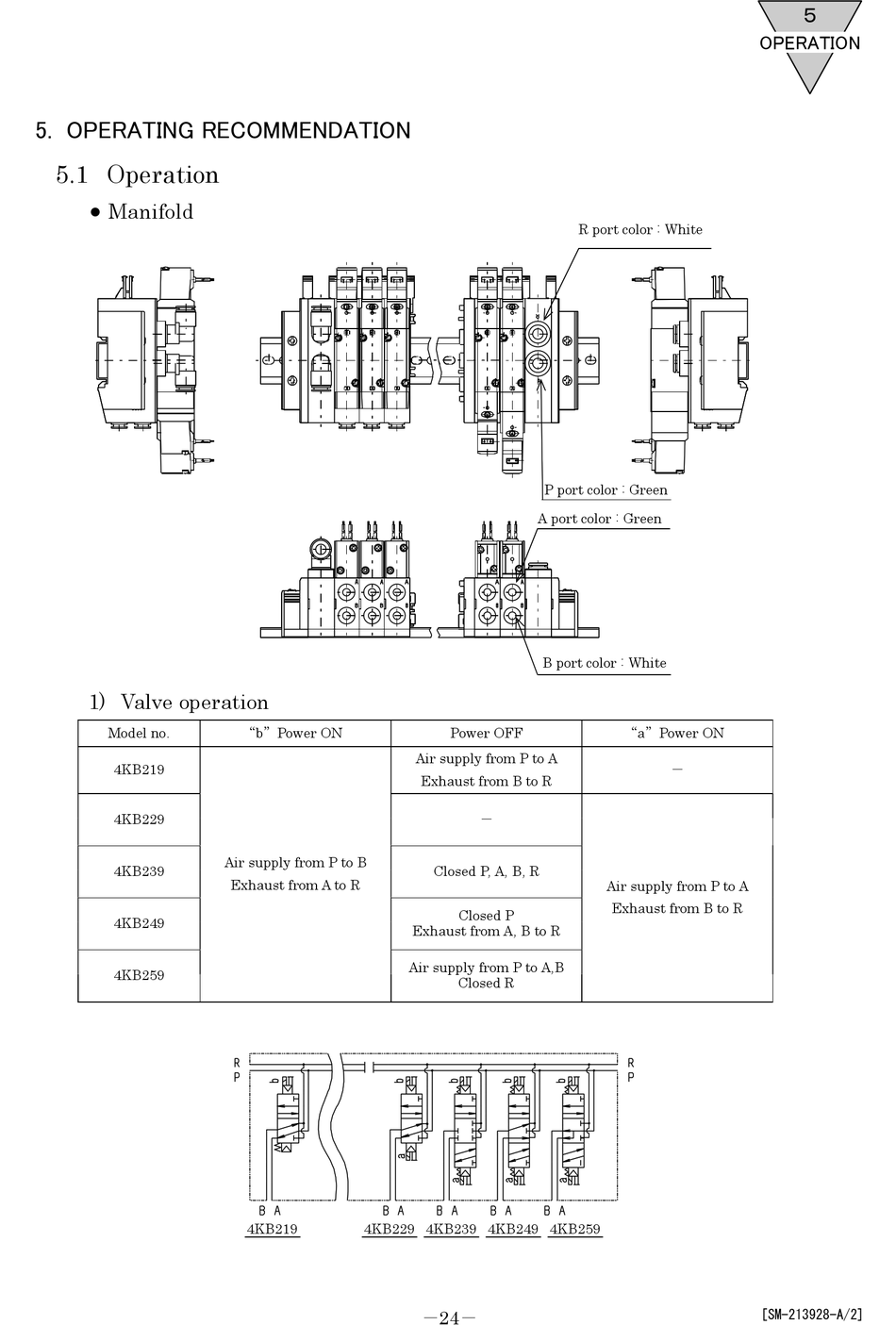

5.  OPERATING RECOMMENDATION

5.1 Operation

Manifold
1) Valve operation
Model no.
4KB219
4KB229
4KB239
4KB249
4KB259
b Power ON
Air supply from P to B
Exhaust from A to R
4KB219
4KB229
P port color : Green
A port color : Green
B port color : White
Power OFF
Air supply from P to A
Exhaust from B to R
Closed P, A, B, R
Closed P
Exhaust from A, B to R
Air supply from P to A,B
Closed R
4KB239 4KB249 4KB259
−24−
R port color : White
a Power ON
Air supply from P to A
Exhaust from B to R
OPERATION
[SM-213928-A/2]
