Vacuum switch and vacuum break
valve, etc. are unitized, so types
matching the work purpose is
selectable.
Types with analog output, 2-point
switch output, and inexpensive
analog output are available for
vacuum switch specifications.
Specifications
Descriptions
Working fluid
Working pressure range
Ambient temperature range
Lubrication
Supply valve specifications
Descriptions
Control method
Power voltage
Power consumption
Effective sectional area
Manual override
Vacuum filter specifications
Descriptions
Element
Material
Guard
Body
Filtration
30

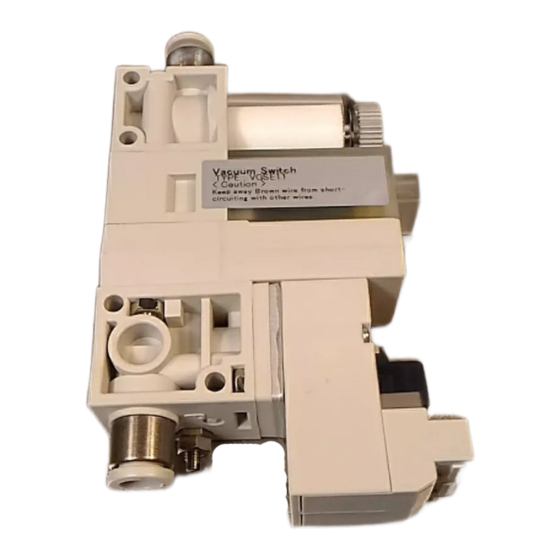

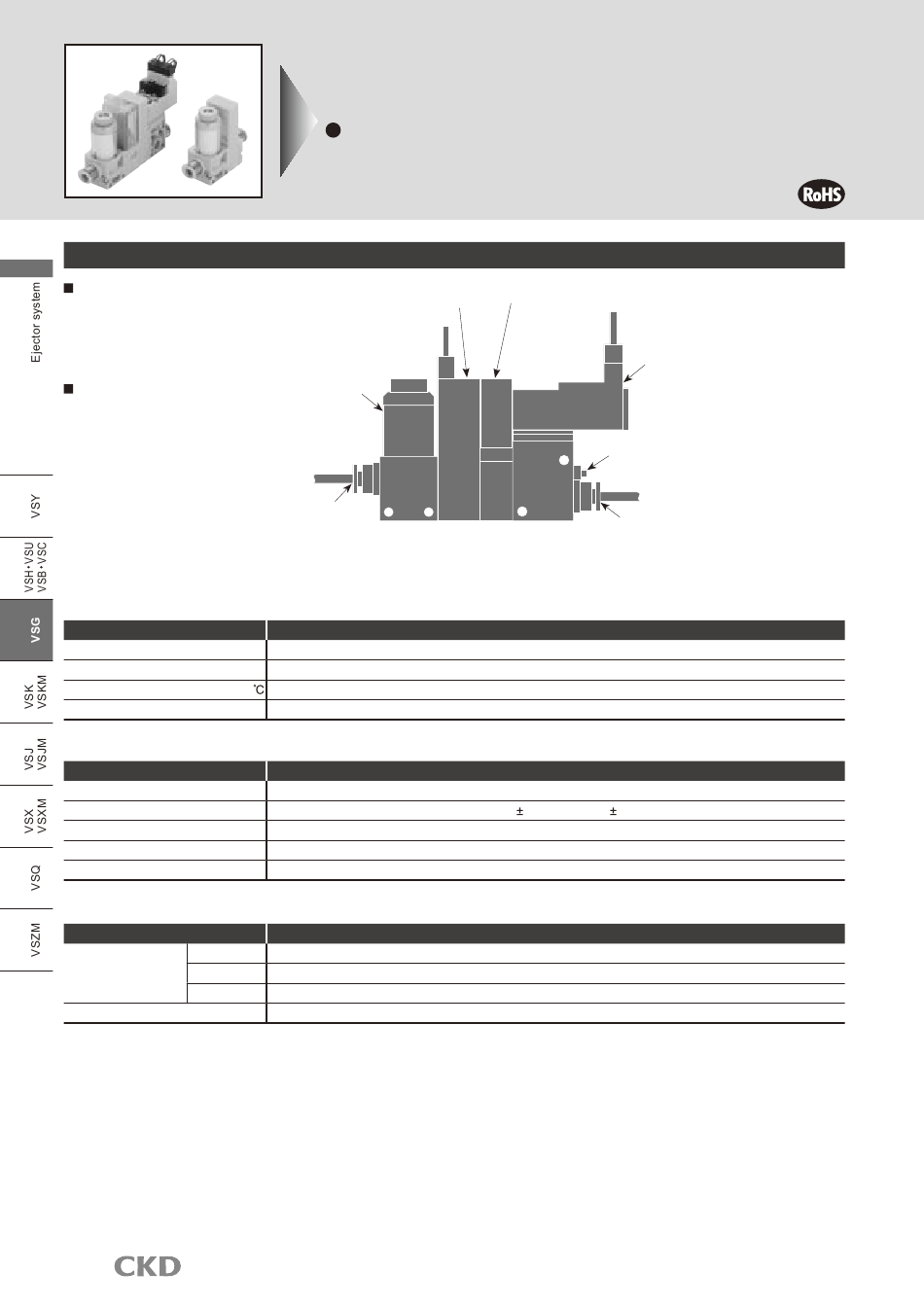

Basic performance oriented general vacuum ejector unit
VSG
Nozzle diameter: ø0.5, ø0.7, ø1.0
Vacuum switch and vacuum break valve, etc. are unitized, so types
matching the work purpose is selectable.
Vacuum switch
Filter
Vacuum port (V)
MPa
Series
Features
Ejector unit
VSG
Compressed air
0.25 to 0.7
5 to 50
Not required
Supply valve
Pilot operated poppet type
24 VDC 10% / 100 VAC 10%
1.2W (with LED) / 1.5VA (with LED)
5mm
2
Push type (non-locking)
Vacuum filter
Poly-vinyl formal
Polycarbonate transparent
PBT
10μm
Valve unit
(Valve for vacuum generator/vacuum break)
Break flow rate adjusting screw
Air supply port (P)
Advertisement
Related Manuals for CKD VSG Series
Summary of Contents for CKD VSG Series
- Page 1 Basic performance oriented general vacuum ejector unit Series Nozzle diameter: ø0.5, ø0.7, ø1.0 Vacuum switch and vacuum break valve, etc. are unitized, so types matching the work purpose is selectable. Features Vacuum switch and vacuum break Ejector unit Vacuum switch valve, etc.
-
Page 2: Circuit Diagram
Series Specifications / circuit diagrams Vacuum switch specifications Descriptions Vacuum switch VSG … -NA VSG … -NW VSG … -A Model no. Switch output 1 point Switch output 2 point Output specifications Analog output 1 point Analog output 1 point Power voltage 12 to 24 VDC 10% ripple content rate 10% (P-P) or less Power consumption (24 VDC supply) -
Page 3: How To Order
Series How to order 20mm width discrete vacuum ejector unit Symbol Descriptions Vacuum characteristics Note 1 Vacuum characteristics High vacuum/medium flow type Medium vacuum/large flow rate type High vacuum/small flow rate type Nozzle diameter Note 1, Note 3, Note 4 Nozzle diameter ø0.5 ø0.7... - Page 4 Series Dimensions Dimensions VSG-*A-* (unit combination: A) 2-ø3.2 Unit: mm O.D. Nozzle diameter Ultimate vacuum Suction flow Air consumption Weight Model no. øD (mm) (-kPa) (ℓ/min. (ANR)) (ℓ/min. (ANR)) VSG-H 05A-44 11.2 11.5 VSG-H 07A-66 12.3 11.8 11.9 VSG-H 10A-66 VSG-L 05A-44 11.2 11.5...
- Page 5 Series Dimensions Manual button VSG-*E-* (unit combination: E) Vacuum break valve Vacuum generator valve Break air adjustment needle 14.5 (18) 4-ø3.2 Unit: mm O.D. Nozzle diameter Ultimate vacuum Suction flow Air consumption Weight Model no. øD (mm) (-kPa) (ℓ/min. (ANR)) (ℓ/min.
-
Page 6: Safety Precautions
Series Safety precautions / How to use Safety precautions Refer to Intro 13 for the general precautions of the vacuum system components. CAUTION Monitor if piping resistance or required vacuum release flow is large. Insufficient vacuum release flow could cause problems. Check specifications before use. How to use 1. - Page 7 Series How to use 3. Adjustment method of break valve Adjustment method of break air Turning the vacuum release air adjustment needle to right (CW) decreases the release air flow and turning it to left (CCW) increases it. Flow: small Flow: large * After adjusting vacuum release air, tighten the lock nut so that the setting does not change.
- Page 8 Series How to use How to use 3. Analog output vacuum switch (-A) output characteristics Analog output characteristics Vacuum (-kPa) 4. Wiring and piping (1) Turn power off before wiring. (2) Check lead color and terminal output when wiring. (3) Refer to Fig. 1 Connection method when connecting wires. (4) Do not apply strong tension or excessively bend to leads.
