4) Wiring of the small terminal box with indicator light (L・LS)

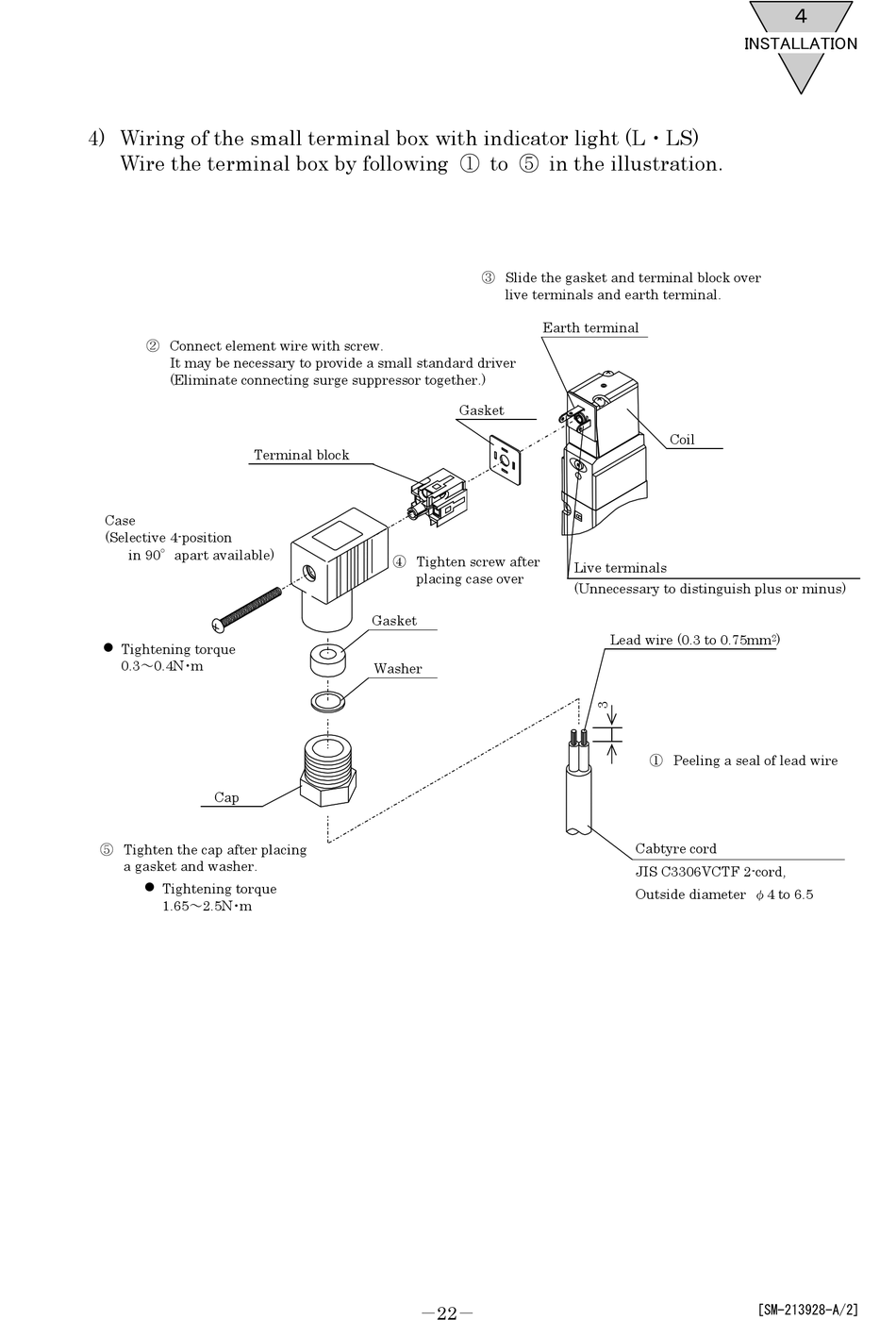

Wire the terminal box by following ① to ⑤ in the illustration.
② Connect element wire with screw.
It may be necessary to provide a small standard driver
(Eliminate connecting surge suppressor together.)
Terminal block
Case
(Selective 4-position
in 90°apart available)

Tightening torque
0.3〜0.4N・m
Cap
⑤ Tighten the cap after placing
a gasket and washer.

Tightening torque
1.65〜2.5N・m
③ Slide the gasket and terminal block over
live terminals and earth terminal.
Gasket
④ Tighten screw after
placing case over
Gasket
Washer
−22−
Earth terminal
Coil
Live terminals
(Unnecessary to distinguish plus or minus)
Lead wire (0.3 to 0.75mm
① Peeling a seal of lead wire
Cabtyre cord
JIS C3306VCTF 2-cord,
Outside diameter φ4 to 6.5
