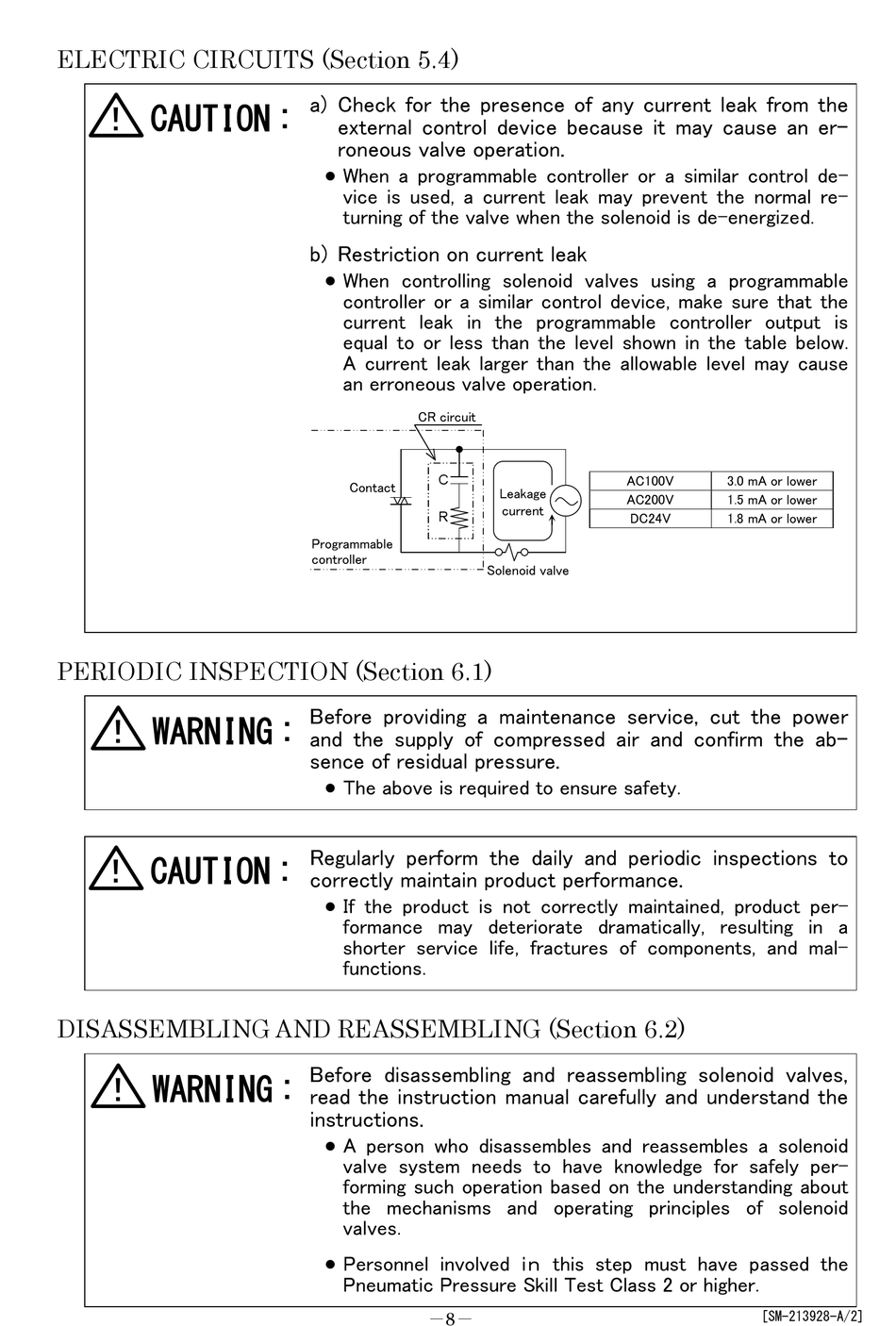

ELECTRIC CIRCUITS (Section 5.4)

CAUTION  :
PERIODIC INSPECTION (Section 6.1)

WARNING  :

CAUTION  :
DISASSEMBLING AND REASSEMBLING (Section 6.2)

WARNING  :
a)  Check  for  the  presence  of  any  current  leak  from  the
external  control  device  because  it  may  cause  an  er-
roneous valve operation.
When  a  programmable  controller  or  a  similar  control  de-
vice  is  used,  a  current  leak  may  prevent  the  normal  re-
turning of the valve when the solenoid is de-energized.
b)  Restriction on current leak
When  controlling  solenoid  valves  using  a  programmable
controller  or  a  similar  control device,  make  sure  that  the
current  leak  in  the  programmable  controller  output  is
equal  to  or  less  than  the  level  shown  in  the  table  below.
A  current  leak  larger  than  the  allowable  level  may  cause
an erroneous valve operation.
CR circuit
C
Contact
R
Programmable
controller
Before  providing  a  maintenance  service,  cut  the  power
and  the  supply  of  compressed  air  and  confirm  the  ab-
sence of residual pressure.
The above is required to ensure safety.
Regularly  perform  the  daily  and  periodic  inspections  to
correctly maintain product performance.
If  the  product  is  not  correctly  maintained,  product  per-
formance  may  deteriorate  dramatically,  resulting  in  a
shorter  service  life,  fractures  of  components,  and  mal-
functions.
Before  disassembling  and  reassembling  solenoid  valves,
read the instruction manual carefully and understand the
instructions.
A  person  who  disassembles  and  reassembles  a  solenoid
valve  system  needs  to  have  knowledge  for  safely  per-
forming such operation based on the understanding about
the  mechanisms  and  operating  principles  of  solenoid
valves.
Personnel  involved  in  this  step  must  have  passed  the
Pneumatic Pressure Skill Test Class 2 or higher.
−8−
AC100V
Leakage
AC200V
current
DC24V
Solenoid valve
3.0 mA or lower
1.5 mA or lower
1.8 mA or lower
[SM-213928-A/2]
