UNPACKING
MOUNTING
1. UNPACKING
!

CAUTION  :
CAUTION
CAUTION
CAUTION
1) Check the model number imprinted on the product to make sure that the
product you received is exactly the product you ordered.
2) Check the exterior of the product for any damage.

2. MOUNTING AND INSTALLATION

!

CAUTION  :
CAUTION
CAUTION
CAUTION
2.1 Explanation of activation
IN
JIS symbol
[SM‑315295‑A]
Bags containing product should be opened only when
you are ready to connect the product to the pipes
immediately afterward.
It bags are opened before the product are ready to be
connected to the pipes, the entry of foreign matter from
the piping ports could cause the product to fail or
malfunction.
1) Before tube exchange, the supply of compressed air and
confirm the absence of residual pressure.
2) Tighten pipes with appropriate torque to prevent screw
slack, air leakage and screw damage.
3) Carry out the piping work after checking the JIS symbols
stated on the nameplate attached to the main body. If
the piping is connected in an incorrect direction, this
may cause the customer's equipment to break.
4) When performing the piping work, tighten the width
across
flat
using
disconnecting this product from the pipe, loosen the
width across flat of the pipe to be disconnected.
5) Do not apply any lateral load to the main body during
mounting and after mounting.

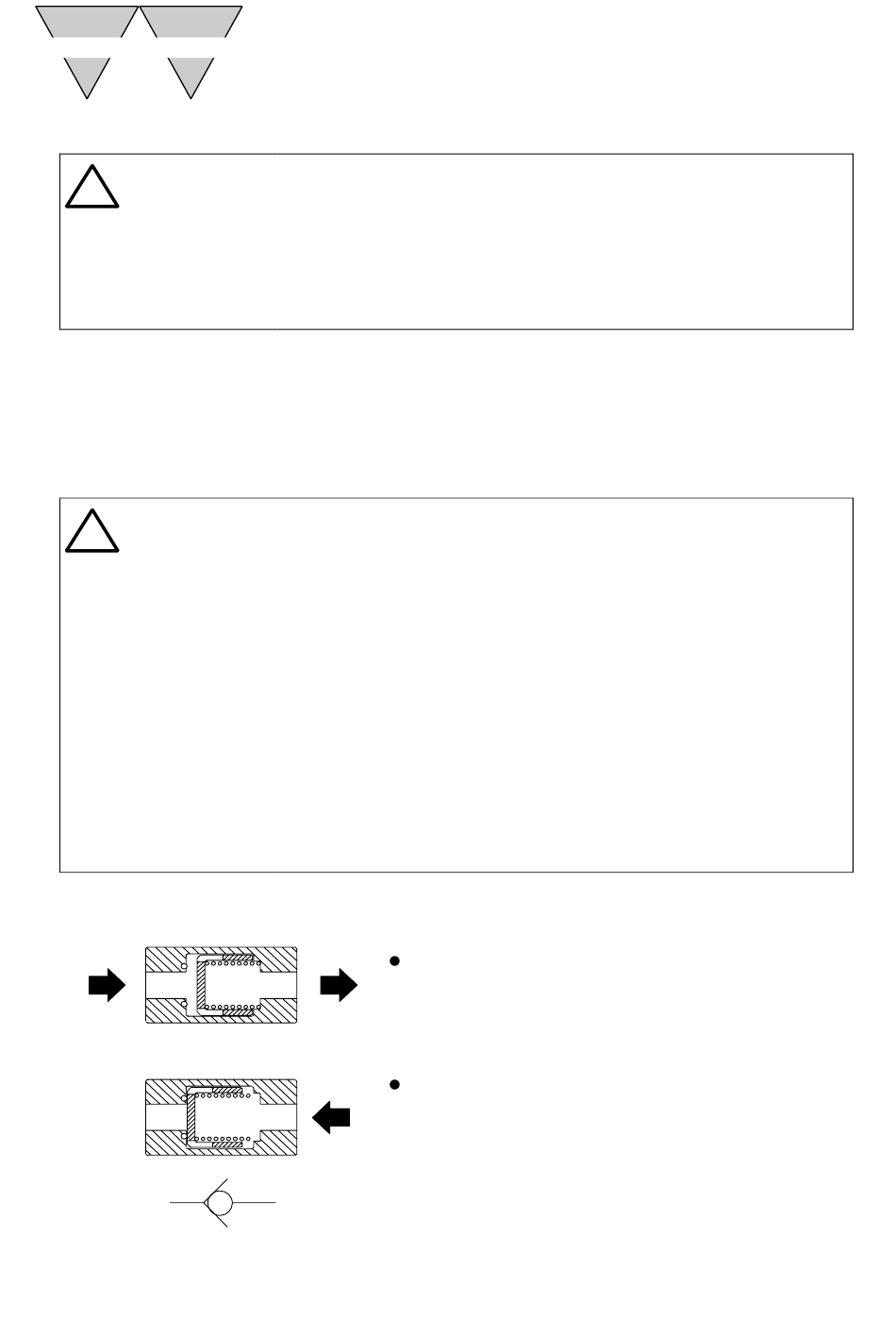

When applying the pressure in the IN direction
(direction, in which the groove is put on the cover)
stated on the nameplate attached to the main body,
the valve is opened fully and the flow becomes the
free flow.
When applying the pressure in the OUT direction
stated on the nameplate attached to the main body,
the valve is closed and the flow is shut out.
OUT
