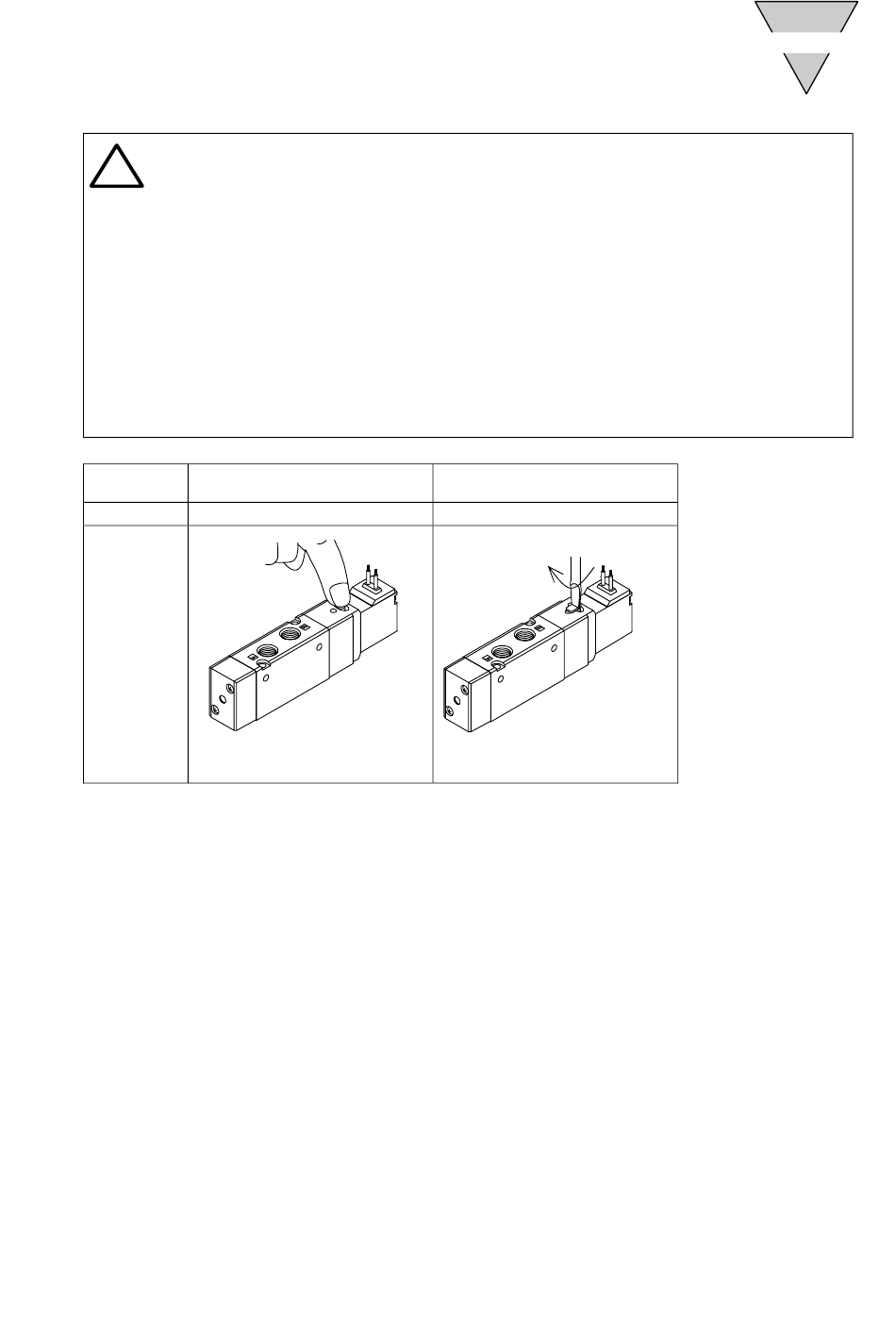

5.2 Manual Operating Device

WARNING  :
Non-lock type manual operating
Name
Option code
Shape
Keeps on activation during the time
this button is pushed.
1) Manual operating device
As this is a pilot solenoid valve, the spool will not be switched by operating
the manual operating device without an air supply to the P port.
2) Non-lock type manual operating device
Push in the manual axis all the way. With the 3-position single solenoid, the
valve is energized while the axis is being pressed and it returns to the origi-
nal state when released. With the 2-position double solenoid, however, the A
(B) side is energized when the manual axis on that side is pushed in ; the
spool retains the situation even when the axis is released. To return to the
original state, push the manual axis on the B (A) side.
3) Lock type manual operating device
Turn it 90 degrees (clockwise only) with your finger or a screwdriver, and the
valve is energized and locked. Do not turn it further after the valved is
locked to prevent damage to the device.
Be sure to unlock it before the regular operation.
a)  After  using  the  manual  operating  device,  be  sure  to
reset  the  manual  operating  device  to  the  original
(OFF)  position  before  resuming  the  operation  of  the
device.
After a non-lock type operation (push and release), be
sure to check that the manual operating device is au-
tomatically  reset.    After  a  lock-type  operation  (push
and  lock),  be  sure  to  release  the  lock  to  turn  the
manual operating device OFF.
b)  Before  using  the  manual  operating  device,  make  sure
that  nobody  is  present  near  the  cylinder  to  be  acti-
vated.
device
No code
PUSH
Lock type manual operating device
M1
Activates when set to ON ;
normally return to OFF position.
−26−
OPERATION
[SM-213928-A/2]
