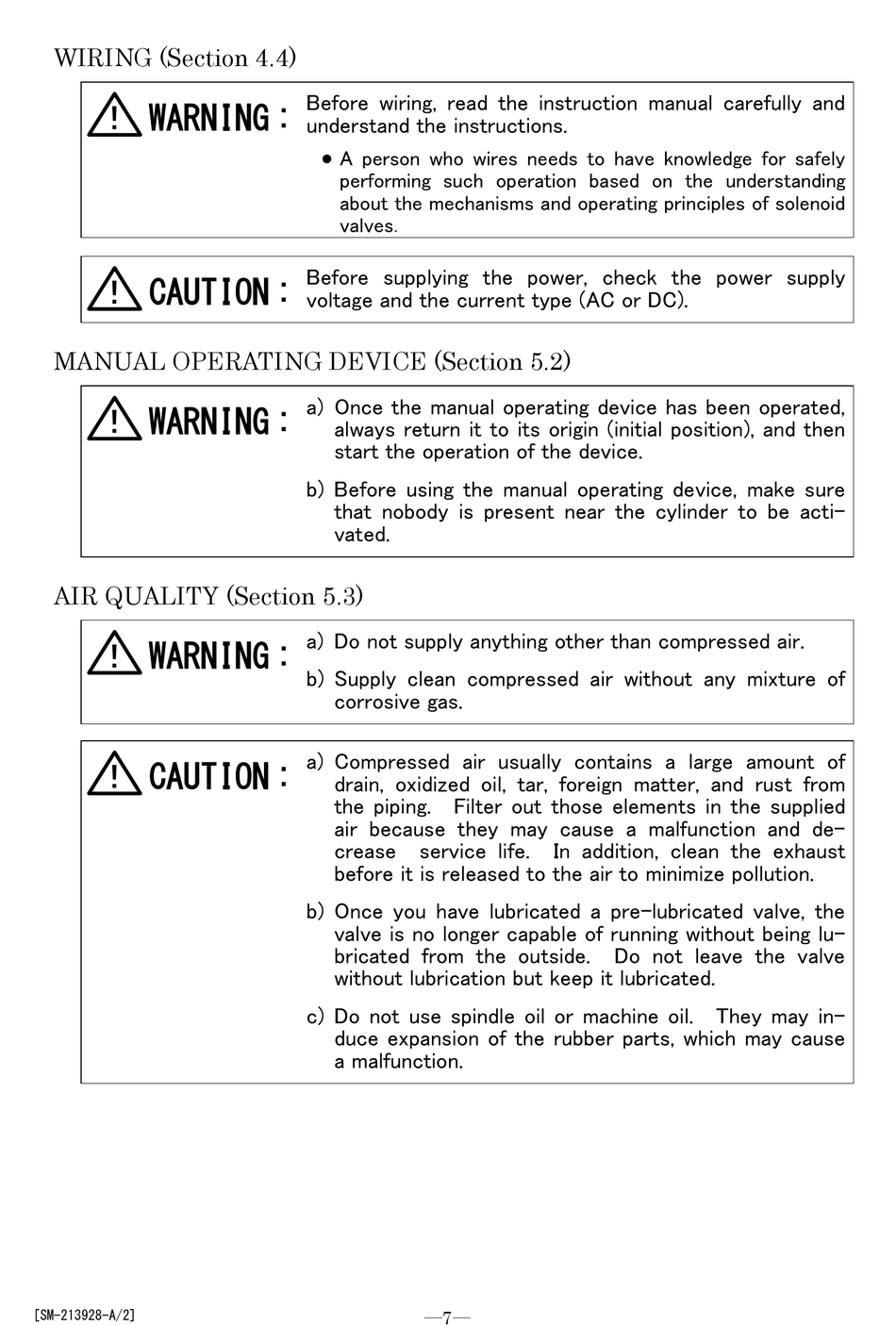

WIRING (Section 4.4)

WARNING  :

CAUTION  :
MANUAL OPERATING DEVICE (Section 5.2)

WARNING  :
AIR QUALITY (Section 5.3)

WARNING  :

CAUTION  :
[SM-213928-A/2]
Before  wiring,  read  the  instruction  manual  carefully  and
understand the instructions.
A  person  who  wires  needs  to  have  knowledge  for  safely
performing  such  operation  based  on  the  understanding
about the mechanisms and operating principles of solenoid
valves.
Before  supplying  the  power,  check  the  power  supply
voltage and the current type (AC or DC).
a)  Once the manual operating device has been operated,
always return it to its origin (initial position), and then
start the operation of the device.
b)  Before  using  the  manual  operating  device,  make  sure
that  nobody  is  present  near  the  cylinder  to  be  acti-
vated.
a)  Do not supply anything other than compressed air.
b)  Supply  clean  compressed  air  without  any  mixture  of
corrosive gas.
a)  Compressed  air  usually  contains  a  large  amount  of
drain,  oxidized  oil,  tar,  foreign  matter,  and  rust  from
the  piping.    Filter  out  those  elements  in  the  supplied
air  because  they  may  cause  a  malfunction  and  de-
crease    service  life.    In  addition,  clean  the  exhaust
before it is released to the air to minimize pollution.
b)  Once  you  have  lubricated  a  pre-lubricated  valve,  the
valve is no longer capable of running without being lu-
bricated  from  the  outside.    Do  not  leave  the  valve
without lubrication but keep it lubricated.
c)  Do  not  use  spindle  oil  or  machine  oil.    They  may  in-
duce expansion of the rubber parts, which may cause
a malfunction.
―7―
