CAUTION  :

4.2 Installation method


WARNING  :
4.2.1 A work space for installation, removal, wiring, and piping opera-
tions should be provided around the installed solenoid valve sys-
tem.

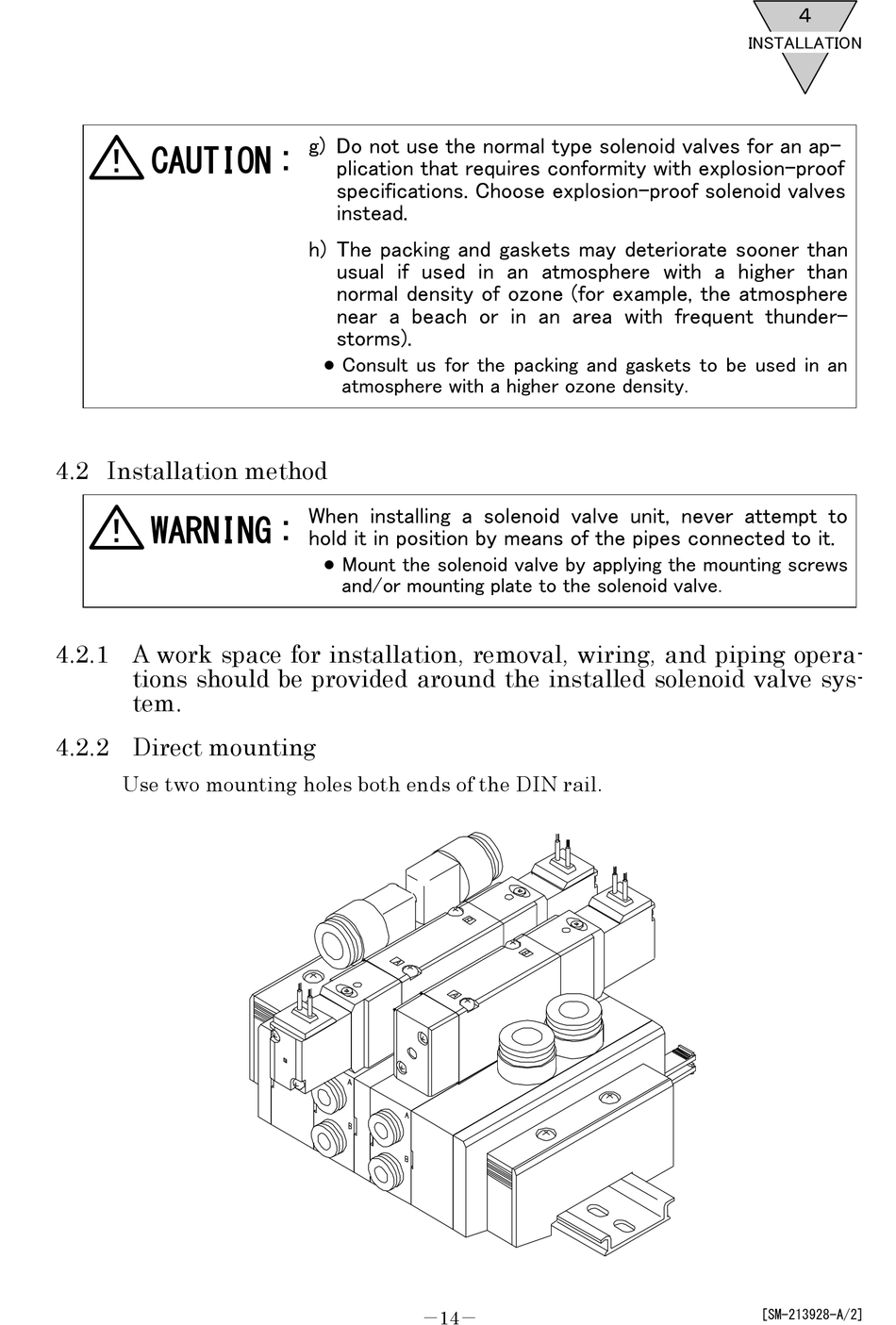

4.2.2 Direct mounting

Use two mounting holes both ends of the DIN rail.
g)  Do not use the normal type solenoid valves for an ap-
plication that requires conformity with explosion-proof
specifications. Choose explosion-proof solenoid valves
instead.
h)  The packing and gaskets may deteriorate sooner than
usual  if  used  in  an  atmosphere  with  a  higher  than
normal density of ozone (for example, the atmosphere
near  a  beach  or  in  an  area  with  frequent  thunder-
storms).
Consult us  for  the  packing  and  gaskets  to  be  used  in  an
atmosphere with a higher ozone density.
When  installing  a  solenoid  valve  unit,  never  attempt  to
hold it in position by means of the pipes connected to it.
Mount the solenoid valve by applying the mounting screws
and/or mounting plate to the solenoid valve.
−14−
INSTALLATION
[SM-213928-A/2]
