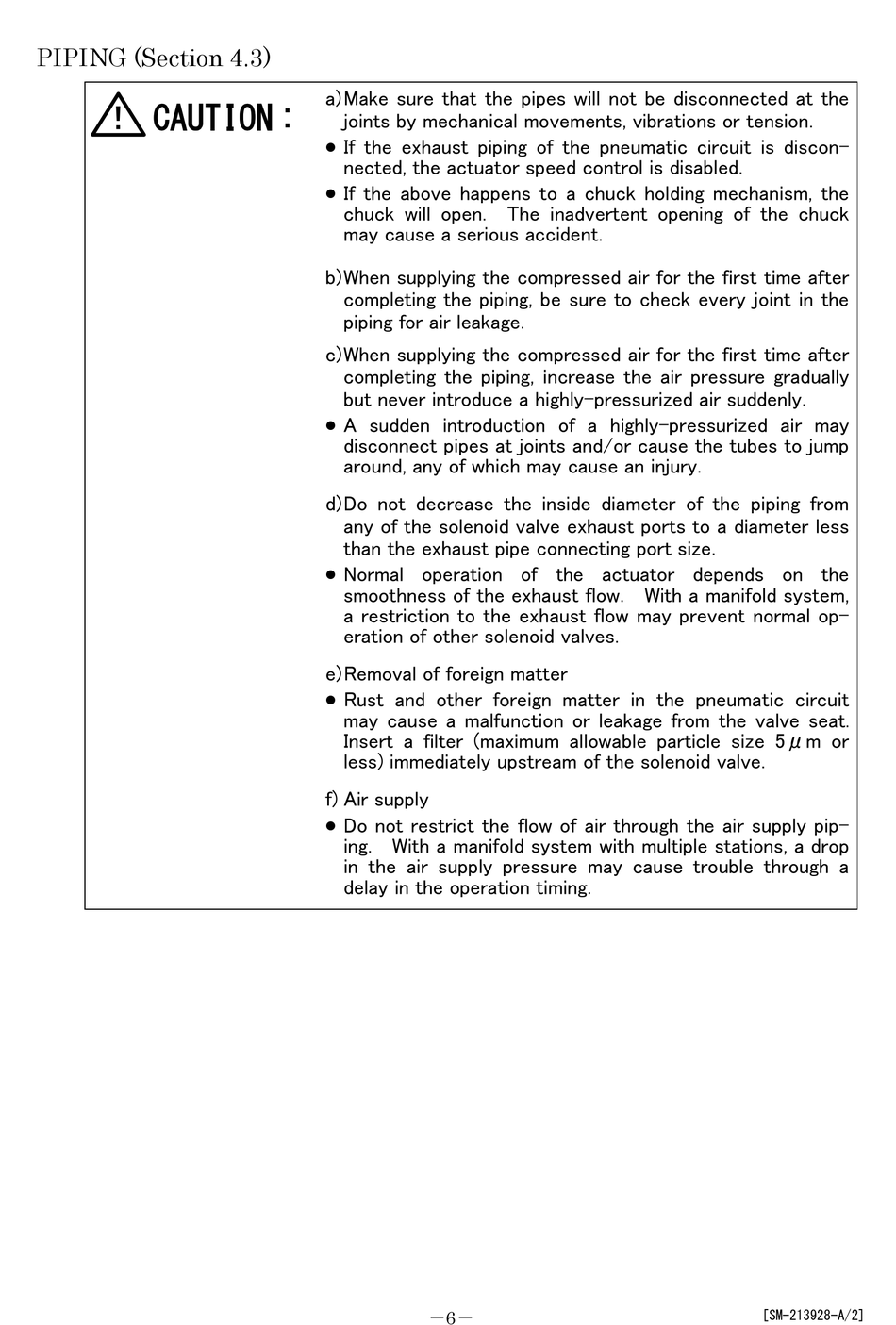

PIPING (Section 4.3)

CAUTION  :
a)  M ake sure that the pipes will not be disconnected at the
joints by mechanical movements, vibrations or tension.
If  the  exhaust  piping  of  the  pneumatic  circuit  is  discon-
nected, the actuator speed control is disabled.
If  the  above  happens  to  a  chuck  holding  mechanism,  the
chuck  will  open.    The  inadvertent  opening  of  the  chuck
may cause a serious accident.
b)  W hen supplying the compressed air for the first time after
completing the piping, be sure to check every joint in the
piping for air leakage.
c)  W hen supplying the compressed air for the first time after
completing  the  piping,  increase  the  air  pressure  gradually
but never introduce a highly-pressurized air suddenly.
A  sudden  introduction  of  a  highly-pressurized  air  may
disconnect pipes at joints and/or cause the tubes to jump
around, any of which may cause an injury.
d)  D o  not  decrease  the  inside  diameter  of  the  piping  from
any of the solenoid valve exhaust ports to a diameter less
than the exhaust pipe connecting port size.
Normal  operation  of  the  actuator  depends  on  the
smoothness of the exhaust flow.    With a manifold system,
a restriction to the exhaust flow may prevent normal op-
eration of other solenoid valves.
e)  R emoval of foreign matter
Rust  and  other  foreign  matter  in  the  pneumatic  circuit
may  cause  a  malfunction  or  leakage  from  the  valve  seat.
Insert  a  filter  (maximum  allowable  particle  size  5μm  or
less) immediately upstream of the solenoid valve.
f) Air supply
Do not restrict the flow of air through the air supply pip-
ing.    With a manifold system with multiple stations, a drop
in  the  air  supply  pressure  may  cause  trouble  through  a
delay in the operation timing.
−6−
[SM-213928-A/2]
