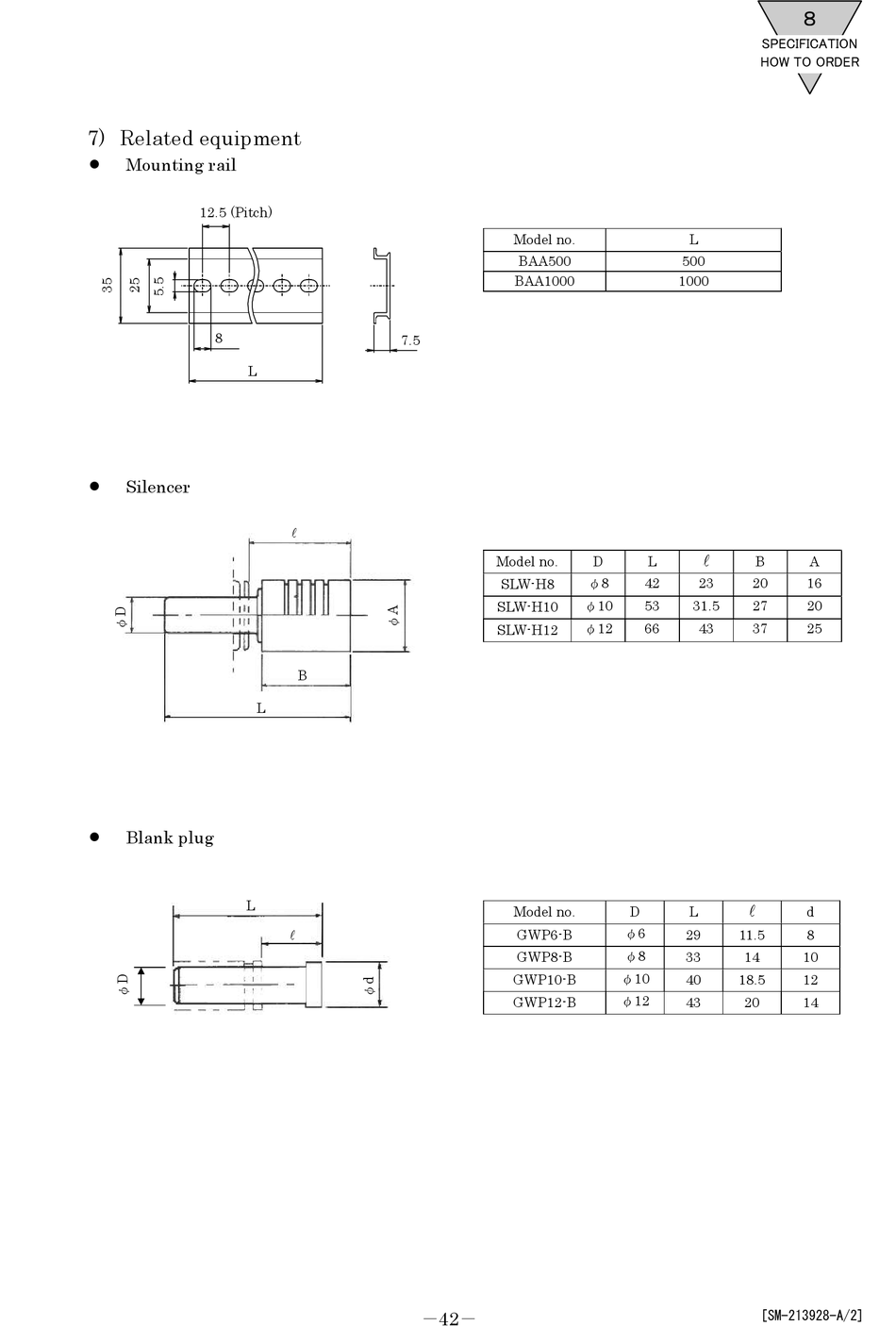

7) Related equipment
Mounting rail
12.5 (Pitch)
8
L
Silencer
L
Blank plug
L
7.5
B
−42−
Model no.
BAA500
BAA1000
Model no.
D
L
42
SLW-H8
φ8
53
SLW-H10
φ10
66
SLW-H12
φ12
Model no.
D
GWP6-B
φ6
GWP8-B
φ8
GWP10-B
φ10
GWP12-B
φ12
8
SPECIFICATION
HOW TO ORDER
L
500
1000
B
A
23
20
16
31.5
27
20
43
37
25
L
d
29
11.5
8
33
14
10
40
18.5
12
43
20
14
[SM-213928-A/2]
