MAINTENANCE

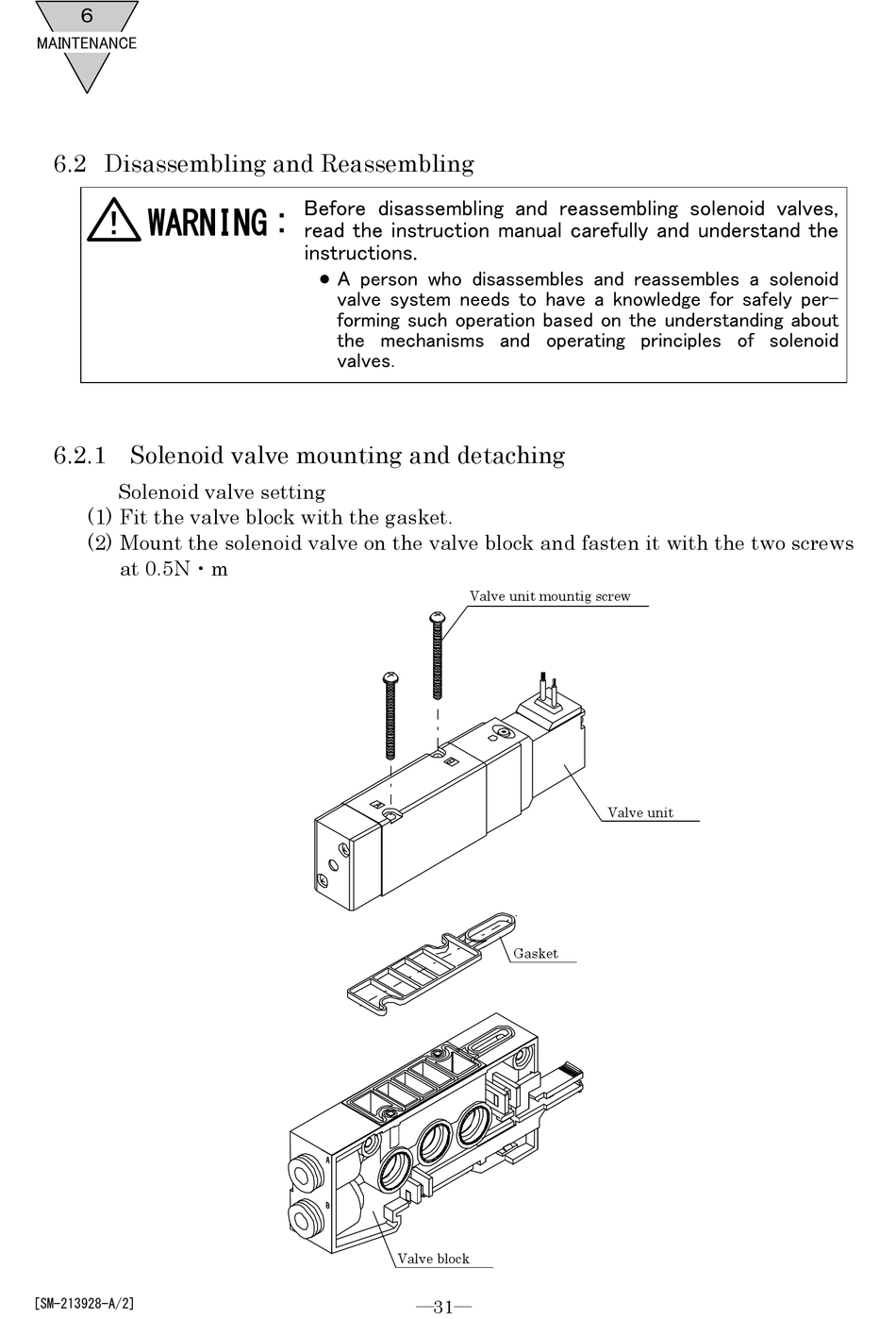

6.2 Disassembling and Reassembling


WARNING  :
6.2.1 Solenoid valve mounting and detaching
Solenoid valve setting
(1) Fit the valve block with the gasket.
(2) Mount the solenoid valve on the valve block and fasten it with the two screws
at 0.5N・m
[SM-213928-A/2]
Before  disassembling  and  reassembling  solenoid  valves,
read the instruction manual carefully and understand the
instructions.
A  person  who  disassembles  and  reassembles  a  solenoid
valve  system  needs  to  have  a  knowledge  for  safely  per-
forming such operation based on the understanding about
the  mechanisms  and  operating  principles  of  solenoid
valves.
Valve unit mountig screw
Valve block
―31―
Valve unit
Gasket
