Flash Buttons; To Change The Operation Of The Chase Flash Button; Lcd Windows; Controlling Stacks - Jands Event Plus Operating Manual

Control Functions - Playback

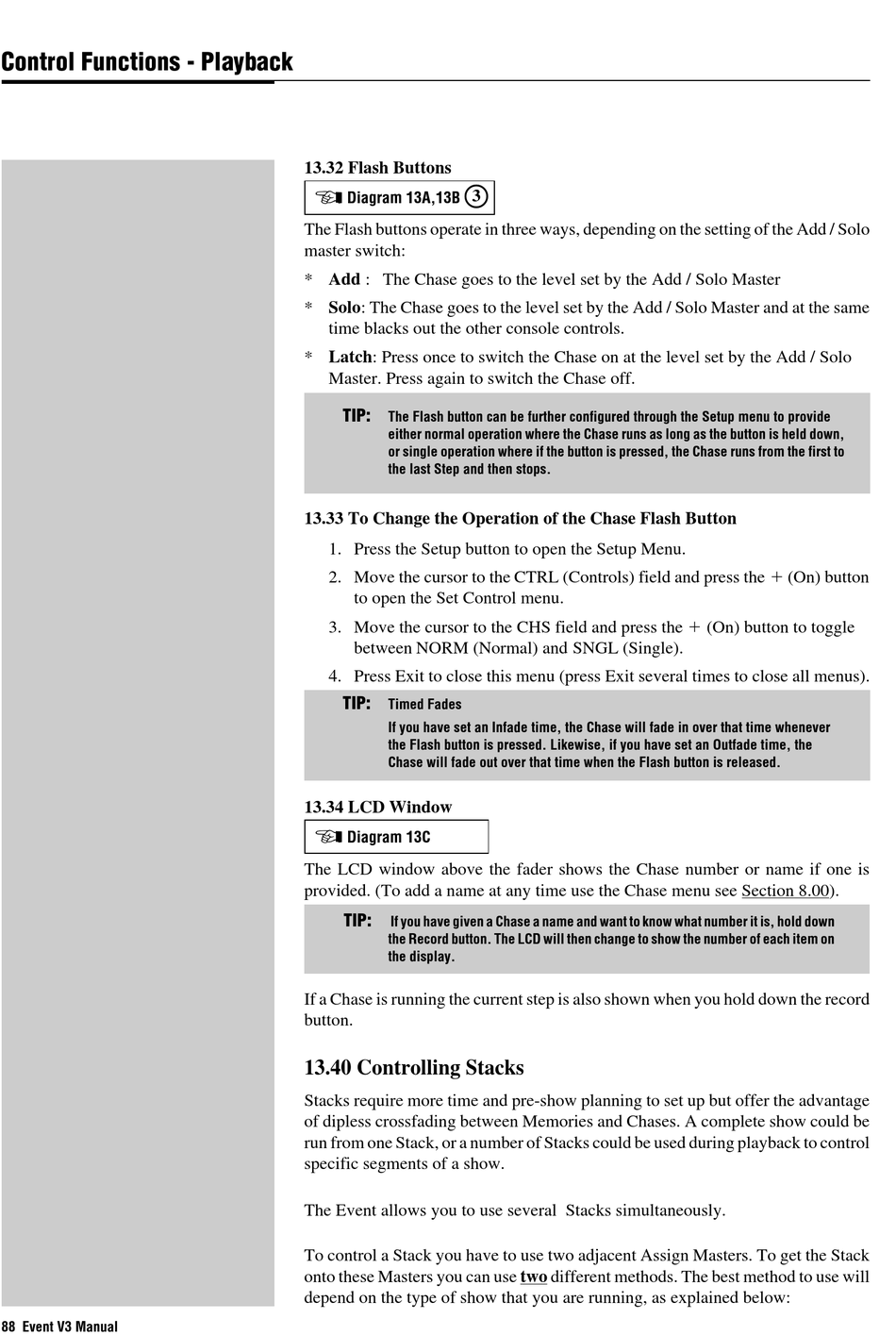

88 Event V3 Manual

13.32 Flash Buttons

3
Diagram 13A,13B
The Flash buttons operate in three ways, depending on the setting of the Add / Solo
master switch:
* Add : The Chase goes to the level set by the Add / Solo Master
* Solo: The Chase goes to the level set by the Add / Solo Master and at the same
time blacks out the other console controls.
* Latch: Press once to switch the Chase on at the level set by the Add / Solo
Master. Press again to switch the Chase off.
TIP:
The Flash button can be further configured through the Setup menu to provide
either normal operation where the Chase runs as long as the button is held down,
or single operation where if the button is pressed, the Chase runs from the first to
the last Step and then stops.

13.33 To Change the Operation of the Chase Flash Button

1. Press the Setup button to open the Setup Menu.
2. Move the cursor to the CTRL (Controls) field and press the
to open the Set Control menu.
3. Move the cursor to the CHS field and press the
between NORM (Normal) and SNGL (Single).
4. Press Exit to close this menu (press Exit several times to close all menus).
TIP:
Timed Fades
If you have set an Infade time, the Chase will fade in over that time whenever
the Flash button is pressed. Likewise, if you have set an Outfade time, the
Chase will fade out over that time when the Flash button is released.
13.34 LCD Window
Diagram 13C
The LCD window above the fader shows the Chase number or name if one is
provided. (To add a name at any time use the Chase menu see Section 8.00).
TIP:
If you have given a Chase a name and want to know what number it is, hold down
the Record button. The LCD will then change to show the number of each item on
the display.
If a Chase is running the current step is also shown when you hold down the record
button.

13.40 Controlling Stacks

Stacks require more time and pre-show planning to set up but offer the advantage
of dipless crossfading between Memories and Chases. A complete show could be
run from one Stack, or a number of Stacks could be used during playback to control
specific segments of a show.
The Event allows you to use several Stacks simultaneously.
To control a Stack you have to use two adjacent Assign Masters. To get the Stack
onto these Masters you can use two different methods. The best method to use will
depend on the type of show that you are running, as explained below:
(On) button
(On) button to toggle
