Advanced Features
138 Event V3 Manual

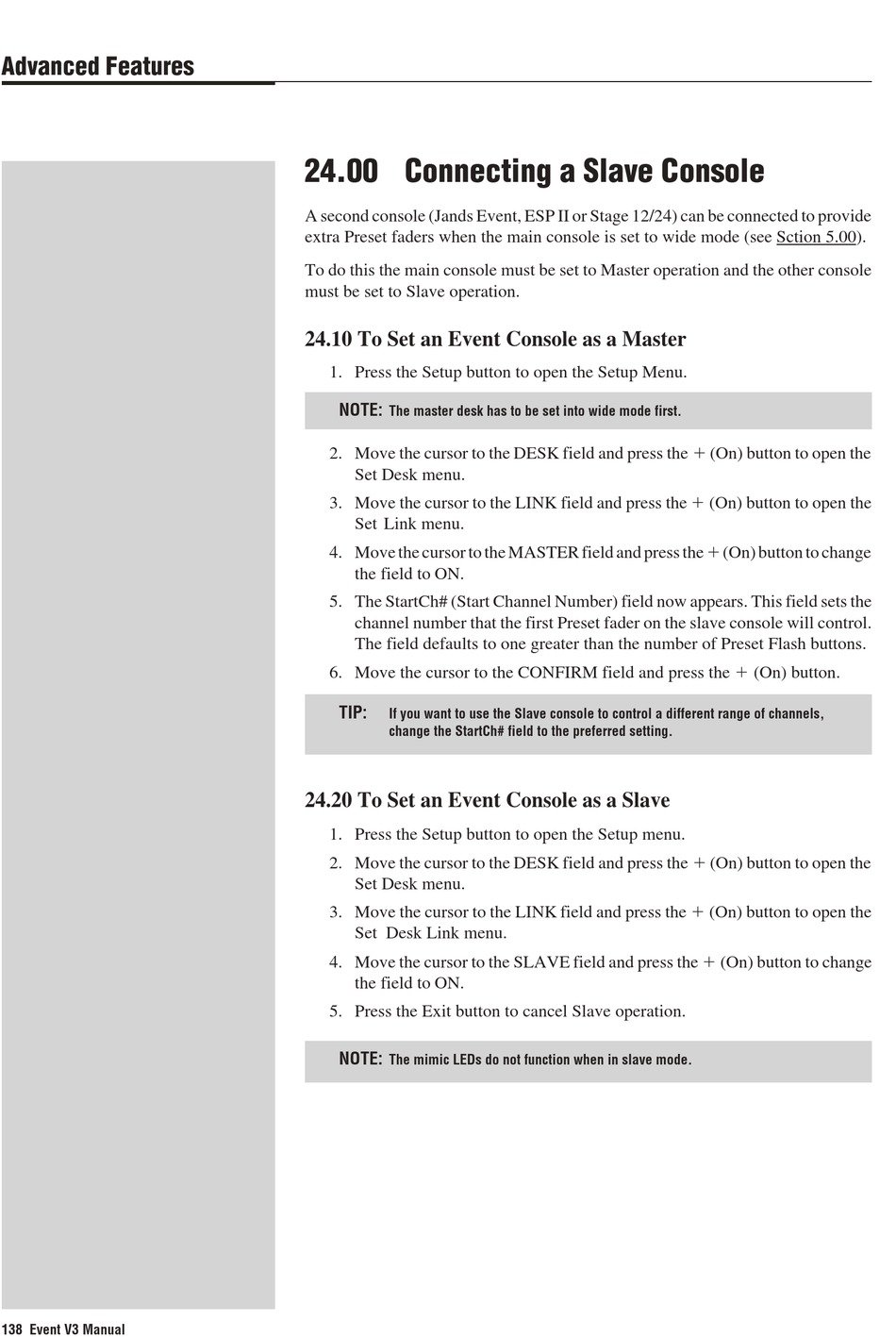

24.00 Connecting a Slave Console

A second console (Jands Event, ESP II or Stage 12/24) can be connected to provide
extra Preset faders when the main console is set to wide mode (see Sction 5.00).
To do this the main console must be set to Master operation and the other console
must be set to Slave operation.

24.10 To Set an Event Console as a Master

1. Press the Setup button to open the Setup Menu.
NOTE:
The master desk has to be set into wide mode first.
2. Move the cursor to the DESK field and press the
Set Desk menu.
3. Move the cursor to the LINK field and press the
Set Link menu.
4. Move the cursor to the MASTER field and press the
the field to ON.
5. The StartCh# (Start Channel Number) field now appears. This field sets the
channel number that the first Preset fader on the slave console will control.
The field defaults to one greater than the number of Preset Flash buttons.
6. Move the cursor to the CONFIRM field and press the
TIP:
If you want to use the Slave console to control a different range of channels,
change the StartCh# field to the preferred setting.

24.20 To Set an Event Console as a Slave

1. Press the Setup button to open the Setup menu.
2. Move the cursor to the DESK field and press the
Set Desk menu.
3. Move the cursor to the LINK field and press the
Set Desk Link menu.
4. Move the cursor to the SLAVE field and press the
the field to ON.
5. Press the Exit button to cancel Slave operation.
NOTE:
The mimic LEDs do not function when in slave mode.
(On) button to open the
(On) button to open the
(On) button to change
(On) button.
(On) button to open the
(On) button to open the
(On) button to change
