Advanced Features
116 Event V3 Manual

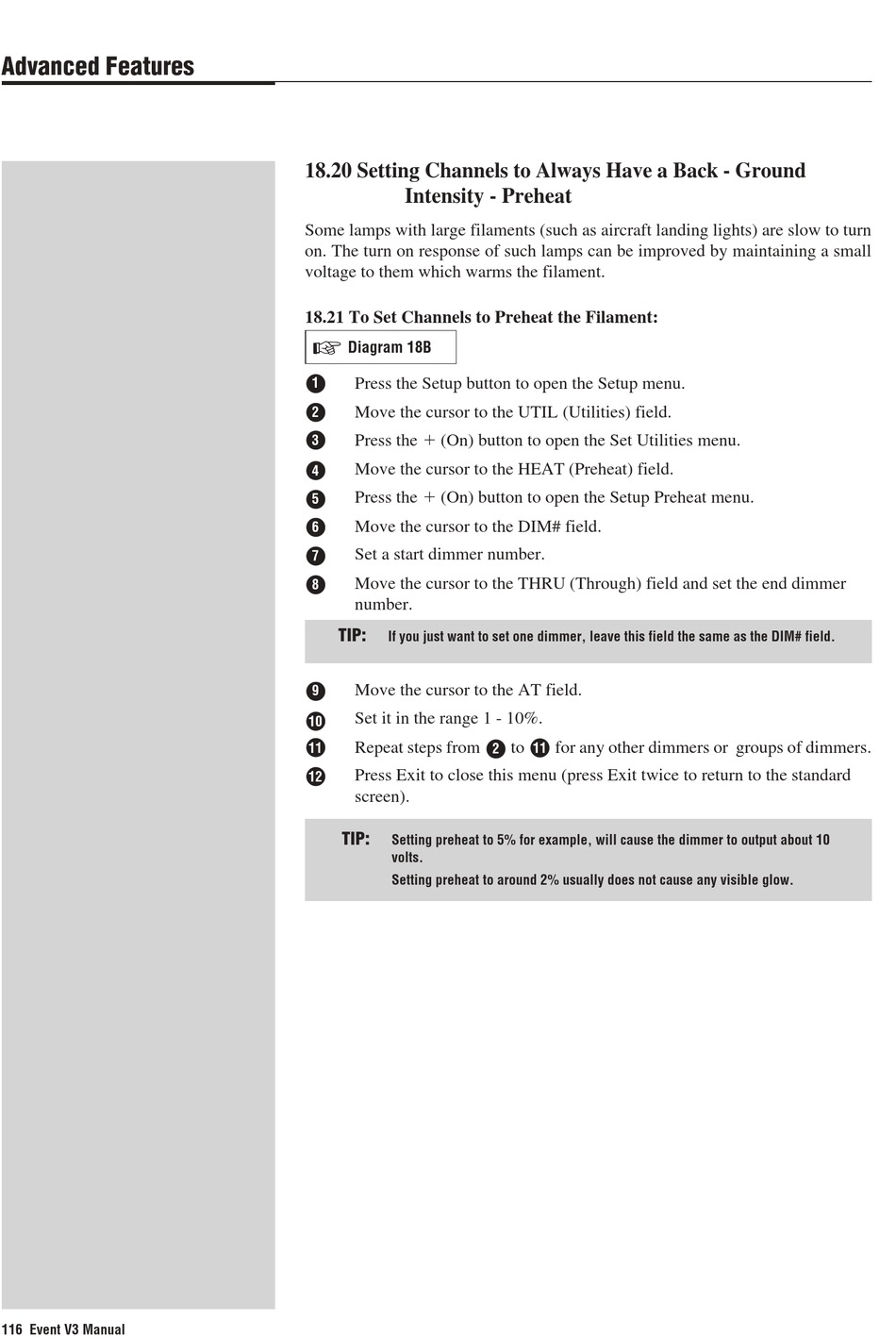

18.20 Setting Channels to Always Have a Back - Ground
Intensity - Preheat
Some lamps with large filaments (such as aircraft landing lights) are slow to turn
on. The turn on response of such lamps can be improved by maintaining a small
voltage to them which warms the filament.

18.21 To Set Channels to Preheat the Filament:

Diagram 18B
1 Press the Setup button to open the Setup menu.
Move the cursor to the UTIL (Utilities) field.
2
Press the (On) button to open the Set Utilities menu.
3
Move the cursor to the HEAT (Preheat) field.
4
Press the (On) button to open the Setup Preheat menu.
5
Move the cursor to the DIM# field.
6
Set a start dimmer number.
7
Move the cursor to the THRU (Through) field and set the end dimmer
8
number.
TIP:
If you just want to set one dimmer, leave this field the same as the DIM# field.
Move the cursor to the AT field.
9
Set it in the range 1 - 10%.
10
Repeat steps from
11
Press Exit to close this menu (press Exit twice to return to the standard
12
screen).
TIP:
Setting preheat to 5% for example, will cause the dimmer to output about 10
volts.
Setting preheat to around 2% usually does not cause any visible glow.
to for any other dimmers or groups of dimmers.
11
2
