Managing Memories & Chases

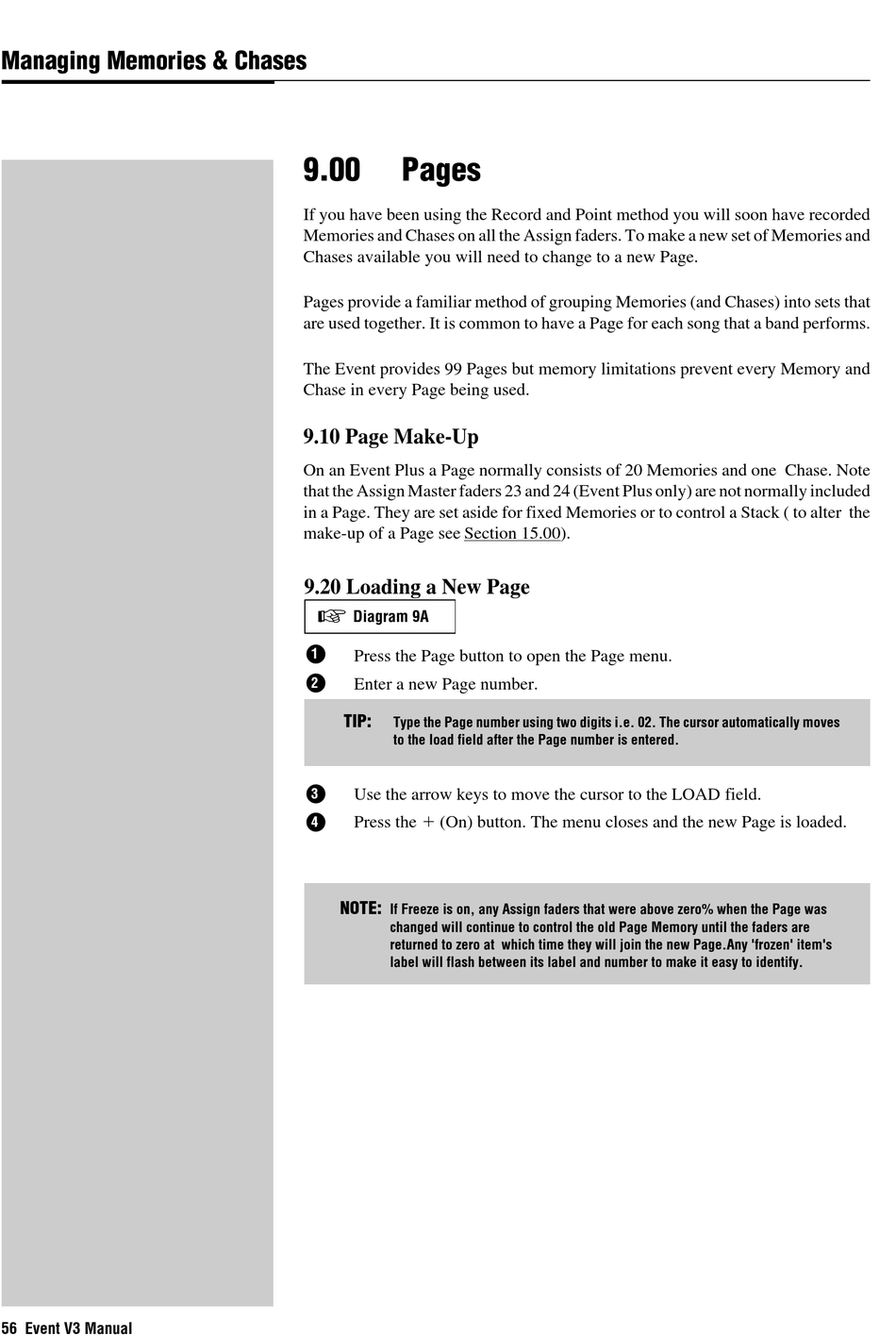

56 Event V3 Manual
9.00

Pages

If you have been using the Record and Point method you will soon have recorded
Memories and Chases on all the Assign faders. To make a new set of Memories and
Chases available you will need to change to a new Page.
Pages provide a familiar method of grouping Memories (and Chases) into sets that
are used together. It is common to have a Page for each song that a band performs.
The Event provides 99 Pages but memory limitations prevent every Memory and
Chase in every Page being used.

9.10 Page Make-Up

On an Event Plus a Page normally consists of 20 Memories and one Chase. Note
that the Assign Master faders 23 and 24 (Event Plus only) are not normally included
in a Page. They are set aside for fixed Memories or to control a Stack ( to alter the
make-up of a Page see Section 15.00).

9.20 Loading a New Page

Diagram 9A
1
Press the Page button to open the Page menu.
2 Enter a new Page number.
TIP:
Type the Page number using two digits i.e. 02. The cursor automatically moves
to the load field after the Page number is entered.
Use the arrow keys to move the cursor to the LOAD field.
3
4 Press the (On) button. The menu closes and the new Page is loaded.
NOTE:
If Freeze is on, any Assign faders that were above zero% when the Page was
changed will continue to control the old Page Memory until the faders are
returned to zero at which time they will join the new Page.Any 'frozen' item's
label will flash between its label and number to make it easy to identify.
