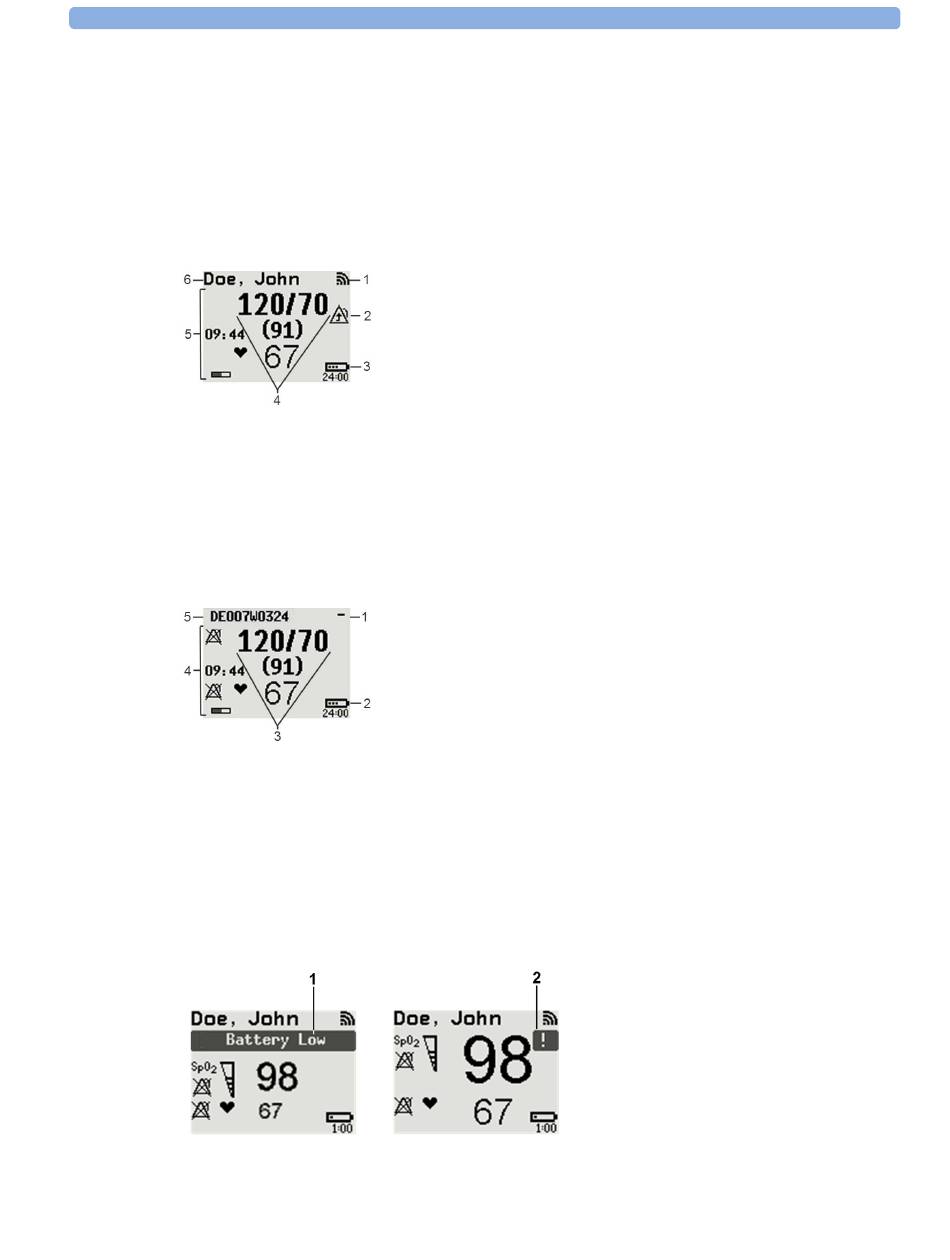

Screen Layout
There are three variations of the Main Screen layout depending on the INOP status and the general
activity level.
Standard Layout
When assigned to a monitor, telemetry device or a patient in GuardianSoftware:
When not assigned to a monitor or telemetry device:
INOP Layout
If an INOP occurs the full INOP message appears at the top of the screen. After the INOP message
has been acknowledged the INOP indicator is shown as a symbol on the right side of the screen.
1 Introduction and Basic Operation
Connection status indicator
1
Indicator that alarming capability has been transferred
2
to the host (to the monitor or, for the telemetry
device, to the Information Center). No patient alarms
will be announced on the Cableless Measurement
Device.
Battery indicator
3
4 Measurement values
Measurement-related symbols (see the measurement
5
chapters for details)
6 Patient identification
Connection status indicator
1
Battery indicator
2
3 Measurement values
Measurement-related symbols (see the measurement
4
chapters for details). The Alarms Off symbols
indicate that no physiological alarms are available
from the Cableless Measurement Devices when not
assigned to a host.
Cableless Measurement Device equipment label
5
1 Full length INOP message
INOP indicator
2
