Chapter 2: Jumpers and Connectors

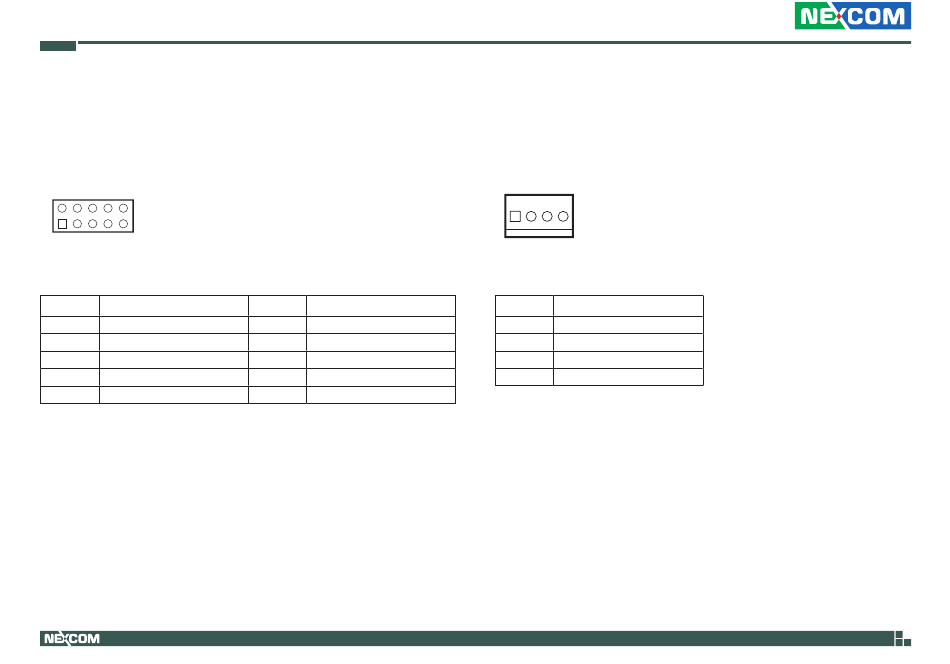

GPIO Pin Header
Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: JP3
2
10
1
9
Pin
Definition
1
GPIO_PWR
3
GPIO80
5
GPIO81
7
GPIO82
9
GPIO83
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GPIO_GND
4
GPIO84
6
GPIO85
8
GPIO86
10
GPIO87
Fan1 Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: FAN1
1
4
Pin
Definition
1
GND
2
FAN1_12V_C
3
FAN_TAC1_C
4
FAN_CTL1_C
35
NISE 3800 Series User Manual
