Chapter 1: Product Introduction

Knowing Your NISE 3800 Series

NISE 3800E/E2/P2/P2E & NISE 3800R

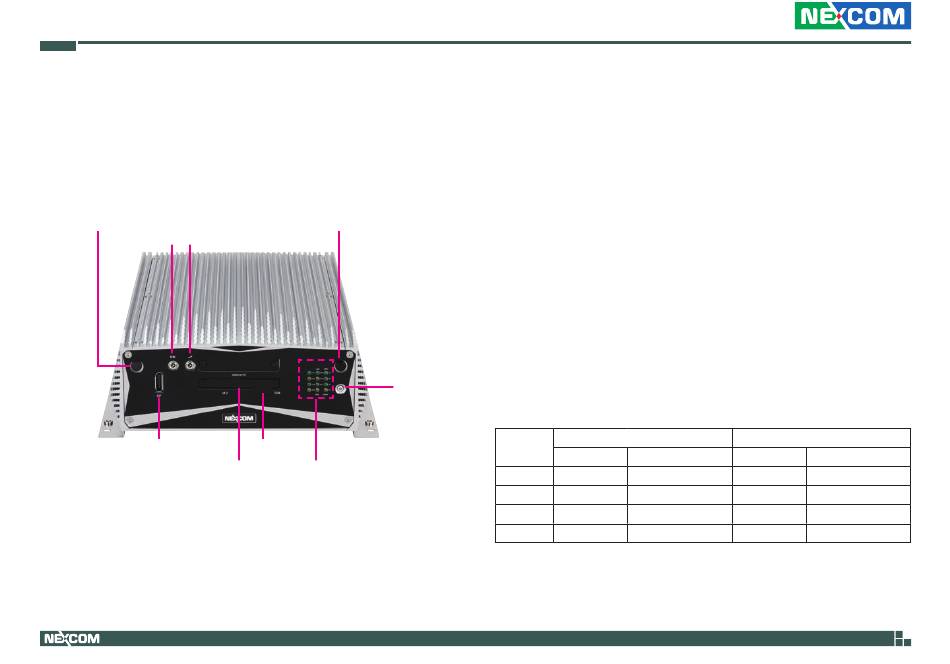

Front Panel
Antenna Hole
Line-out Mic-in
DisplayPort
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Antenna Hole
Power
Switch
SIM
M.2 LED Indicators
Antenna Hole
The external antenna mounting holes are used to mount and connect
optional external antennas.
DisplayPort
Used to connect a DisplayPort interface monitor.
Line-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
M.2 and SIM Card Slot
Used to install an M.2 and a SIM card.
LED Indicators
Indicates the COM port, LAN and GPO activity of the system. The Diagnostics
LEDs (Diag 1 and Diag 2) are used for troubleshooting system errors.
Diag 1
Normal
Boot up No LED light Constant LED light
POST
No LED light Flashing LED light
Memory
OS
Power Switch
Press to power-on or power-off the system.
6
Diag 2
Fail Normal Fail
No LED light Constant LED light
No LED light Flashing LED light
