Chapter 2: Jumpers and Connectors
Internal Connectors

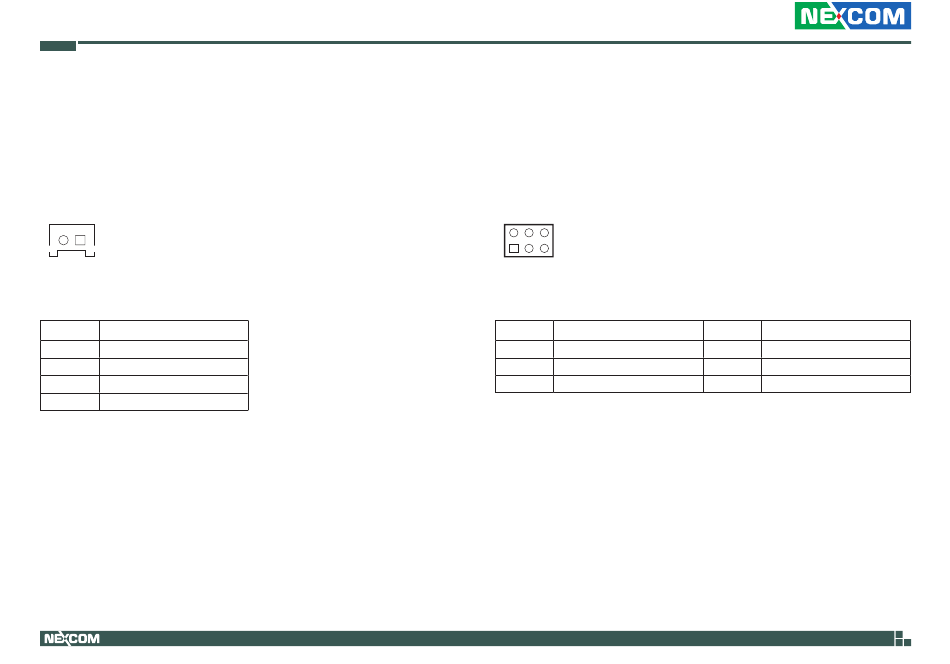

Reset Connector
Connector type: 1x2 2-pin Wafer, 1.25mm pitch
Connector location: J2
2
1
Pin
Definition
1
PM_RESET#_J
2
GND
MH1
GND
MH2
GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
FW BIOS Connector
Connector type: 2x3 6-pin header, 2.0mm pitch
Connector location: JFW1
2
6
1
5
Pin
Definition
1
VCCSPI
3
BIOS_CS0#
5
BIOS_SO
29
Pin
Definition
2
GND
4
BIOS_SCK
6
BIOS_SI
