Chapter 1: Product Introduction
NISE 3800E-H110

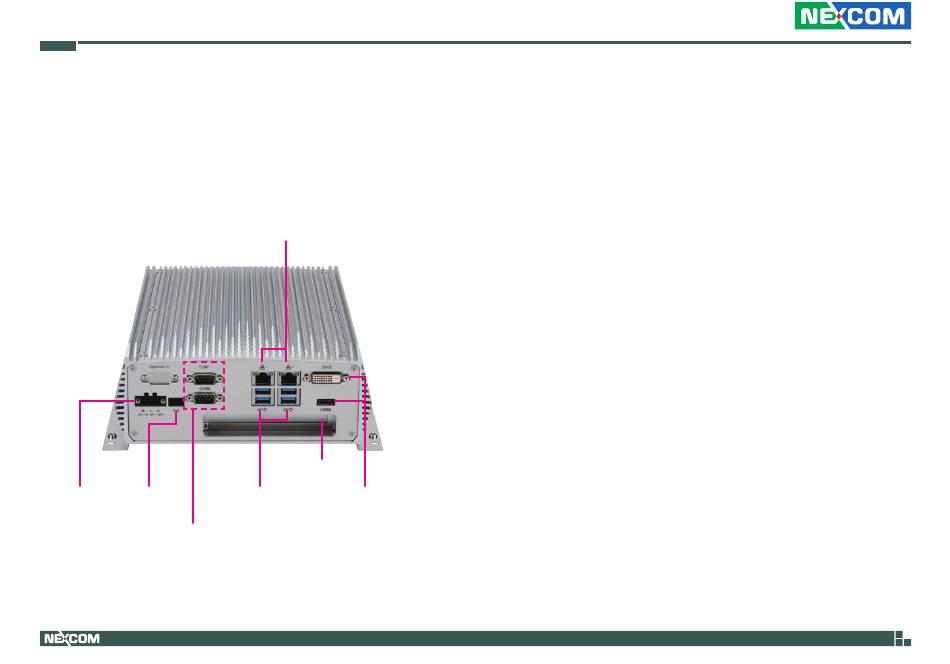

Rear Panel
9V-30V
Remote
DC Input
On/Off
COM1 & COM2:
RS232/422/485
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
LAN1/LAN2
Expansion
slots
USB 3.0
DVI-D &
HDMI
9V-30V DC Input
Used to plug a DC power cord.
Remote On/Off Switch
Used to connect a remote to power on/off the system.
COM1 & COM2
Two DB9 ports used to connect RS232/422/485 compatible devices.
LAN1/LAN2
Used to connect the system to a local area network.
USB 3.0
Used to connect USB 3.0/2.0 devices.
DVI-D
Used to connect a DVI-D interface monitor.
HDMI
Used to connect a HDMI interface monitor.
Expansion Slots
NISE 3800E & NISE 3800E-H110: One PCIe x4 expansion slot
NISE 3800E2: Two PCIe x4 expansion slots
NISE 3800P2: Two PCI expansion slots
NISE 3800P2E: One PCIe x4 and one PCI expansion slot
NISE 3800R: Two x 2.5" HDD expansion brackets.
