Chapter 2: Jumpers and Connectors

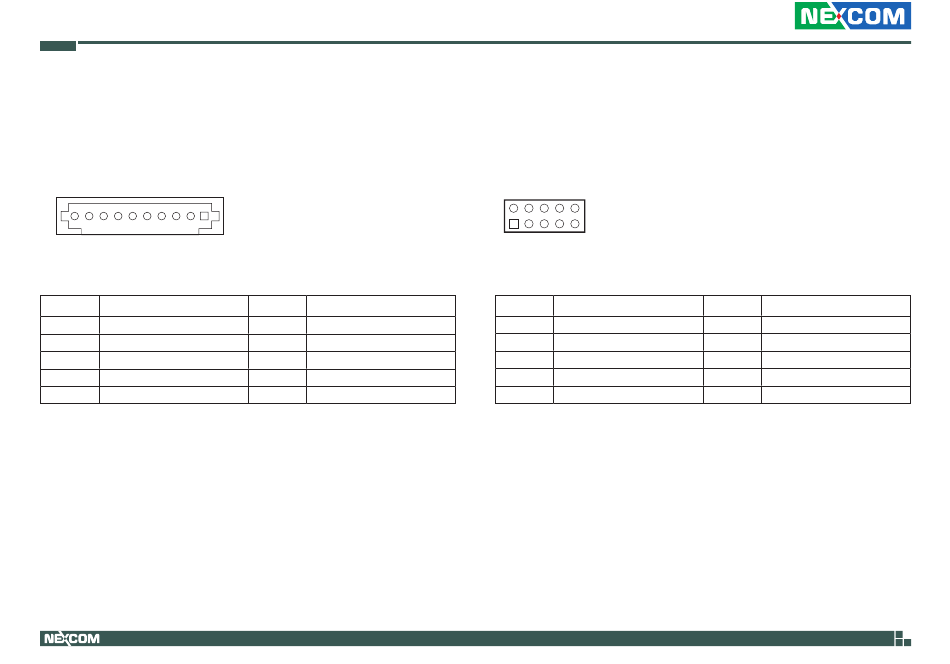

Internal COM4 Connector

Connector type: 1x10 10-pin header JST, 1.0mm pitch
Connector location: J3
10
Pin Definition
1 SP4_DCD
3 SP4_TXD
5 GND
7 SP4_RTS
9 SP4_RI
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
1
Pin Definition
2 SP4_RXD
4 SP4_DTR
6 SP4_DSR
8 SP4_CTS
10 VCC12

Internal GPIO Pin Header

Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: JP8
2 10
1 9
Pin Definition
1 VCC5
3 ICH_GPO0_OUT
5 ICH_GPO1_OUT
7 ICH_GPO2_OUT
9 ICH_GPO3_OUT
23
Pin Definition
2 GND
4 ICH_GPI0_IN
6 ICH_GPI1_IN
8 ICH_GPI2_IN
10 ICH_GPI3_IN
