Chapter 2: Jumpers and Connectors

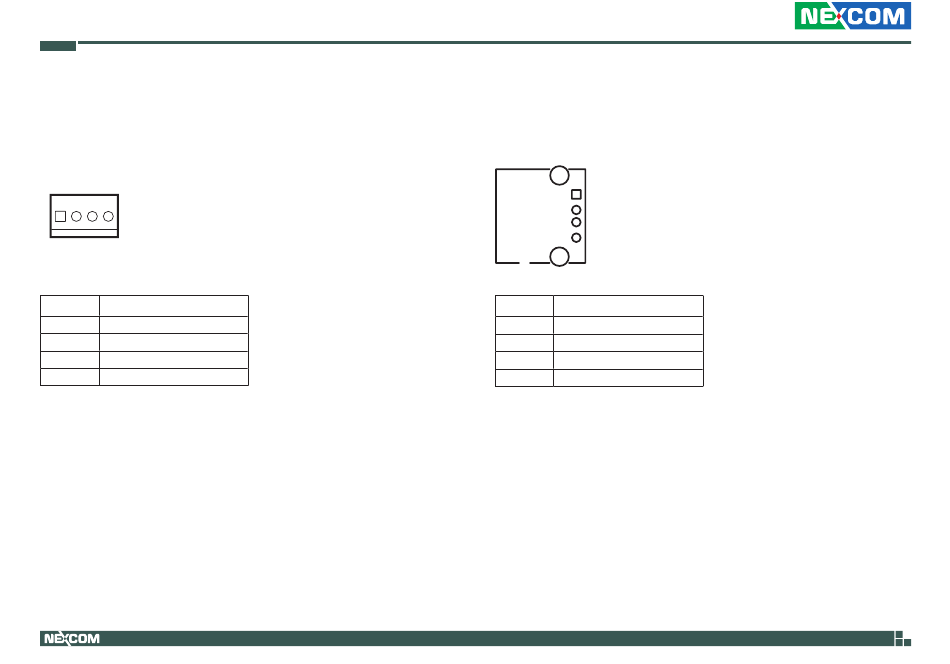

Fan2 Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: FAN2
1
4
Pin
Definition
1
GND
2
FAN1_12V_2_C
3
FAN_TAC2_C
4
FAN_CTL2_C
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
USB 2.0 Connector
Connector type: USB Port
Connector location: USB2
1
4
Pin
Definition
1
P5V_USB_P8
2
USB2N8_C
3
USB2P8_C
4
GND
36
NISE 3800 Series User Manual
