External I/O Interfaces - Rear Panel

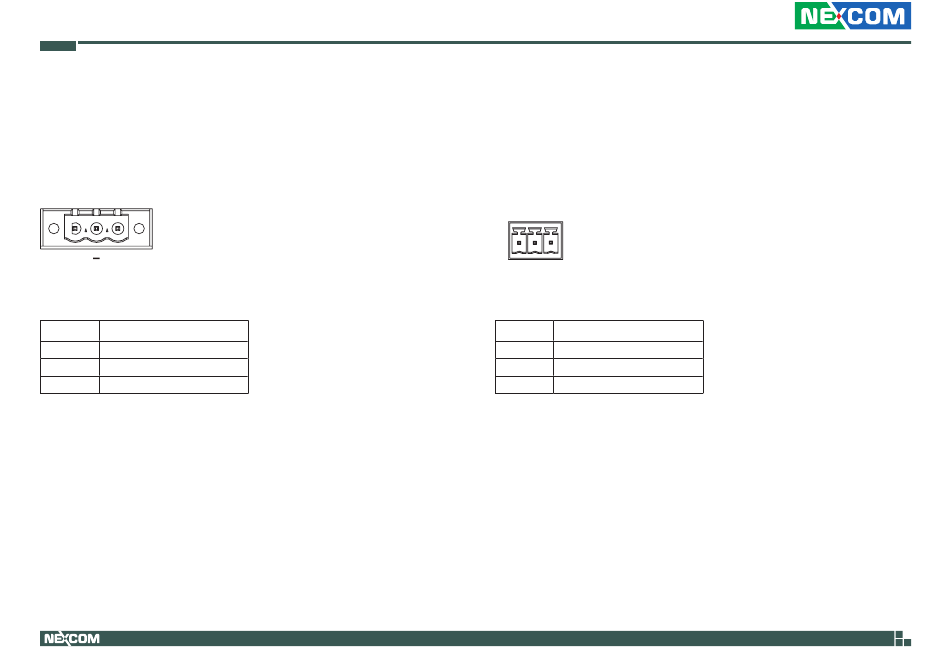

9V - 30V DC Power Input

Connector type: Phoenix Contact 1x3 3-pin terminal block
Connector location: PW1
3 1
+
G
Pin Definition
1 VIN_1
2 VIN_VSS
3 Chassis_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Remote Power On/Off & S3 Connector
Connector type: 3-pin switch
Connector location: JP6
3 1
Pin Definition
1 PWRBTN#_J
2 GND
3 SLP_S3#_C
