Chapter 2: Jumpers and Connectors

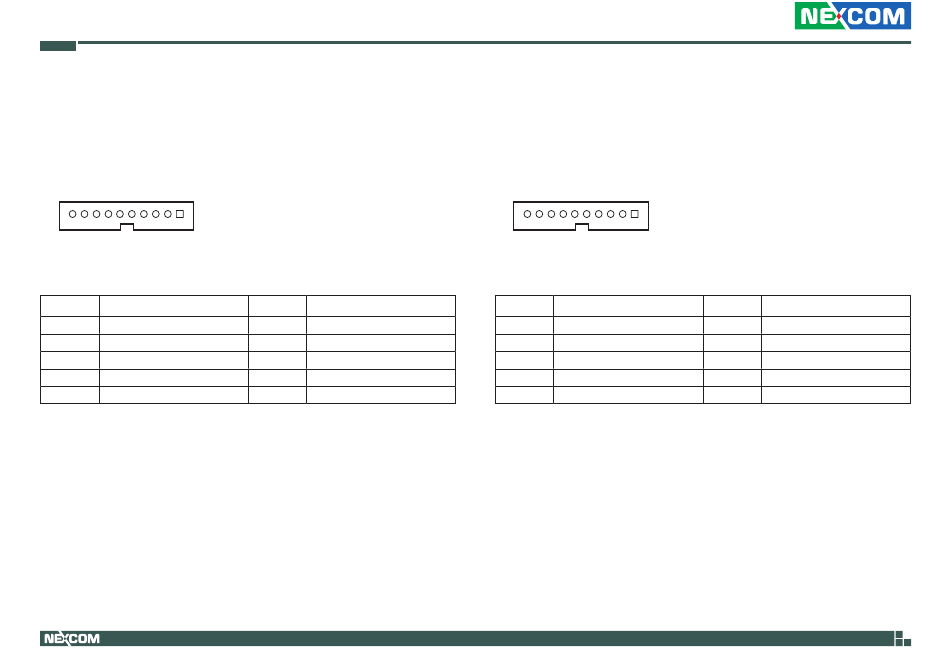

COM Port 3 Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: COM1
10 1
10 1
Pin Definition
1 COM_DCD#3_C
3 COM_TXD3_C
5 GND
7 COM_RTS#3_C
9 COM_ISOR3#_C
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 COM_RXD3_C
4 COM_DTR#3_C
6 COM_DSR#3_C
8 COM_CTS#3_C
10 GND

COM Port 4 Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: COM2
10
10
Pin Definition
1 COM_DCD#4_C
3 COM_TXD4_C
5 GND
7 COM_RTS#4_C
9 COM_ISOR4#_C
34
1
1
Pin Definition
2 COM_RXD4_C
4 COM_DTR#4_C
6 COM_DSR#4_C
8 COM_CTS#4_C
10 GND
