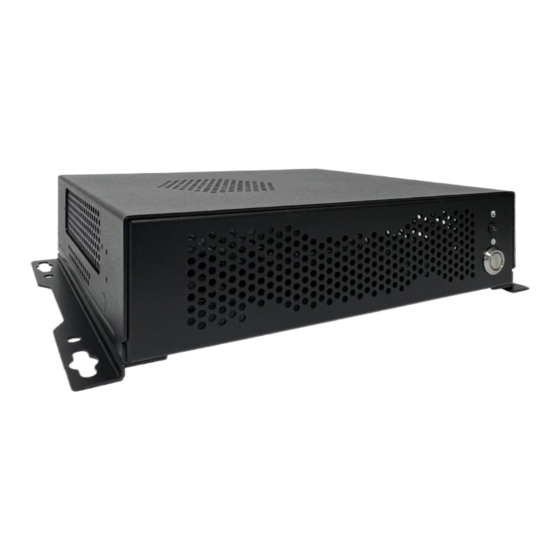

- Page 1 NEXCOM International Co., Ltd. Intelligent Platform & Services Business Unit Edge Computing System Neu-X303mini User Manual NEXCOM International Co., Ltd. www.nexcom.com Published November 2023...
-
Page 2: Table Of Contents
M.2 M-Key PCIe 4.0 Connector (2280) ...........17 Physical Features ..................4 External I/O Interfaces ................18 Front Panel ..................4 DC Power Input Jack (+12V only) ...........18 Rear Panel ...................4 LAN Connectors ................19 Mechanical Dimensions ................5 Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 3 BIOS Setup Utility ..................35 Main ....................35 Advanced ..................36 Security .....................43 Boot ....................44 Save & Exit ..................45 MEBx ( iAMT) ..................46 Appendix A: How to flash the BIOS Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 4: Preface
Acknowledgements The product(s) described in this manual complies with all applicable Neu-X303mini is a trademark of Nexcobot Co., Ltd. All other product names European Union (CE) directives if it has a CE marking. For computer systems mentioned herein are registered trademarks of their respective owners. -
Page 5: Rohs Compliance
NexCOBOT are renowned. The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 6: Warranty And Rma
“Out of Warranty.” ▪ Any products returned by NexCOBOT to other locations besides the customers’ site will bear an extra charge and will be billed to the customer. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 7 ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 8: Safety Information
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. viii Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 9: Safety Precautions
11. Hold the board only by its edges. Be careful not to touch any of the components, contacts or connections. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 10: Technical Support And Assistance
1. Handling the unit: carry the unit with both hands and handle it with care. 2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 11: Global Service Contact Information
16F, No.250, Sec.2, Chongde Rd., Tel: +886-2-8226-7786 Tel: +886-2-8976-3077 Beitun District, Fax: +886-2-8226-7782 Email: sales@diviotec.com Taichung City, 406, Taiwan, R.O.C. Email: services@tmrtek.com www.diviotec.com Tel: +886-4-2249-1179 www.tmrtek.com Fax: +886-4-2249-1172 Email: jacobhuang@nexaiot.com www.nexaiot.com Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 12 9F, Tamachi Hara Bldg., LongGang District, 4-11-5, Shiba Minato-ku, ShenZhen, 518112, China Tokyo, 108-0014, Japan Tel: +86-755-8364-7768 Tel: +81-3-5419-7830 Fax: +86-755-8364-7738 Fax: +81-3-5419-7832 Email: steveyang@nexcom.com.tw Email: sales@nexcom-jp.com www.nexcom.cn www.nexcom-jp.com Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 13: Package Contents
Preface Package Contents Ordering Information Before continuing, verify that the Neu-X303mini package that you received The following below provides ordering information for Neu-X303mini. is complete. Your package should have all the items listed in the following table. Neu-X303mini (P/N: 10W10X30300X0) -
Page 14: Chapter 1: Product Introduction
▪ Onboard M.2 2280 Key M with PCIe signal for storage modules ▪ Onboard M.2 2230 Key E for optional Wi-Fi modules Front ▪ Compact design (L: 183mm, W: 137.9mm, H: 47.9mm) ▪ 12V DC in Rear Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 15: Hardware Specifications
▪ 1 x M.2. 2280 Key M (PCIex4) storage and support NVME ▪ 1 DPC, total 2 SO-DIMM socket – 2 x 262-pin SO-DIMM socket, support DDR5 (up to 4800MT/s) non- ECC memory – 8G~32GB. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 16 ▪ 183mm (L) x 140mm (W) x 48mm (H) Operating System ▪ Windows 10 64-bit ▪ Windows 11 Enterprise or LTSC (64-bit) -Evaluation version ▪ Linux 64-bit Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 17: Physical Features
Antenna Hole Storage LED Antenna Hole DisplayPort 1.4 USB 3.2 2x2 Type-C/ Power Button with LED DisplayPort 1.4 DC Input HDMI 2.1 LAN Ports USB 3.2 2x2 Type-A Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 18: Mechanical Dimensions
Chapter 1: Product Introduction Mechanical Dimensions 199.0 183.0 Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 19: Chapter 2: Jumpers And Connectors
Static electricity can damage many of the electronic ▪ Use correct screws and do not over tighten screws. components. Humid environments tend to have less static electricity than Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 20: Jumper Settings
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off). Two-Pin Jumpers: Open (Left) and Short (Right) Three-Pin Jumpers: Pins 1 and 2 are Short Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 21: Locations Of The Jumpers And Connectors
The figures below show the location of the jumpers and connectors. Refer to this chapter for detailed pin settings and definitions of the connectors marked in pink on this figure. Top View FAN1 CN3 CN4 Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 22: Bottom View
Chapter 2: Jumpers and Connectors Bottom View Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 23: Jumpers
Connector type: 1x3 3-pin header Connector type: 1x3 3-pin header Connector location: JP1 Connector location: JP2 Definition Definition Normal operation Clear ME Register Discharge Clear CMOS 1-2 On: default Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 24: Connector Pin Definitions
RPMC Programming Header Connector location: J2 Connector type: 2x3 6-pin header Connector location: J1 Definition Definition Definition Definition +1.8V +1.8V SPI0_CS0_R_N SPI0_CLK_FLASH0_R SPI0_CS1_FLASH1_R_N SPI0_CLK_FLASH1_R SPI0_MISO_FLASH0_R SPI0_MOSI_FLASH0_R SPI0_MISO_FLASH1_R SPI0_MOSI_FLASH1_R Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 25: Pwr Button / Reset Button / Hdd Led / Pwr Led
Connector location: J3 Connector location: J4 Definition Definition Definition Definition HDD_LED+ PWR_LED+ CCG6_I2C_SCL_SCB1 +VDDD_CCG6_TCP0 HDD_LED- PWR_LED- CCG6_I2C_SDA_SCB1 Power On Butten GPPC_B11_PMC_ TCP0_CCG6_XRES_I ALERT_N RESET# CCG6_I2C_SCL_SCB0 TCP0_CCG6_I2C_CFG CCG6_I2C_SDA_SCB0 TCP0_CCG6_SWD_IO Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 26: Battery Connector
Battery Connector Internal USB2.0 Header (2-port) Connector type: 1x2 2-pin header Connector type: 1x6 6-pin header Connector location: J5 Connector location: J6 Definition Definition USB2N USB2P USB1N USB1P Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 27: 80 Debug Port Connector
Connector type: 1x10 10-pin header Connector type: 1x9 9-pin header Connector location: J7 Connector location: J8 Definition Definition Definition PLTRST# ESPI_CLK ESPI_CS# ESPI_IO3 ESPI_IO2 ESPI_IO2 ESPI_IO0 ESPI_RST# +V3P3A Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 28: Fan Connector
Chapter 2: Jumpers and Connectors FAN Connector Connector type: 1x4 4-pin header Connector location: FAN1 Definition +12V FAN SPEED DETECT FAN SPEED CONTROL Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 29: E-Key Connector (2230)
USBP 3VSB USBN LED1# CLK_PCIEP0 CLK_PCIEN0 SUSCLK PLTRST# CLKREQ# BT_DISABLE# WAKE# WIFI_DISABLE# LED2# PCIE_TXP1 PCIE_TXN1 PCIE_RXP1 PCIE_RXN1 PCIE_TXP0 CLK_PCIEP1 3VSB PCIE_TXN0 CL_RST# CLK_PCIEN1 3VSB CL_DAT PCIE_RXP0 CL_CLK Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 30: M-Key Pcie 4.0 Connector (2280)
PCIE4_A_P3_M.2_SSD_RX_DP M2M_DSS# PCIE4_A_P0_M.2_SSD_TX_DN PCIE4_A_P3_M.2_SSD_TX_DN +V3P3S PCIE4_A_P0_M.2_SSD_TX_DP RESET# +V3P3S PCIE4_A_P3_M.2_SSD_TX_DP +V3P3S CLKREQ# +V3P3S PCIE4_A_P2_M.2_SSD_RX_DN CLK_SRC4_DN WAKE# PCIE4_A_P2_M.2_SSD_RX_DP CLK_SRC4_DP PCIE4_A_P2_M.2_SSD_TX_DN PCIE4_A_P2_M.2_SSD_TX_DP PCIE4_A_P1_M.2_SSD_RX_DN PCIE_M.2_CPU_SSD1_DETECT +V3P3S PCIE4_A_P1_M.2_SSD_RX_DP +V3P3S +V3P3S PCIE4_A_P1_M.2_SSD_TX_DN PCIE4_A_P1_M.2_SSD_TX_DP Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 31: External I/O Interfaces
External I/O Interfaces DC Power Input Jack (+12V only) Connector type: 11 x 20.2 x 12.7mm 90D DIP 3P Center Pin 2.5mm 12V/12.5A Connector location: CN1 Definition +12VSUS Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 32: Lan Connectors
Blinking Yellow MDI_0N_A MDI_0N_B No Active MDI_1P_A MDI_1P_B MDI_1N_A MDI_1N_B MDI_2P_A MDI_2P_B MDI_2N_A MDI_2N_B MDI_3P_A MDI_3P_B MDI_3N_A MDI_3N_B CT_A CT_B +3V3_SB +3V3_SB ACTLED#_A ACTLED#_B LINK1000#_A LINK1000#_B LINK2500#_A LINK2500#_B Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 33: Usb3.2 2X2 + Dp Type-C Connector
SBU2 Definition Definition Definition Definition USB2_1N USB2_2N USB2_1P USB2_2P SSTX1+ SSRX1+ SSTX1- SSRX1- USB3_RX1N USB3_RX2N USB3_RX1P USB3_RX2P SBU2 USB3_TX1N USB3_TX2N USB3_TX1P USB3_TX2P SBU1 SSRX2- SSTX2- SSRX2+ SSTX2+ Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 34: Dp1.4 + Hdmi 2.1 Connector
Connector location: CN8 Definition Definition Definition Definition TX0P TX2P TX3N CLKN TX0N CONFIG1 TX2N TX1P CONFIG2 TX1P AUXP TX1N TX1N TX2P AUXN TX0P TX2N TX0N TX3P +3.3V CLKP Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 35: Block Diagram
WLAN + BT USB2-P7 (ADP-PS) BIOS ROM 32MB W25R256JWFIQ Secure Flash ROM W77Q32JWSFIN SLB9670VQ2 Super I/O CPU Fan F81804 UART1 Transceiver RS-232 Monitor ： ： ： ： +3.3V/+5V/Core TRS213IDBR Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 36: Chapter 3: System Setup
SO-DIMM slots. It’s recommended that you install the same brand and speed of memory modules if you want to plug them into both of the slots. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 37: Installing An M.2 M-Key Ssd Module (M-Key 2280)
Insert the M.2 SSD module into the M.2 slot at a 45-degree angle until the of the cover highlighted in the figure below. gold-plated connector on the edge of the module completely disappears. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 38 Chapter 3: System Setup Once the module has been fully inserted, tighten the screw into the mounting hole to secure it in place. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 39: Installing A Cpu
Chapter 3: System Setup Installing a CPU Remove the cover from the chassis by loosening the screws highlighted in the figure below. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 40 Loosen the screws highlighted below to expose the CPU socket. Retention Tab Load Lever Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
- Page 41 The CPU will fit in only one orientation and can easily be CAUTION! the socket may bend the pins and damage the CPU. inserted without exerting any force. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
- Page 42 Chapter 3: System Setup Use the thermal grease to dispense on CPU surface such as below. Reinstall the cooler module with the screws removed earlier. Dispense 6 dots Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 43: Installing A Wi-Fi Module
Insert the Wi-Fi module into the M.2 slot at a 45-degree angle until the gold-plated connector on the edge of the module completely disappears. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 44 Once the Wi-Fi module is installed, place a thermal pad on the top of the highlighted in the figure below. Wi-Fi module. Following the previous disassembly steps, reassemble the cooler module and cover. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 45: Chapter 4: Bios Setup
BIOS is updated in the future. second, to make settings appropriate for the way you use the computer. To check for the latest updates and revisions, visit the NEXCOM website at When to Configure the BIOS www.nexcom.com.tw. -
Page 46: Default Configuration
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Load optimized default values. Press the key to enter Setup: Saves and exits the Setup program. Press <Enter> to enter the highlighted sub-menu Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 47 When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 48: Bios Setup Utility
Use arrow keys to select among the items and press accept or enter the submenu. Main The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 49: Advanced
(G3 state) features according to your preference. Setting incorrect field values may cause the system to malfunction. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... - Page 50 Enable or disable SHA256 PCR Bank. C states Pending operation Enable or disables CPU to go to C states when it is not 100% utilized. Schedule an operation for the security device. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
- Page 51 ACPI Sleep State Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM). Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
- Page 52 Display the Super I/O chip used on the board. Change Settings Select an optimal setting for the Super IO device. Serial Port 1 Configuration Enter the submenu to set the parameters for serial port 1. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
- Page 53 This section is used to monitor hardware status such as temperature, fan speed and voltages. SYSFAN Mode Select a fan control mode. SYSFAN Setting Enter the SYSFAN Setting submenu. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
- Page 54 Ipv4 PXE Support Enable or disable IPv4 PXE support. If disabled, the IPv4 boot option will not be created. Ipv4 HTTP Support Enable or disable Ipv4 HTTP support. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
- Page 55 NameSpace Test will take longer to complete. Run Device Self Test Run the device self test according to the self test option and action selected. Pressing the Esc key will abort the test. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
-
Page 56: Security
Select this to configure the Secure Boot mode. Standard Fixed scure boot policy. Custom Secure boot policy variables can be configured by a physically present user without full authentication. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 57: Boot
NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 58: Save & Exit
<Enter>. <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 59: Mebx ( Iamt)
Chapter 4: BIOS Setup MEBx ( iAMT) Intel(R) ME Password Set a password for logging into MEBx. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual... -
Page 60: Appendix A: How To Flash The Bios
BIOS in the correct order of the file names, X303C0X_1 and X303C0X_2. Once the update is completed, disable the UEFI Shell in the BIOS, save the changes, and reboot the system. Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved. Neu-X303mini User Manual...
