Chapter 2: Jumpers and Connectors

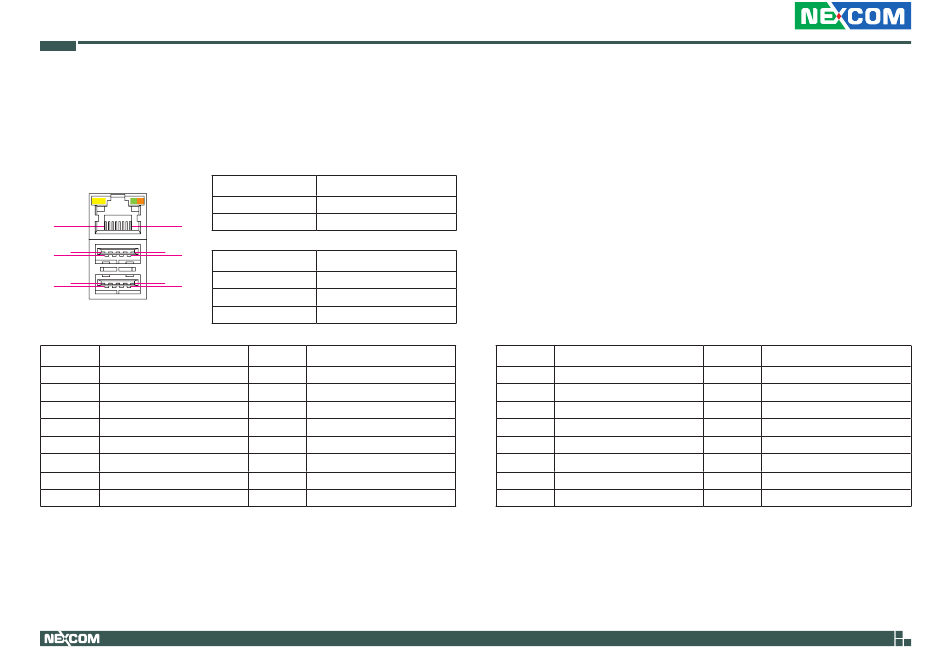

LAN3 and USB 3.0 Ports

Connector type: RJ45 port with LEDs
Dual USB 3.0 ports, Type A
Connector location: LAN1A (USB) and LAN1B (LAN)
ACT LINK
27 20
18 14
10 13
9 5
1 4
Pin Definition
1 P5V_USB_P01
3 USB2P0_C
5 USB3RN1_C
7 GND
9 USB3TP1_C
11 USB2N1_C
13 GND
15 USB3RP2_C
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Act Status
Flashing Yellow Data activity
Off No activity
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off No link
Pin Definition
2 USB2N0_C
4 GND
6 USB3RP1_C
8 USB3TN1_C
10 P5V_USB_P01
12 USB2P1_C
14 USB3RN2_C
16 GND
Pin Definition
17 USB3TN2_C
19 LAN1_VCC
21 LAN1_MDI0N
23 LAN1_MDI1N
25 LAN1_MDI2N
27 LAN1_MDI3N
29 LAN1_ACTPW
31 LAN1_LINK100#_LED
25
Pin Definition
18 USB3TP2_C
20 LAN1_MDI0P
22 LAN1_MDI1P
24 LAN1_MDI2P
26 LAN1_MDI3P
28 GND
30 LAN1_ACT#_LED
32 LAN1_LINK
