Chapter 3: System Setup

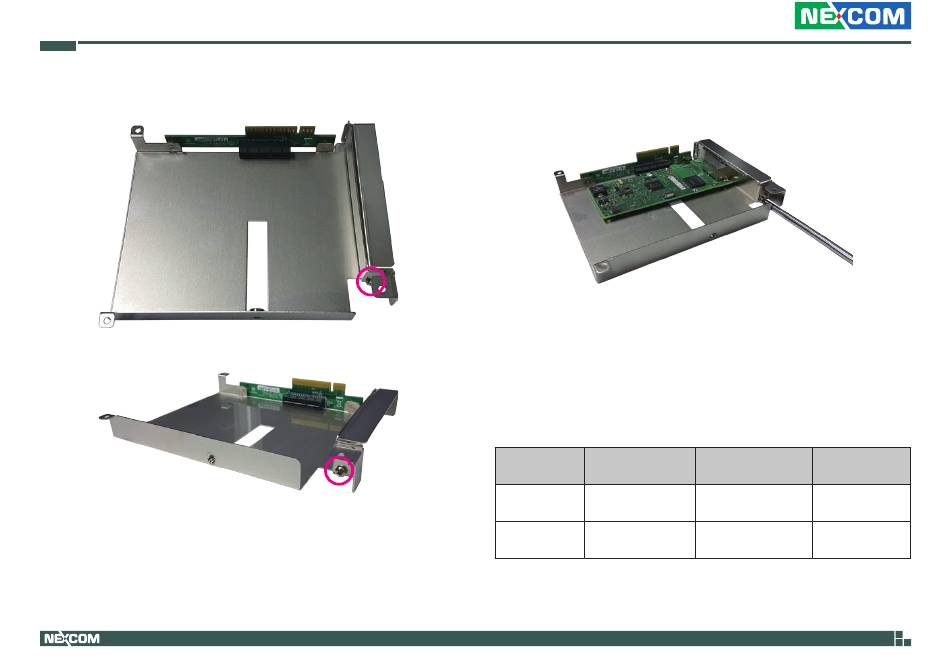

3. Remove the screw on the expansion cover.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
4. Insert the PCIe/PCI expansion card and fasten the screw to secure the
card in place.

PCI Volts Configuration on NISE 3800 Riser Cards

The PCI Volts is configured to 5V as default on all NISE 3800 riser cards.
Riser
Model
Configuration
NISE 3800P2 2x PCI Slots
1x PCI Slot and
NISE 3800P2E
1x PCIe Slot
60
Riser Jumper Default Volts
Location Setting
JP1
2-3
2-3 (5V), 1-2 (3.3V)
JP3
2-3
2-3 (5V), 1-2 (3.3V)
