Chapter 2: Jumpers and Connectors

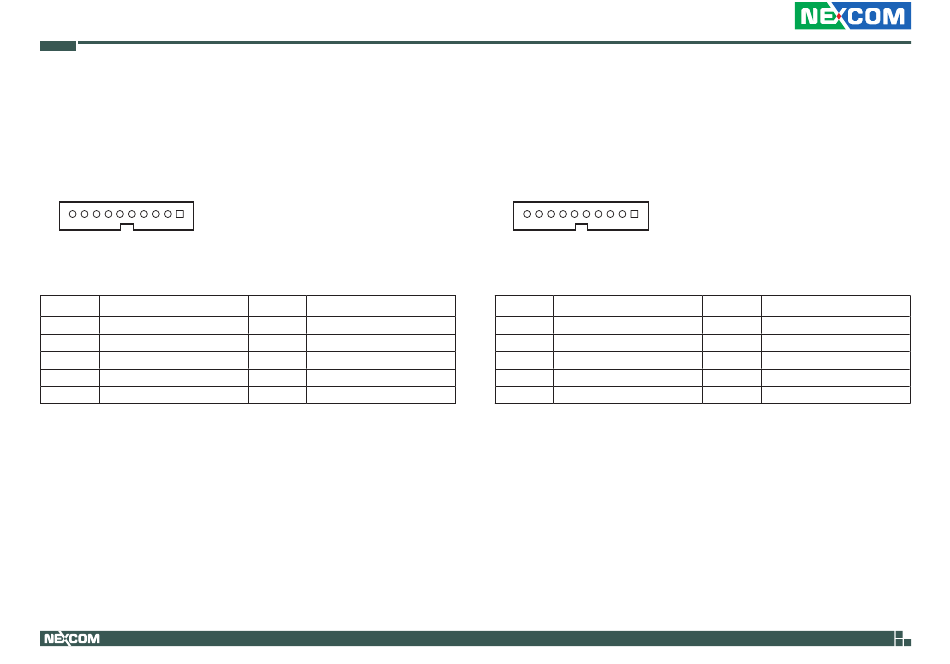

COM Port 1 Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: COM1
10 1
10 1
Pin Definition
1 COM_ISODCD#1
3 COM_ISOTXD1
5 ISO_GND
7 COM_ISORTS#1
9 COM_ISORI#1
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 COM_ISORXD1
4 COM_ISODTR#1
6 COM_ISODSR#1
8 COM_ISOCTS#1
10 ISO_GND

COM Port 2 Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: COM3
10
10
Pin Definition
1 COM_ISODCD#2
3 COM_ISOTXD2
5 ISO_GND
7 COM_ISORTS#2
9 COM_ISORI#2
33
1
1
Pin Definition
2 COM_ISORXD2
4 COM_ISODTR#2
6 COM_ISODSR#2
8 COM_ISOCTS#2
10 ISO_GND
