Chapter 3: System Setup

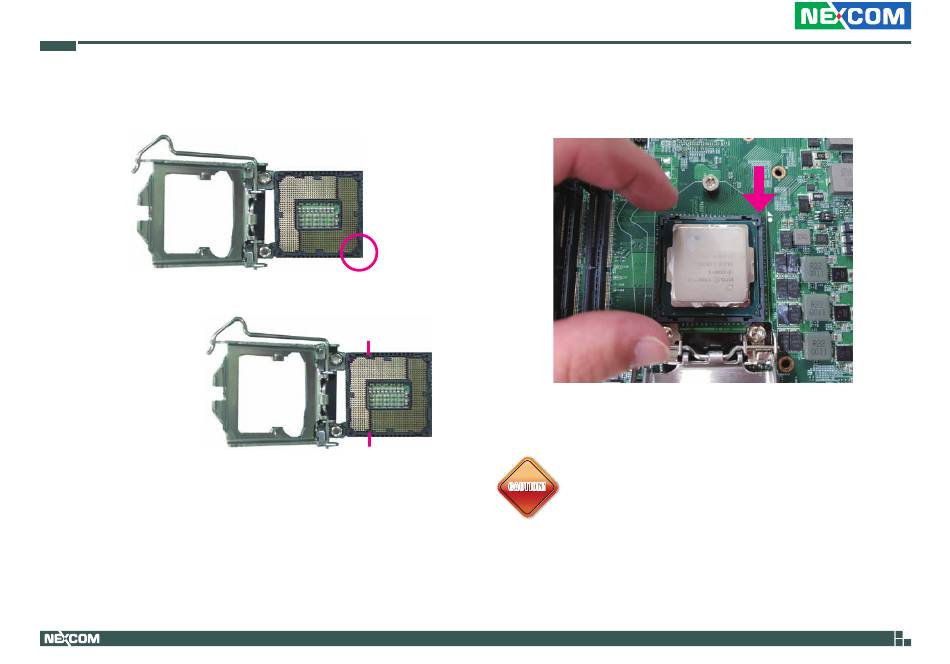

3. Insert the CPU into the socket. The triangular edge on the CPU must align
with the corner of the CPU socket shown on the photo.
The CPU's notch will at
the same time fit into the
socket's alignment key.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Alignment key
Alignment key
CAUTION! CAUTION!
CAUTION!
46
▪ Handle the CPU by its edges and avoid touching the pins.
▪ The CPU will fit in only one orientation and can easily be
inserted without exerting any force.
