Chapter 3: System Setup

Wallmount Brackets

The wallmount brackets provide a convenient and economical way of
mounting the system on the wall.
1. The mounting holes are located at the bottom of the system. Secure the
brackets on each side of the system using the provided mounting screws.
2. Secure the brackets to the system by inserting four retention screws
(M6*10mm) into each bracket.

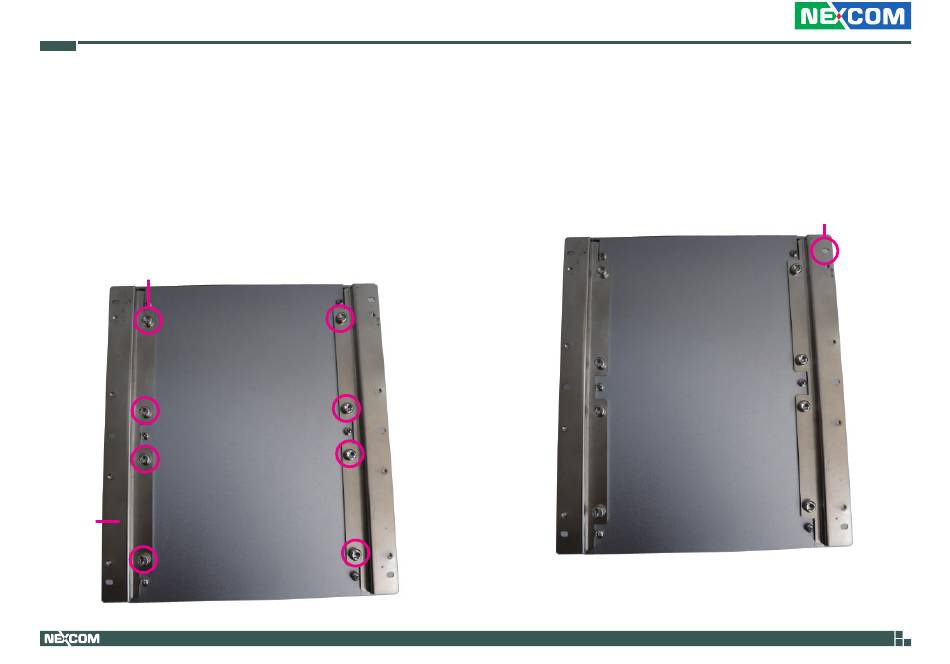

Secure the bracket to the system
Wallmount
bracket
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
3. Now mount the system on the wall by fastening screws through the
bracket's mounting holes.
43
Fasten screws to mount the system to the wall
