Chapter 3: System Setup

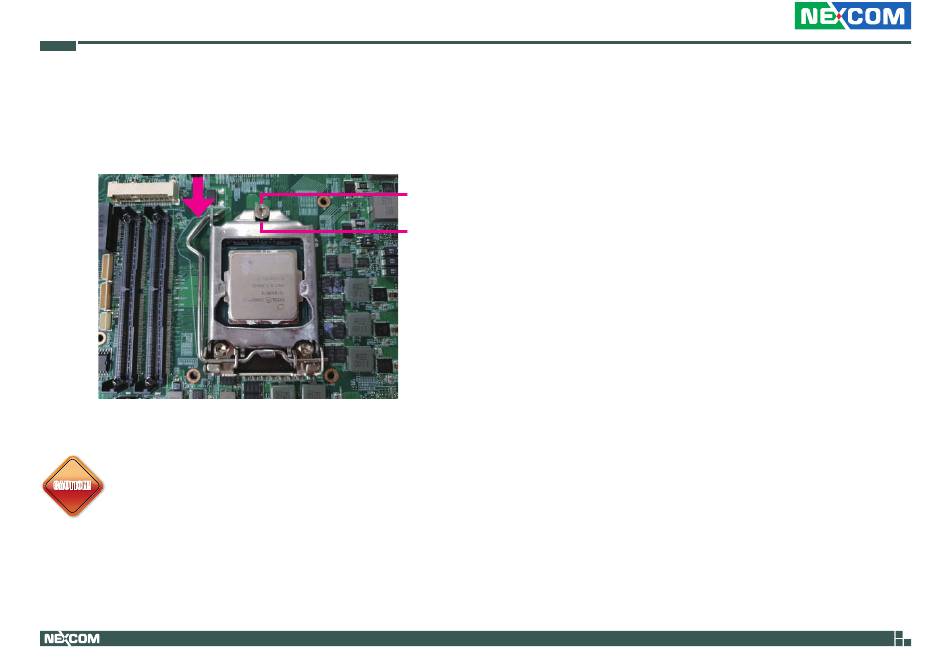

4. With the CPU installed, close the retention bracket and then hook the
load lever under the retention tab. Ensure that the notch on the retention
bracket is slid under the screw before lowering the load lever as shown
below.
Do not force the CPU into the socket. Forcing the CPU into
CAUTION!
CAUTION!
CAUTION!
the socket may bend the pins and damage the CPU.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Screw
Notch
47
NISE 3800 Series User Manual
