Chapter 1: Product Introduction
NISE 3800E-H110/NISE 3800R Overview

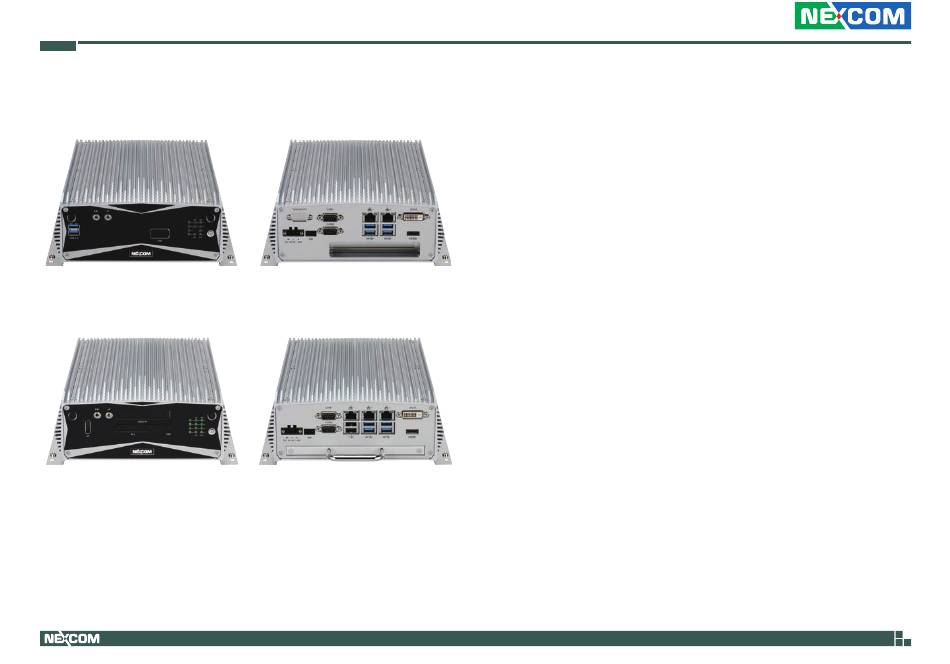

NISE 3800E-H110 Front View
NISE 3800R Front View
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
NISE 3800E-H110 Rear View
NISE 3800R Rear View
Key Features
▪ Support 6th generation Intel
embedded processor
▪ Intel
H110 PCH (NISE 3800E-H110); Intel
®
▪ Support 1 x 2.5" SATA HDD (NISE 3800E-H110)
▪ Support 2 x 2.5" SATA HDD (NISE 3800R)
▪ 1 x DVI-D and 1 x HDMI with independent display support
(NISE 3800E-H110)
▪ 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
(NISE 3800R)
▪ Two Intel
GbE LAN ports; support WoL, teaming and PXE
®
(NISE 3800E-H110)
▪ Three Intel
®
GbE LAN ports; support WoL, teaming and PXE
(NISE 3800R)
▪ 1 x SIM card socket (NISE 3800E-H110)
▪ 1 x External M.2 socket and 1 x SIM card socket (NISE 3800R)
▪ 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
▪ 2 x Internal mini-PCIe sockets support optional Wi-Fi/3.5G/mSATA/Fieldbus
▪ Support +9V to 30VDC input; ATX power mode
▪ One PCIe x4 expansion (NISE 3800E-H110)
▪ 1 x Two 2.5" HDD bracket trays (NISE 3800R)
2
Core™ i7/i5/i3 LGA socket type
®
Q170 PCH (NISE 3800R)
®
