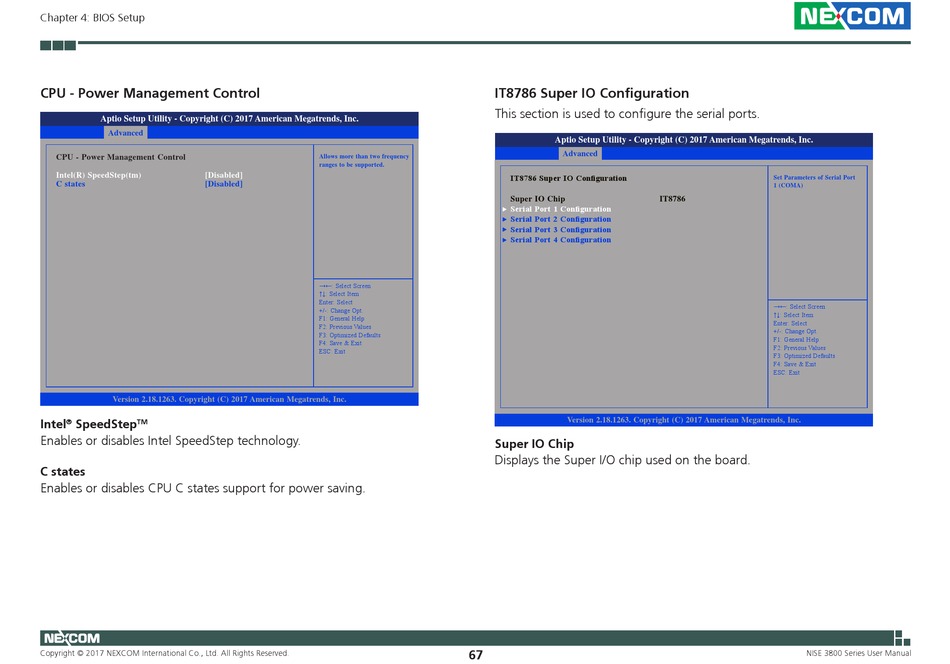

Chapter 4: BIOS Setup
CPU - Power Management Control
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
CPU - Power Management Control
Intel(R) SpeedStep(tm) [Disabled]
C states [Disabled]
Version 2.18.1263. Copyright (C) 2017 American Megatrends, Inc.
Intel ® SpeedStep TM
Enables or disables Intel SpeedStep technology.
C states
Enables or disables CPU C states support for power saving.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
IT8786 Super IO Configuration
This section is used to configure the serial ports.
Allows more than two frequency
ranges to be supported.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Super IO Chip
Displays the Super I/O chip used on the board.
67
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
IT8786 Super IO Configuration
Super IO Chip IT8786
Serial Port 1 Configuration

Serial Port 2 Configuration

Serial Port 3 Configuration

Serial Port 4 Configuration

Version 2.18.1263. Copyright (C) 2017 American Megatrends, Inc.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
