Chapter 2: Jumpers and Connectors

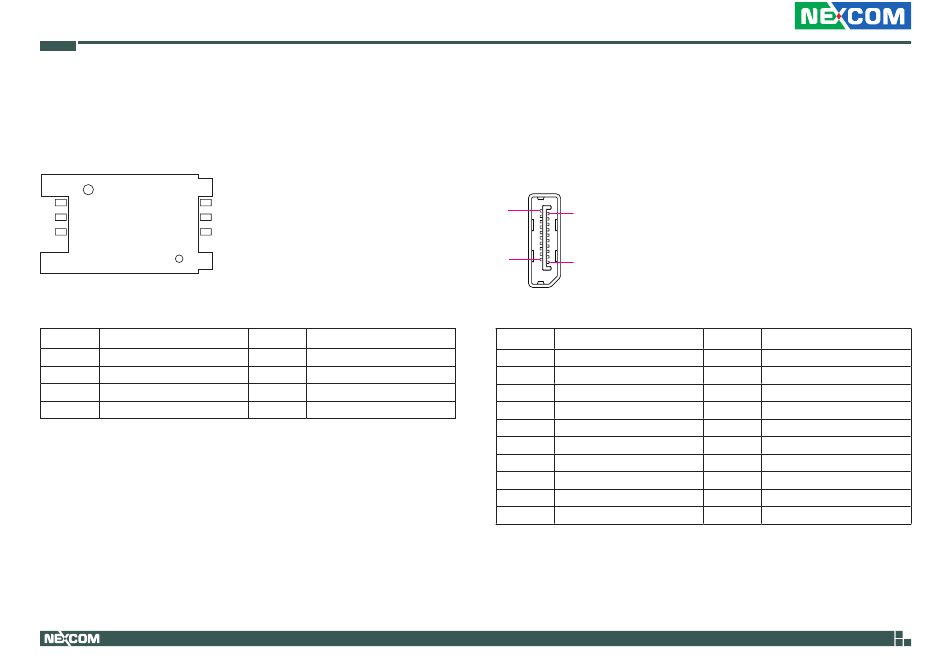

SIM Card Socket
Connector location: IDE1
C5
C1
C6
C2
C7
C3
Pin
Definition
C1
UIM_PWR
C3
UIM_SIM_CLK
C6
UIM_VPP
MH1
GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
C2
UIM_RESET
C5
GND
C7
UIM_DATA
MH2
GND
DisplayPort
(NISE 3800E/E2/P2/P2E & NISE 3800R Only)
Connector type: DisplayPort
Connector location: CN1
1
2
19
20
Pin
Definition
1
HDMI2_DATA0_P
3
HDMI2_DATA0_N
5
GND
7
HDMI2_DATA2_P
9
HDMI2_DATA2_N
11
GND
13
DPC_CONFIG1
15
DPC_AUXP_C
17
DPC_AUXN_C
19
GND
23
Pin
Definition
2
GND
4
HDMI2_DATA1_P
6
HDMI2_DATA1_N
8
GND
10
HDMI2_CLK_P
12
HDMI2_CLK_N
14
DPC_CONFIG2
16
GND
18
DPD_HPD_C
20
DP_PWR_C
NISE 3800 Series User Manual
