Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

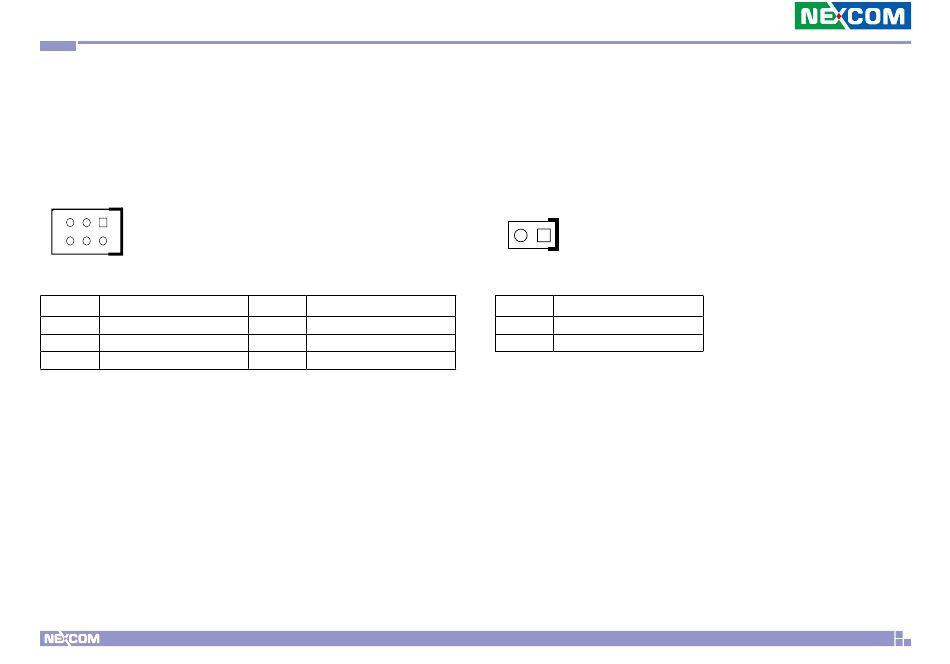

LVDS Inverter Connector

Connector type: 2x3 6-pin header JST, 2.54mm pitch
Connector location: INV
5
1
6 2
Pin Definition
1 GND
3 12V
5 INV_ENABKL
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 12V
6 BKLTCTRL_V

System Reset Header

Connector type: 1x2 2-pin header, 2.54mm pitch
Connector location: RESET
2 1
Pin Definition
1 RESET#
2 GND
13
