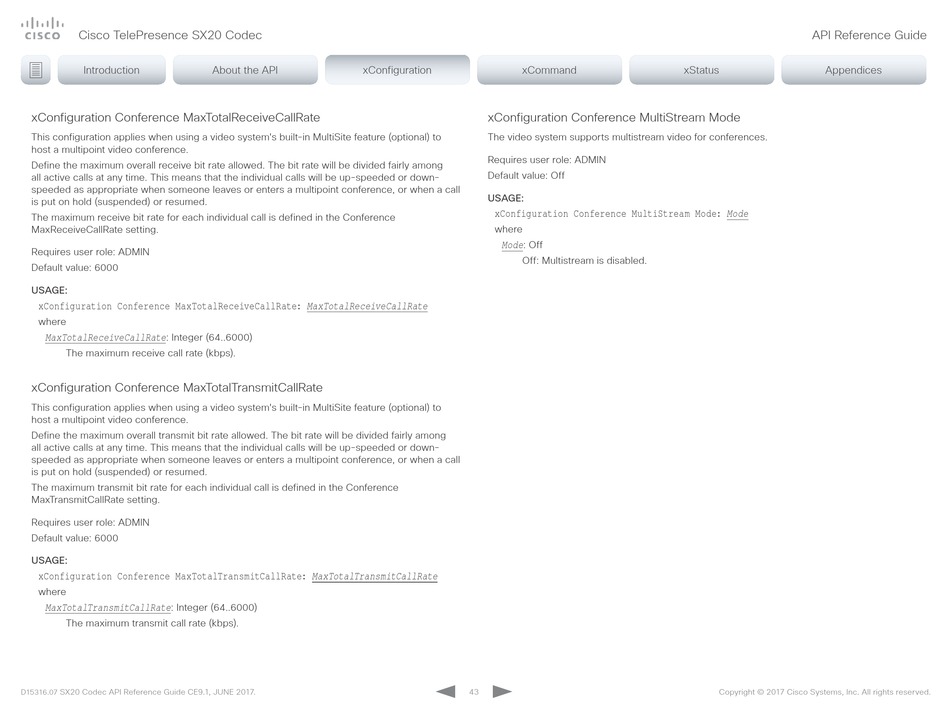

xConfiguration Conference MaxTotalReceiveCallRate

This configuration applies when using a video system's built-in MultiSite feature (optional) to
host a multipoint video conference.
Define the maximum overall receive bit rate allowed. The bit rate will be divided fairly among
all active calls at any time. This means that the individual calls will be up-speeded or down-
speeded as appropriate when someone leaves or enters a multipoint conference, or when a call
is put on hold (suspended) or resumed.
The maximum receive bit rate for each individual call is defined in the Conference
MaxReceiveCallRate setting.
Requires user role: ADMIN
Default value: 6000
USAGE:
xConfiguration Conference MaxTotalReceiveCallRate:
where
: Integer (64..6000)
MaxTotalReceiveCallRate
The maximum receive call rate (kbps).

xConfiguration Conference MaxTotalTransmitCallRate

This configuration applies when using a video system's built-in MultiSite feature (optional) to
host a multipoint video conference.
Define the maximum overall transmit bit rate allowed. The bit rate will be divided fairly among
all active calls at any time. This means that the individual calls will be up-speeded or down-
speeded as appropriate when someone leaves or enters a multipoint conference, or when a call
is put on hold (suspended) or resumed.
The maximum transmit bit rate for each individual call is defined in the Conference
MaxTransmitCallRate setting.
Requires user role: ADMIN
Default value: 6000
USAGE:
xConfiguration Conference MaxTotalTransmitCallRate:
where
: Integer (64..6000)
MaxTotalTransmitCallRate
The maximum transmit call rate (kbps).
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xConfiguration
MaxTotalReceiveCallRate
MaxTotalTransmitCallRate
xCommand

xConfiguration Conference MultiStream Mode

The video system supports multistream video for conferences.
Requires user role: ADMIN
Default value: Off
USAGE:
xConfiguration Conference MultiStream Mode:
where
: Off
Mode
Off: Multistream is disabled.
43
