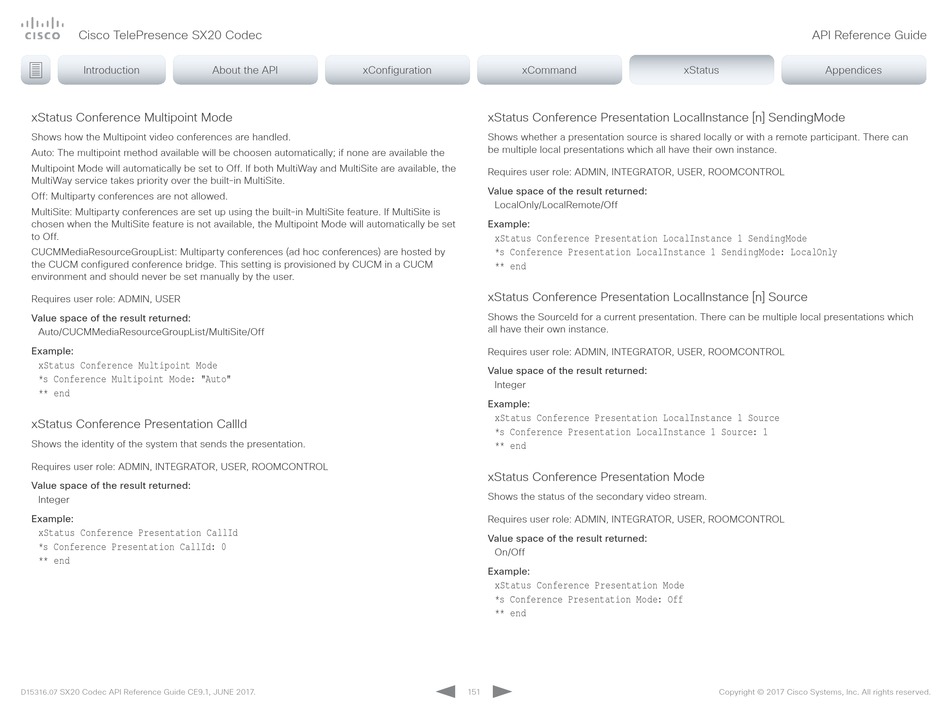

xStatus Conference Multipoint Mode

Shows how the Multipoint video conferences are handled.
Auto: The multipoint method available will be choosen automatically; if none are available the
Multipoint Mode will automatically be set to Off. If both MultiWay and MultiSite are available, the
MultiWay service takes priority over the built-in MultiSite.
Off: Multiparty conferences are not allowed.
MultiSite: Multiparty conferences are set up using the built-in MultiSite feature. If MultiSite is
chosen when the MultiSite feature is not available, the Multipoint Mode will automatically be set
to Off.
CUCMMediaResourceGroupList: Multiparty conferences (ad hoc conferences) are hosted by
the CUCM configured conference bridge. This setting is provisioned by CUCM in a CUCM
environment and should never be set manually by the user.
Requires user role: ADMIN, USER
Value space of the result returned:
Auto/CUCMMediaResourceGroupList/MultiSite/Off
Example:
xStatus Conference Multipoint Mode
*s Conference Multipoint Mode: "Auto"
** end

xStatus Conference Presentation CallId

Shows the identity of the system that sends the presentation.
Requires user role: ADMIN, INTEGRATOR, USER, ROOMCONTROL
Value space of the result returned:
Integer
Example:
xStatus Conference Presentation CallId
*s Conference Presentation CallId: 0
** end
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xCommand

xStatus Conference Presentation LocalInstance [n] SendingMode

Shows whether a presentation source is shared locally or with a remote participant. There can
be multiple local presentations which all have their own instance.
Requires user role: ADMIN, INTEGRATOR, USER, ROOMCONTROL
Value space of the result returned:
LocalOnly/LocalRemote/Off
Example:
xStatus Conference Presentation LocalInstance 1 SendingMode
*s Conference Presentation LocalInstance 1 SendingMode: LocalOnly
** end

xStatus Conference Presentation LocalInstance [n] Source

Shows the SourceId for a current presentation. There can be multiple local presentations which
all have their own instance.
Requires user role: ADMIN, INTEGRATOR, USER, ROOMCONTROL
Value space of the result returned:
Integer
Example:
xStatus Conference Presentation LocalInstance 1 Source
*s Conference Presentation LocalInstance 1 Source: 1
** end

xStatus Conference Presentation Mode

Shows the status of the secondary video stream.
Requires user role: ADMIN, INTEGRATOR, USER, ROOMCONTROL
Value space of the result returned:
On/Off
Example:
xStatus Conference Presentation Mode
*s Conference Presentation Mode: Off
** end
