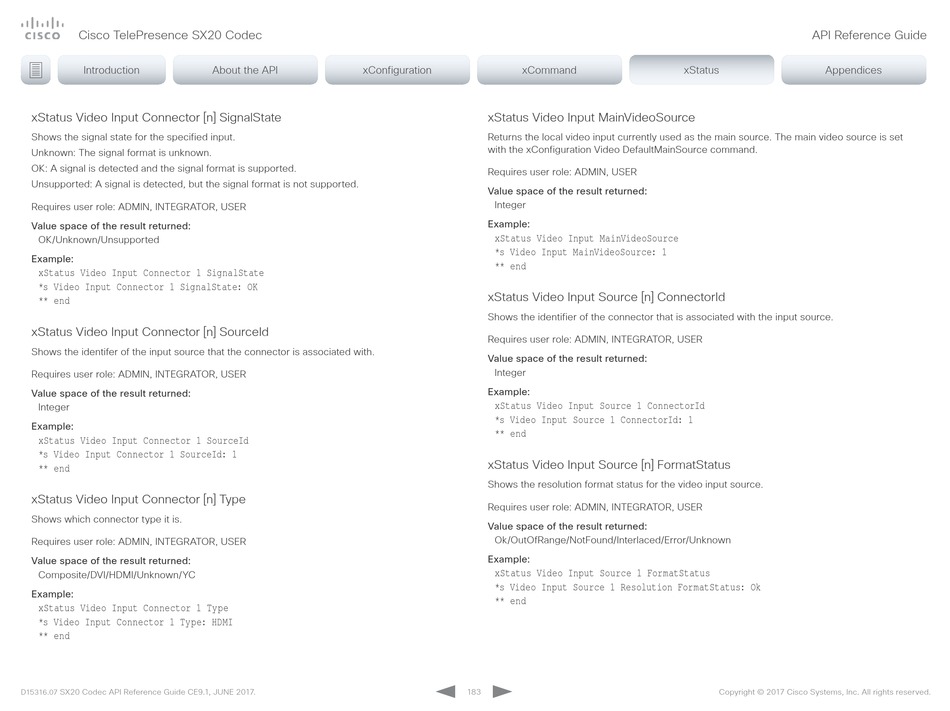

xStatus Video Input Connector [n] SignalState

Shows the signal state for the specified input.
Unknown: The signal format is unknown.
OK: A signal is detected and the signal format is supported.
Unsupported: A signal is detected, but the signal format is not supported.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
OK/Unknown/Unsupported
Example:
xStatus Video Input Connector 1 SignalState
*s Video Input Connector 1 SignalState: OK
** end

xStatus Video Input Connector [n] SourceId

Shows the identifer of the input source that the connector is associated with.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
Integer
Example:
xStatus Video Input Connector 1 SourceId
*s Video Input Connector 1 SourceId: 1
** end

xStatus Video Input Connector [n] Type

Shows which connector type it is.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
Composite/DVI/HDMI/Unknown/YC
Example:
xStatus Video Input Connector 1 Type
*s Video Input Connector 1 Type: HDMI
** end
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xCommand

xStatus Video Input MainVideoSource

Returns the local video input currently used as the main source. The main video source is set
with the xConfiguration Video DefaultMainSource command.
Requires user role: ADMIN, USER
Value space of the result returned:
Integer
Example:
xStatus Video Input MainVideoSource
*s Video Input MainVideoSource: 1
** end

xStatus Video Input Source [n] ConnectorId

Shows the identifier of the connector that is associated with the input source.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
Integer
Example:
xStatus Video Input Source 1 ConnectorId
*s Video Input Source 1 ConnectorId: 1
** end

xStatus Video Input Source [n] FormatStatus

Shows the resolution format status for the video input source.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
Ok/OutOfRange/NotFound/Interlaced/Error/Unknown
Example:
xStatus Video Input Source 1 FormatStatus
*s Video Input Source 1 Resolution FormatStatus: Ok
** end
