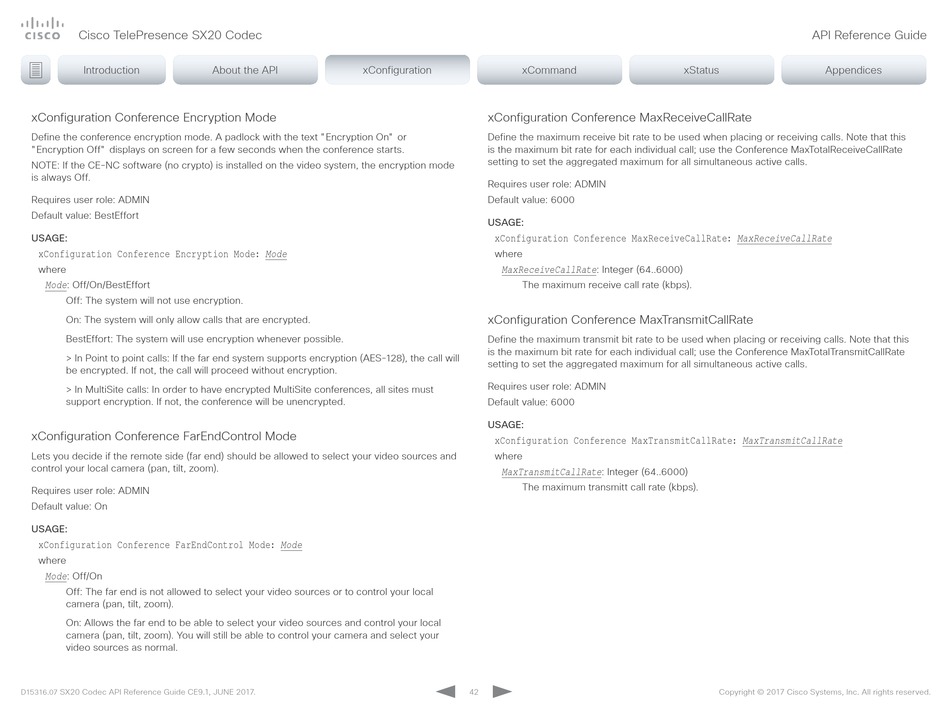

xConfiguration Conference Encryption Mode

Define the conference encryption mode. A padlock with the text "Encryption On" or
"Encryption Off" displays on screen for a few seconds when the conference starts.
NOTE: If the CE-NC software (no crypto) is installed on the video system, the encryption mode
is always Off.
Requires user role: ADMIN
Default value: BestEffort
USAGE:
xConfiguration Conference Encryption Mode:
where
: Off/On/BestEffort
Mode
Off: The system will not use encryption.
On: The system will only allow calls that are encrypted.
BestEffort: The system will use encryption whenever possible.
> In Point to point calls: If the far end system supports encryption (AES-128), the call will
be encrypted. If not, the call will proceed without encryption.
> In MultiSite calls: In order to have encrypted MultiSite conferences, all sites must
support encryption. If not, the conference will be unencrypted.

xConfiguration Conference FarEndControl Mode

Lets you decide if the remote side (far end) should be allowed to select your video sources and
control your local camera (pan, tilt, zoom).
Requires user role: ADMIN
Default value: On
USAGE:
xConfiguration Conference FarEndControl Mode:
where
: Off/On
Mode
Off: The far end is not allowed to select your video sources or to control your local
camera (pan, tilt, zoom).
On: Allows the far end to be able to select your video sources and control your local
camera (pan, tilt, zoom). You will still be able to control your camera and select your
video sources as normal.
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xConfiguration
Mode
Mode
xCommand

xConfiguration Conference MaxReceiveCallRate

Define the maximum receive bit rate to be used when placing or receiving calls. Note that this
is the maximum bit rate for each individual call; use the Conference MaxTotalReceiveCallRate
setting to set the aggregated maximum for all simultaneous active calls.
Requires user role: ADMIN
Default value: 6000
USAGE:
xConfiguration Conference MaxReceiveCallRate:
where
: Integer (64..6000)
MaxReceiveCallRate
The maximum receive call rate (kbps).

xConfiguration Conference MaxTransmitCallRate

Define the maximum transmit bit rate to be used when placing or receiving calls. Note that this
is the maximum bit rate for each individual call; use the Conference MaxTotalTransmitCallRate
setting to set the aggregated maximum for all simultaneous active calls.
Requires user role: ADMIN
Default value: 6000
USAGE:
xConfiguration Conference MaxTransmitCallRate:
where
: Integer (64..6000)
MaxTransmitCallRate
The maximum transmitt call rate (kbps).
