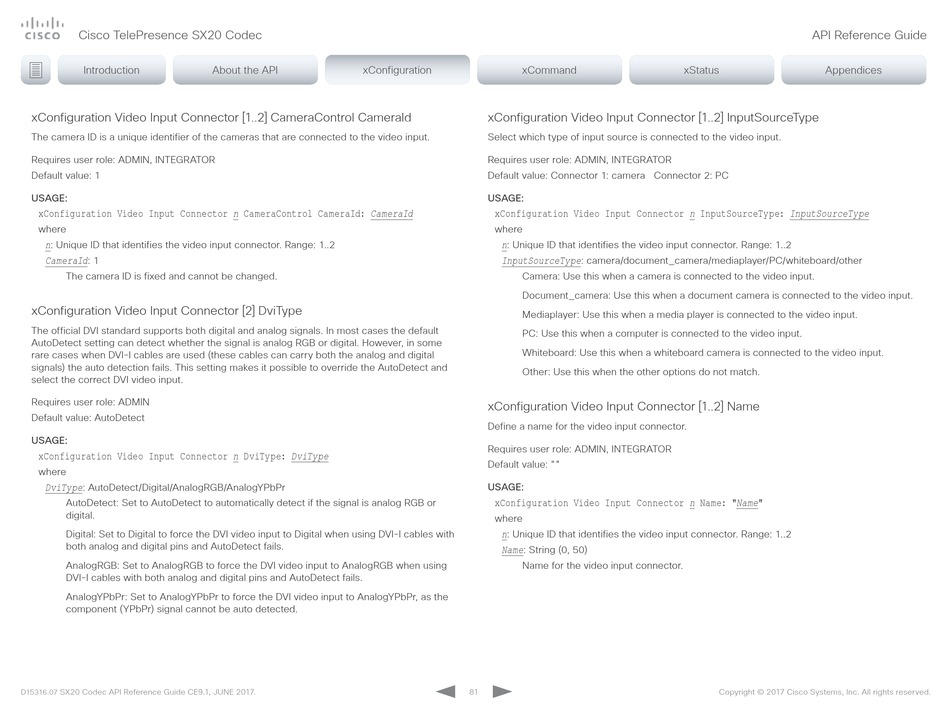

xConfiguration Video Input Connector [1..2] CameraControl CameraId
The camera ID is a unique identifier of the cameras that are connected to the video input.
Requires user role: ADMIN, INTEGRATOR
Default value: 1
USAGE:
xConfiguration Video Input Connector
where
: Unique ID that identifies the video input connector. Range: 1..2
n
: 1
CameraId
The camera ID is fixed and cannot be changed.

xConfiguration Video Input Connector [2] DviType

The official DVI standard supports both digital and analog signals. In most cases the default
AutoDetect setting can detect whether the signal is analog RGB or digital. However, in some
rare cases when DVI-I cables are used (these cables can carry both the analog and digital
signals) the auto detection fails. This setting makes it possible to override the AutoDetect and
select the correct DVI video input.
Requires user role: ADMIN
Default value: AutoDetect
USAGE:
xConfiguration Video Input Connector
where
: AutoDetect/Digital/AnalogRGB/AnalogYPbPr
DviType
AutoDetect: Set to AutoDetect to automatically detect if the signal is analog RGB or
digital.
Digital: Set to Digital to force the DVI video input to Digital when using DVI-I cables with
both analog and digital pins and AutoDetect fails.
AnalogRGB: Set to AnalogRGB to force the DVI video input to AnalogRGB when using
DVI-I cables with both analog and digital pins and AutoDetect fails.
AnalogYPbPr: Set to AnalogYPbPr to force the DVI video input to AnalogYPbPr, as the
component (YPbPr) signal cannot be auto detected.
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xConfiguration
n CameraControl CameraId: CameraId
n DviType: DviType
xCommand
xConfiguration Video Input Connector [1..2] InputSourceType
Select which type of input source is connected to the video input.
Requires user role: ADMIN, INTEGRATOR
Default value: Connector 1: camera Connector 2: PC
USAGE:
xConfiguration Video Input Connector
where
: Unique ID that identifies the video input connector. Range: 1..2
n
: camera/document_camera/mediaplayer/PC/whiteboard/other
InputSourceType
Camera: Use this when a camera is connected to the video input.
Document_camera: Use this when a document camera is connected to the video input.
Mediaplayer: Use this when a media player is connected to the video input.
PC: Use this when a computer is connected to the video input.
Whiteboard: Use this when a whiteboard camera is connected to the video input.
Other: Use this when the other options do not match.
xConfiguration Video Input Connector [1..2] Name
Define a name for the video input connector.
Requires user role: ADMIN, INTEGRATOR
Default value: ""
USAGE:
xConfiguration Video Input Connector
where
: Unique ID that identifies the video input connector. Range: 1..2
n
: String (0, 50)
Name
Name for the video input connector.
81
API Reference Guide
xStatus Appendices
n InputSourceType: InputSourceType
n Name: "Name"
