Introduction

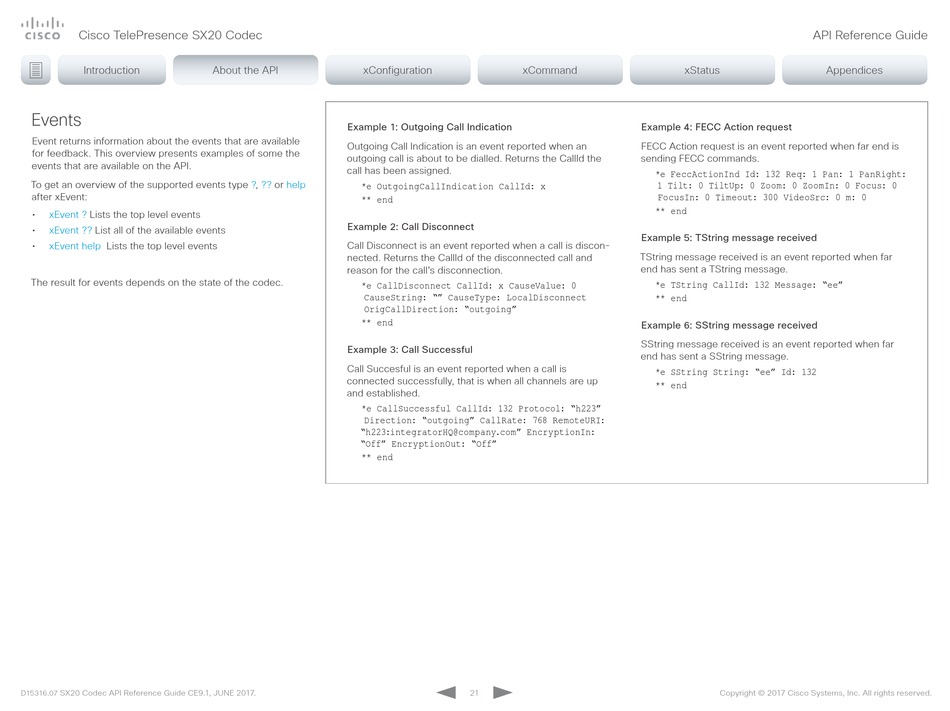

Events

Event returns information about the events that are available
for feedback. This overview presents examples of some the
events that are available on the API.
To get an overview of the supported events type ?,
after xEvent:
• xEvent ? Lists the top level events
• xEvent ?? List all of the available events
• xEvent help Lists the top level events
The result for events depends on the state of the codec.
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API About the API xConfiguration
Example 1: Outgoing Call Indication
Outgoing Call Indication is an event reported when an
outgoing call is about to be dialled. Returns the CallId the
call has been assigned.
?? or help
*e OutgoingCallIndication CallId: x
** end
Example 2: Call Disconnect
Call Disconnect is an event reported when a call is discon-
nected. Returns the CallId of the disconnected call and
reason for the call's disconnection.
*e CallDisconnect CallId: x CauseValue: 0
CauseString: "" CauseType: LocalDisconnect
OrigCallDirection: "outgoing"
** end
Example 3: Call Successful
Call Succesful is an event reported when a call is
connected successfully, that is when all channels are up
and established.
*e CallSuccessful CallId: 132 Protocol: "h223"
Direction: "outgoing" CallRate: 768 RemoteURI:
"h223:integratorHQ@company.com" EncryptionIn:
"Off" EncryptionOut: "Off"
** end
xCommand
Example 4: FECC Action request
FECC Action request is an event reported when far end is
sending FECC commands.
Example 5: TString message received
TString message received is an event reported when far
end has sent a TString message.
Example 6: SString message received
SString message received is an event reported when far
end has sent a SString message.
21
API Reference Guide
xStatus Appendices
*e FeccActionInd Id: 132 Req: 1 Pan: 1 PanRight:
1 Tilt: 0 TiltUp: 0 Zoom: 0 ZoomIn: 0 Focus: 0
FocusIn: 0 Timeout: 300 VideoSrc: 0 m: 0
** end
*e TString CallId: 132 Message: "ee"
** end
*e SString String: "ee" Id: 132
** end
