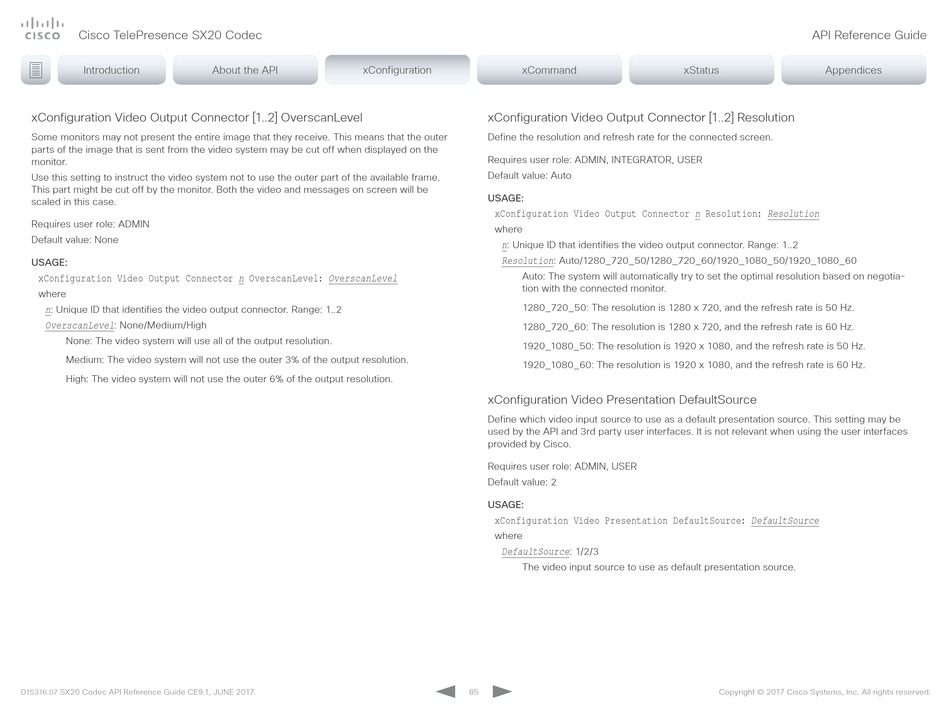

xConfiguration Video Output Connector [1..2] OverscanLevel

Some monitors may not present the entire image that they receive. This means that the outer
parts of the image that is sent from the video system may be cut off when displayed on the
monitor.
Use this setting to instruct the video system not to use the outer part of the available frame.
This part might be cut off by the monitor. Both the video and messages on screen will be
scaled in this case.
Requires user role: ADMIN
Default value: None
USAGE:
xConfiguration Video Output Connector
where
: Unique ID that identifies the video output connector. Range: 1..2
n
: None/Medium/High
OverscanLevel
None: The video system will use all of the output resolution.
Medium: The video system will not use the outer 3% of the output resolution.
High: The video system will not use the outer 6% of the output resolution.
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xConfiguration
n OverscanLevel: OverscanLevel
xCommand
xConfiguration Video Output Connector [1..2] Resolution
Define the resolution and refresh rate for the connected screen.
Requires user role: ADMIN, INTEGRATOR, USER
Default value: Auto
USAGE:
xConfiguration Video Output Connector
where
: Unique ID that identifies the video output connector. Range: 1..2
n
: Auto/1280_720_50/1280_720_60/1920_1080_50/1920_1080_60
Resolution
Auto: The system will automatically try to set the optimal resolution based on negotia-
tion with the connected monitor.
1280_720_50: The resolution is 1280 x 720, and the refresh rate is 50 Hz.
1280_720_60: The resolution is 1280 x 720, and the refresh rate is 60 Hz.
1920_1080_50: The resolution is 1920 x 1080, and the refresh rate is 50 Hz.
1920_1080_60: The resolution is 1920 x 1080, and the refresh rate is 60 Hz.

xConfiguration Video Presentation DefaultSource

Define which video input source to use as a default presentation source. This setting may be
used by the API and 3rd party user interfaces. It is not relevant when using the user interfaces
provided by Cisco.
Requires user role: ADMIN, USER
Default value: 2
USAGE:
xConfiguration Video Presentation DefaultSource:
where
: 1/2/3
DefaultSource
The video input source to use as default presentation source.
